LIFTING CAPACITIES
222
WEAM009300

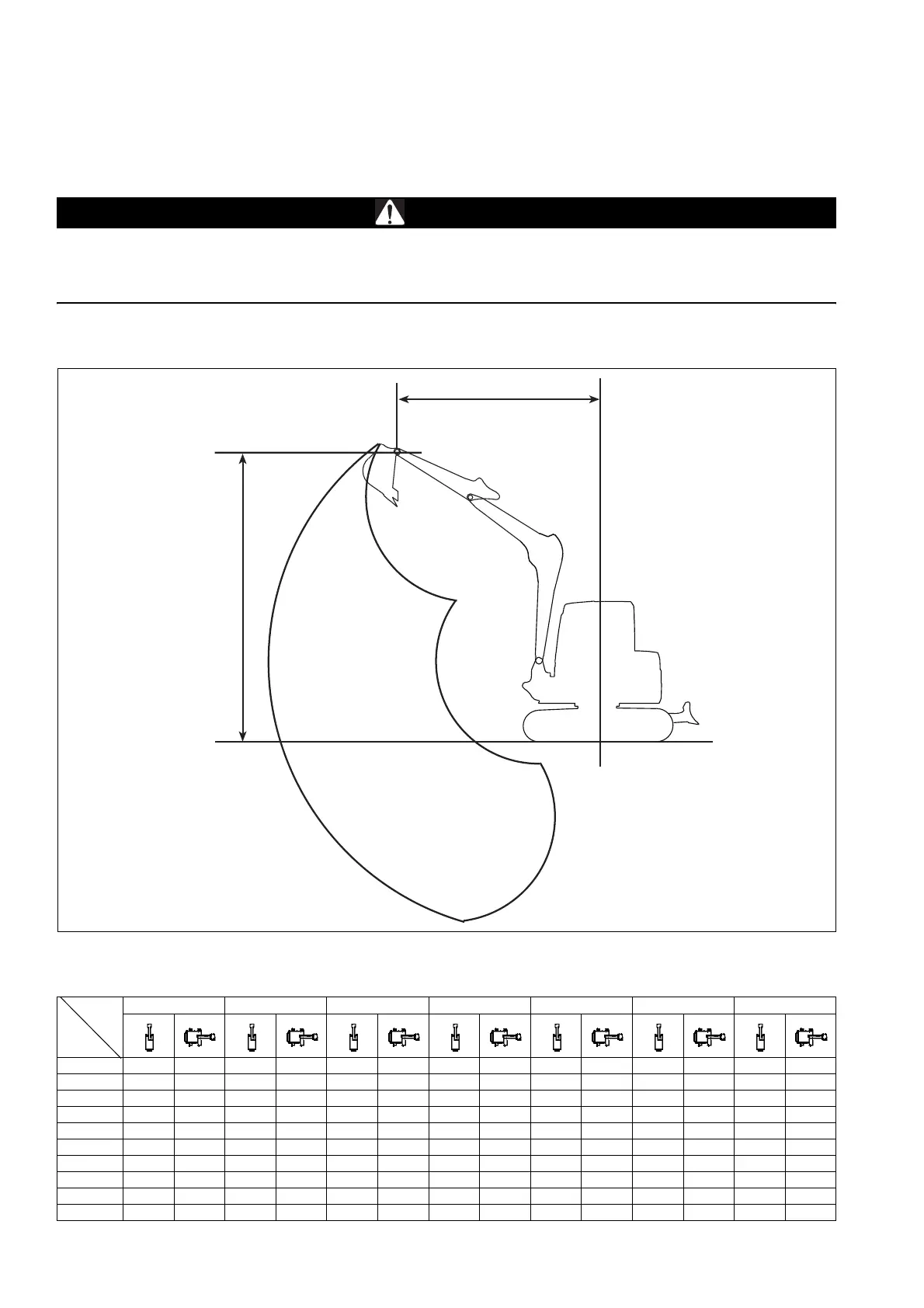

5.2 LIFTING CAPACITIES
5.2.1 LIFTING CAPACITIES
DANGER
q According to the harmonized standard EN474-5 (§ 4.1.7.5), the machine cannot lift weights exceeding
1000 kg, unless it is provided with appropriate equipment.
q Carry out lifting operations only with the machine positioned on firm and flat ground.
NOTE
q The load does not exceed 87% of the hydraulic lifting capacity or 78% of the tipping limit.
* Load limited by the hydraulic lifting capacity and not by the tipping limit.
ROPS CANOPY + STANDARD ARM + STANDARD COUNTERWEIGHT + LOWERED BLADE Unit: kg
1 m1.5 m2 m2.5 m3 m3.5 mMax.
3.0 m
----------
2.5 m
*220 *220 - - - - - - *229 *229
2.0 m
*225 *225 *218 200 - - - - *220 179
1.5 m
*276 *276 *235 198 - - - - *219 154
1.0 m
*353 267 *266 192 *222 143 - - *221 143
0.5 m
*411 255 *292 186 *227 141 - - *226 140
0 m
*661 374 *424 249 *299 182 - - - - *231 147
-0.5 m
*970 728 *579 377 *389 248 *270 182 - - - - *234 167
-1.0 m
*698 *698 *434 385 *293 253 - - - - - - *227 215
-1.5 m
----------
A
B
RKA01540
B-
A
