INSTRUMENTS AND CONTROLS
62
WEAM009300
3.2
INSTRUMENTS AND CONTROLS
The following p
aragraphs describe the d
evices that ar
e necessa
ry for correct operation of the machine.
T
o perform the required operatio
ns correctly and safely
,
it is import
ant to underst
and the equipment op
erating
methods and th
e meaning of the information displayed.

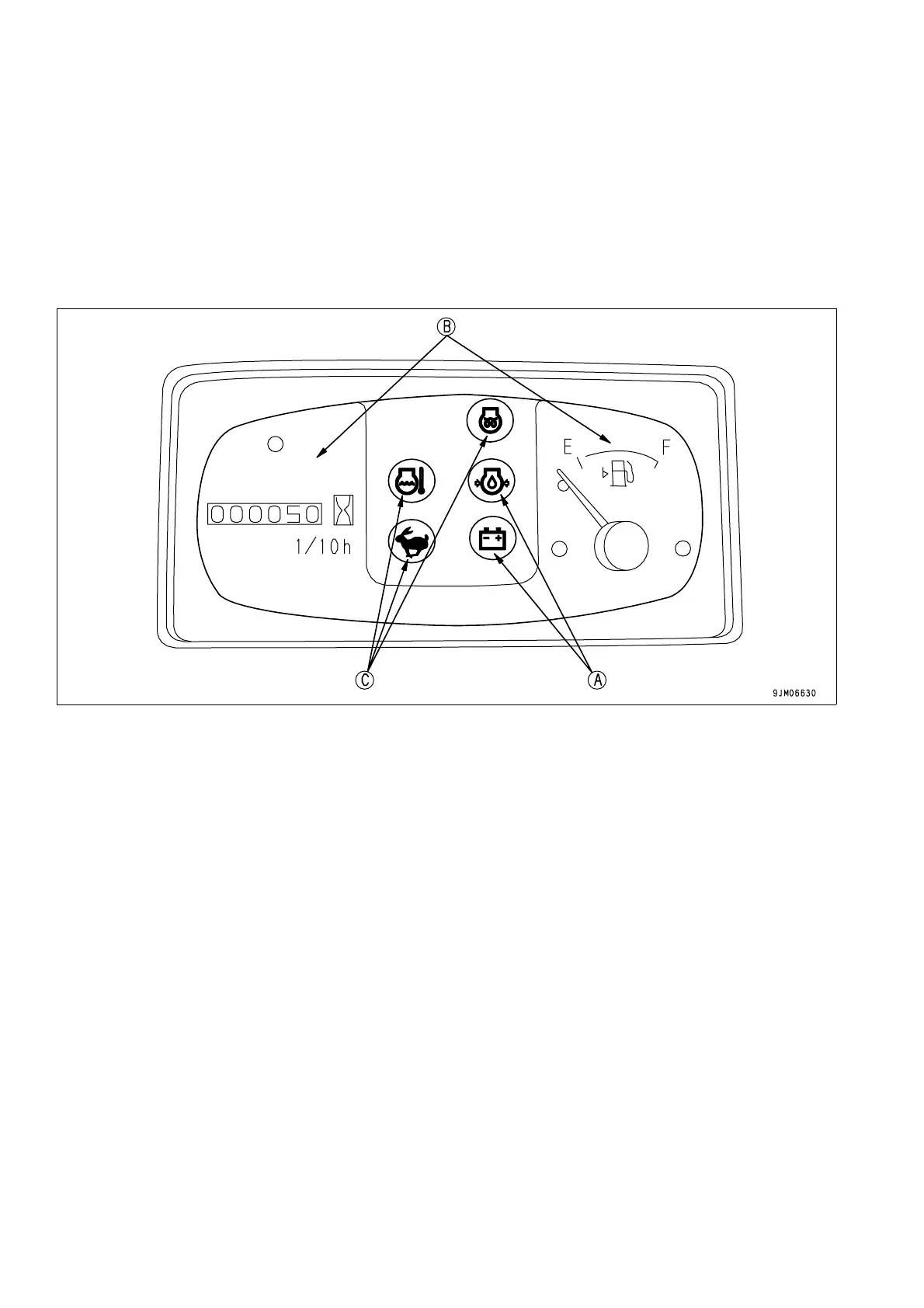

3.2.1
W
ARNING LIGHTS AND GAUGES
(A):
(B)
Emergency warning lights
Gauges
(C)
W
arning lights
63
65
