INSTRUMENTS AND CONTROLS
84
WEAM009300

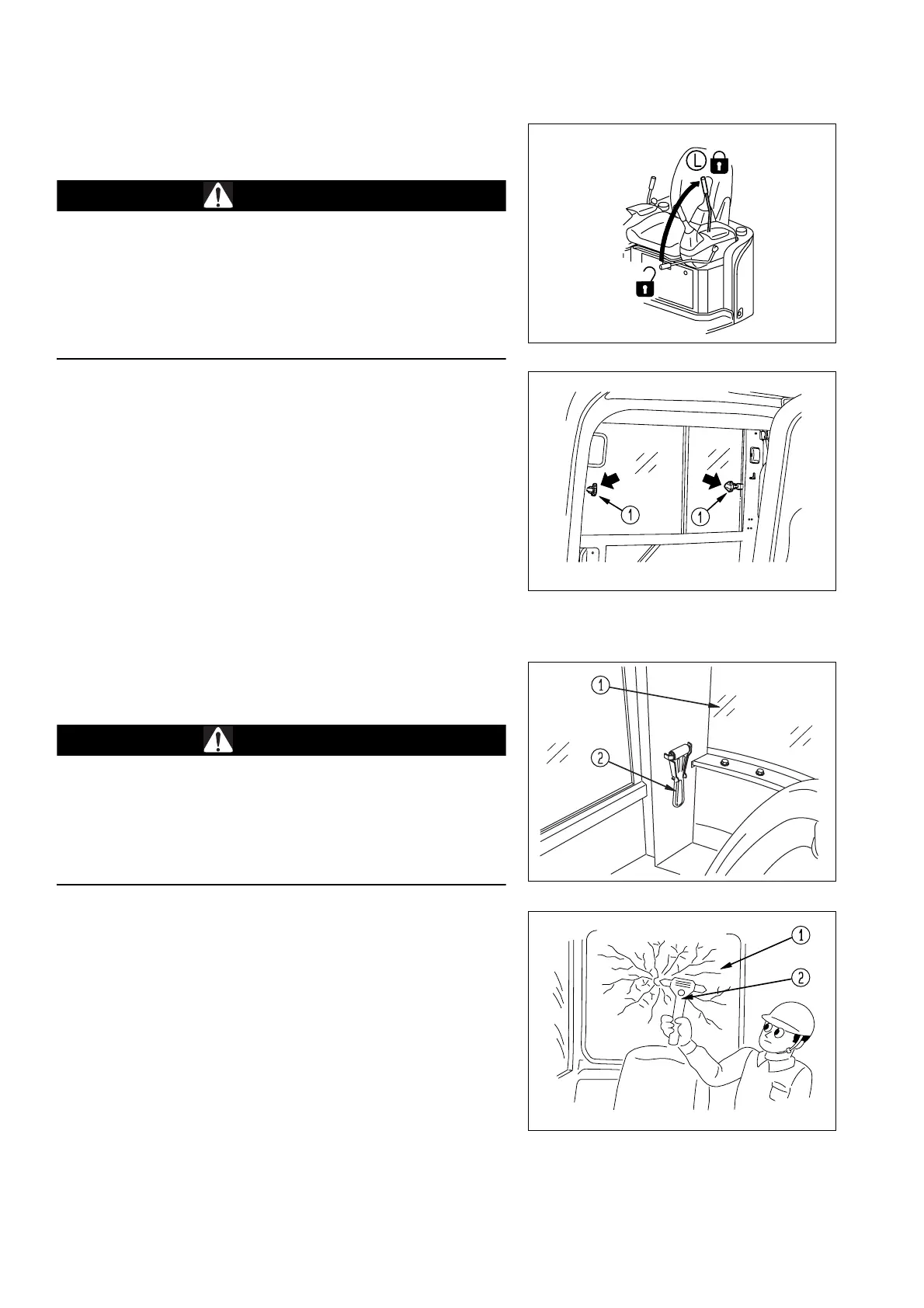

3.2.4.3 SIDE SLIDING WINDOW
(machines with cab)
WARNING
q When opening or closing the side window, always shift the
safety lever to position “lock” (L). If the control levers are
not locked and are inadvertently operated, there is the risk
of serious accidents.
q Keep hands and head must remain inside the cab window
during translation or when digging operations are carried
out.
The cab right side sliding window is designed to be partially open.
To open or close the window, release and draw the handle (1) to
slide the window.
3.2.4.4 EMERGENCY EXIT HAMMER
(machines with cab)
WARNING
q When it is necessary to break the window with the hammer,
pay attention not to get injured by glass chips.
q Before leaving the operator cab, remove any glass
fragments from the window edges and take care not to
injure yourself. Be careful not to slip on the glass
fragments scattered on the ground.
On machines equipped with cab, the emergency exit is marked
on the rear glass (1).
In case of emergency, exit the cab breaking the glass with the
hammer (2).
IMPORTANT
q The hammer should always be in the cab, fixed to the right
side upright.
RKA22670
RKA23310
RKA22700
RKA22040
