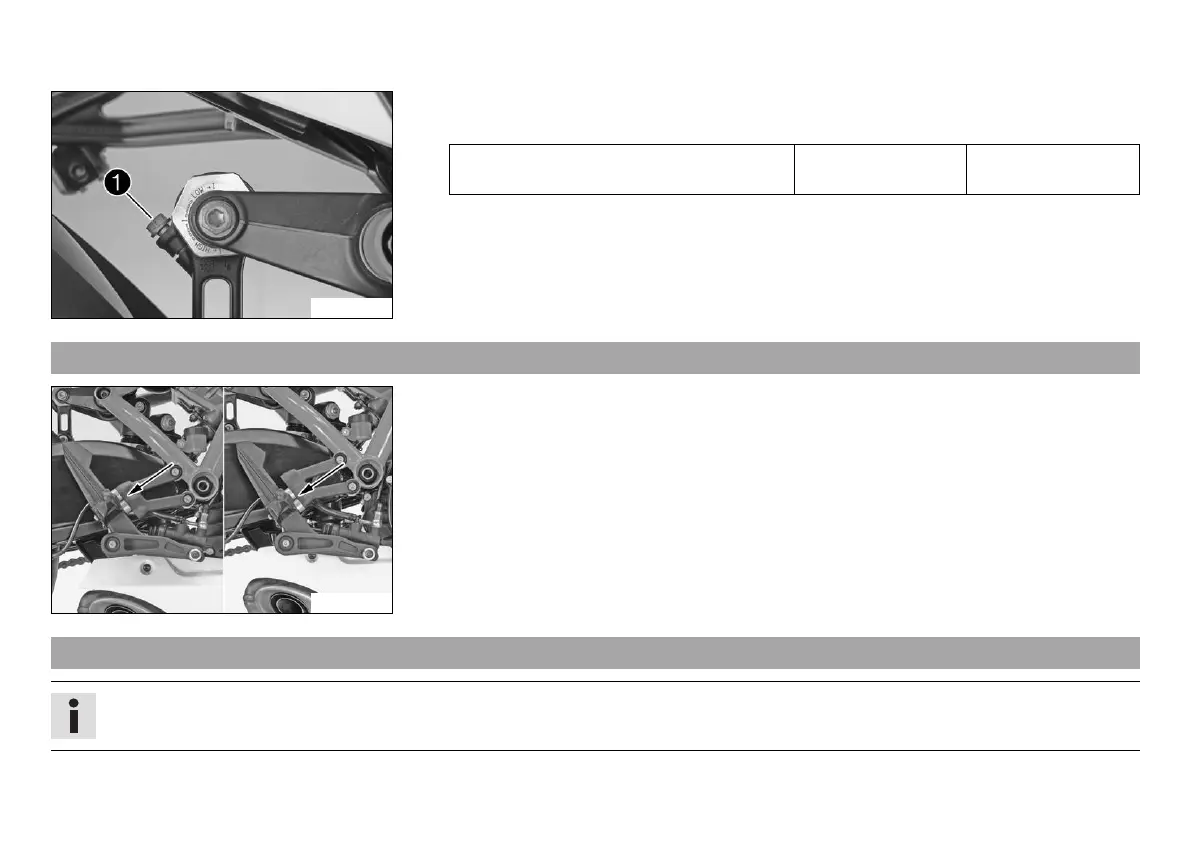

10 TUNING THE CHASSIS 146
100698-10
–
Tighten screw
.
Guideline
Screw, clamp, eccentric shaft of deflec-
tor
M8 18 Nm
(13.3 lbf ft)
10.15 Footrest position
100699-10
The adjustable footrest system enables an individual setting of the footrest height and an
individual adjustment of the controls.
The lower footrest position enables a more comfortable knee angle, the upper footrest posi-
tion a sporting sitting position and more forward-leaning freedom for use in racing.
10.16 Adjusting the footrest position
Info
The footrest position must be identical on the left and the right.
