10 TUNING THE CHASSIS 150

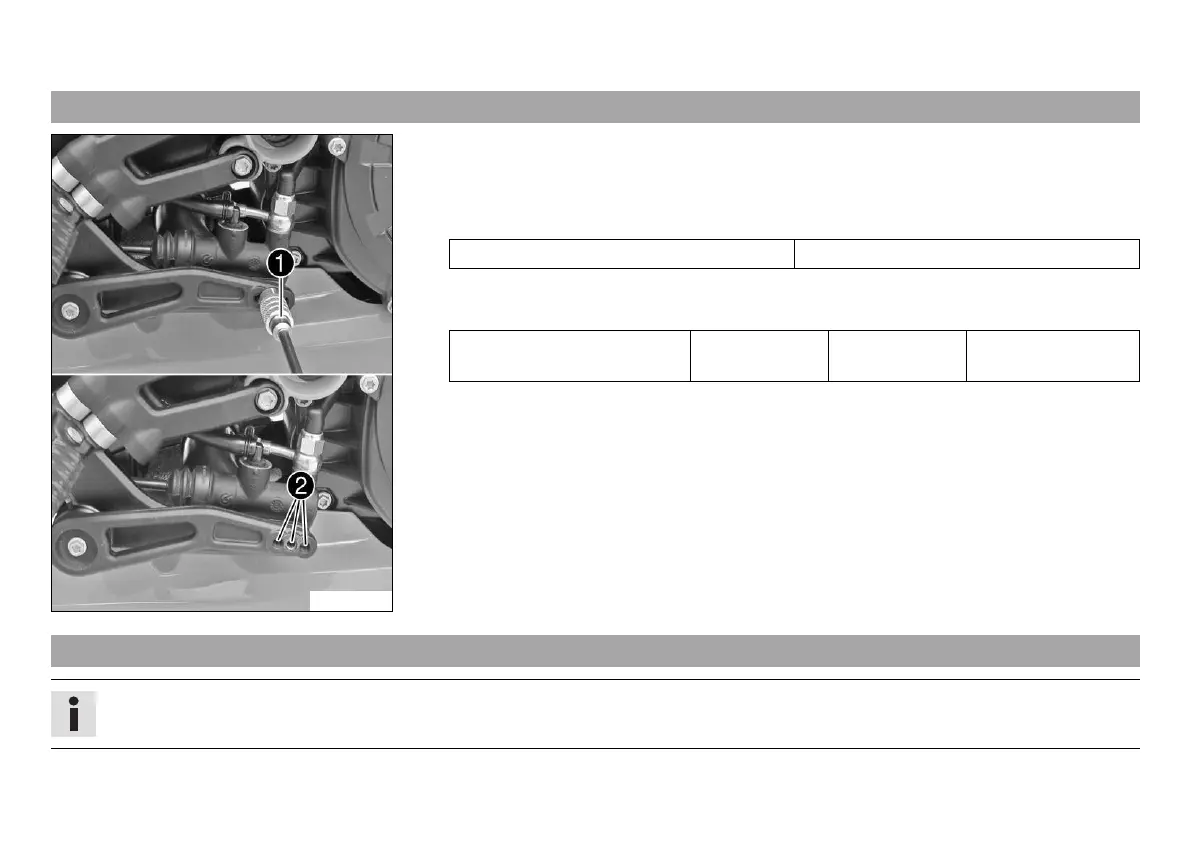

10.18 Adjusting the foot brake lever stub

B01315-10

–

Remove the screw



with the foot brake lever stub.

–

Position the foot brake lever stub with the screw in one of the holes



according to

the desired lever length.

Guideline

Standard Central hole

– Tighten the screw.

Guideline

Bolt, foot brake lever stub M6 10 Nm

(7.4 lbf ft)

Loctite

243™

10.19 Adjusting shift lever

Info

The footrest system offers many ways of adjusting the shift lever to your riding style and requirements.
