10 TUNING THE CHASSIS 155
B01316-10

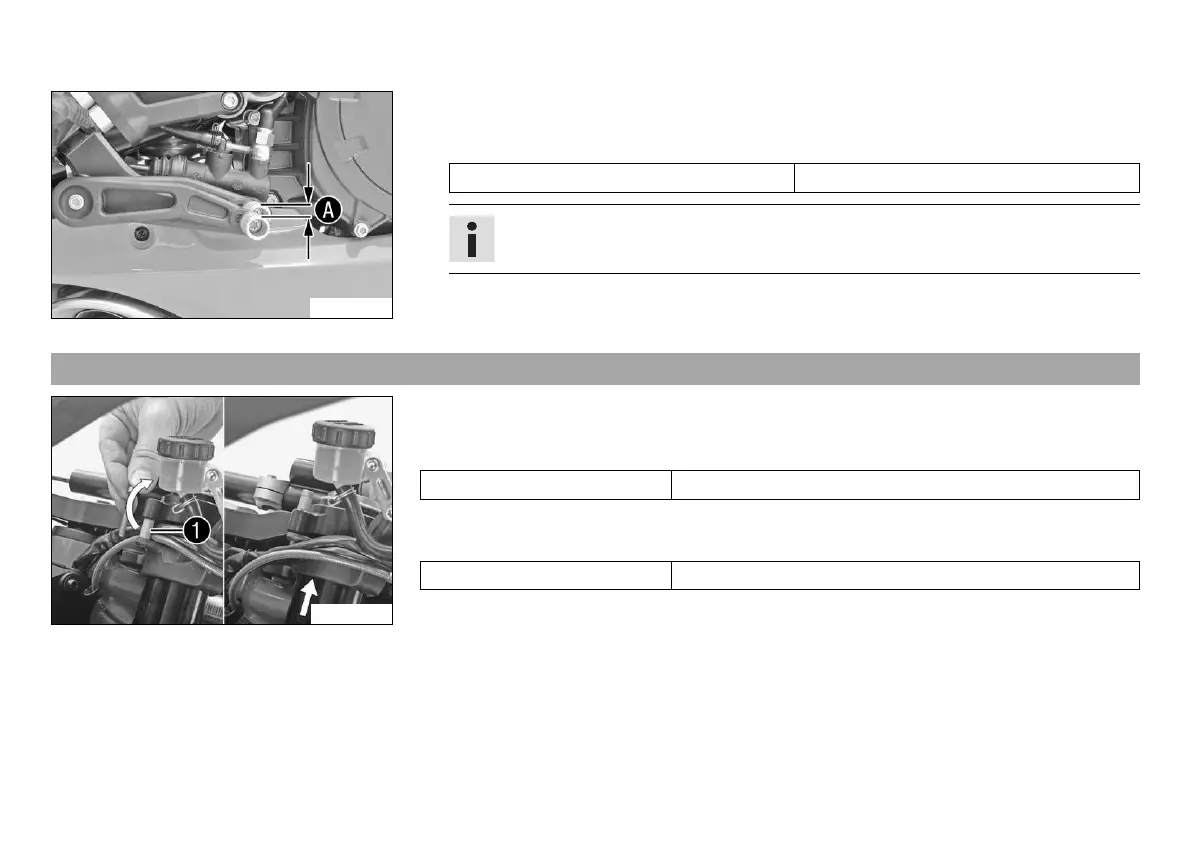

– Move the foot brake lever back and forth between the end stop and the contact to the
foot brake cylinder piston and check free travel
.
Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
Info
The piston rod should not move in the process.
» If the free travel does not meet specifications:
– Adjust the free travel.
10.22 Handlebar height/position
100755-10
Handlebar height
By removing or inserting distance sleeve
, you can set the handlebar height to two differ-
ent positions.
Length, distance sleeve 15 mm (0.59 in)
With distance sleeves, the handlebar stub is positioned low for sports use. Removing the
distance sleeves gives a more upright sitting position.
Standard Low position with distance sleeve
