SERVICE
WORK
ON
THE
ENGINE
232
B01335-10
–
Position
the
left
exhaust
cover
.
–

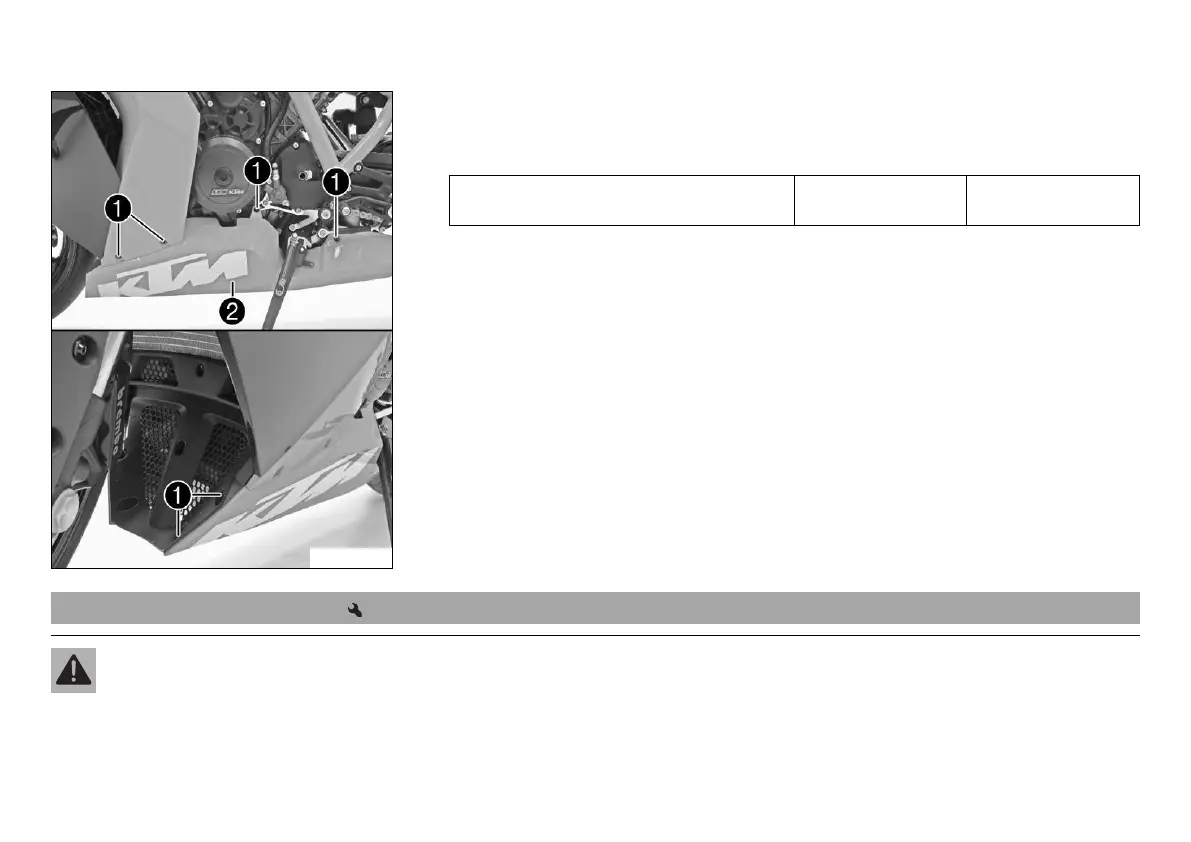

Mount
and
tighten
screws
.
Guideline
Screw,
painted
trim
parts
M5
3.5
Nm
(2.58
lbf
ft)
17.4
Removing
the
oil
filter
Warning
Danger
of
scalding
Engine
oil
and
gear
oil
get
very
hot
when
the
motorcycle
is
ridden.
–
Wear
appropriate
protective
clothing
and
safety
glove
s.
In
case
of
burns,
rinse
immediately
with
lukewarm
water.
233
235
