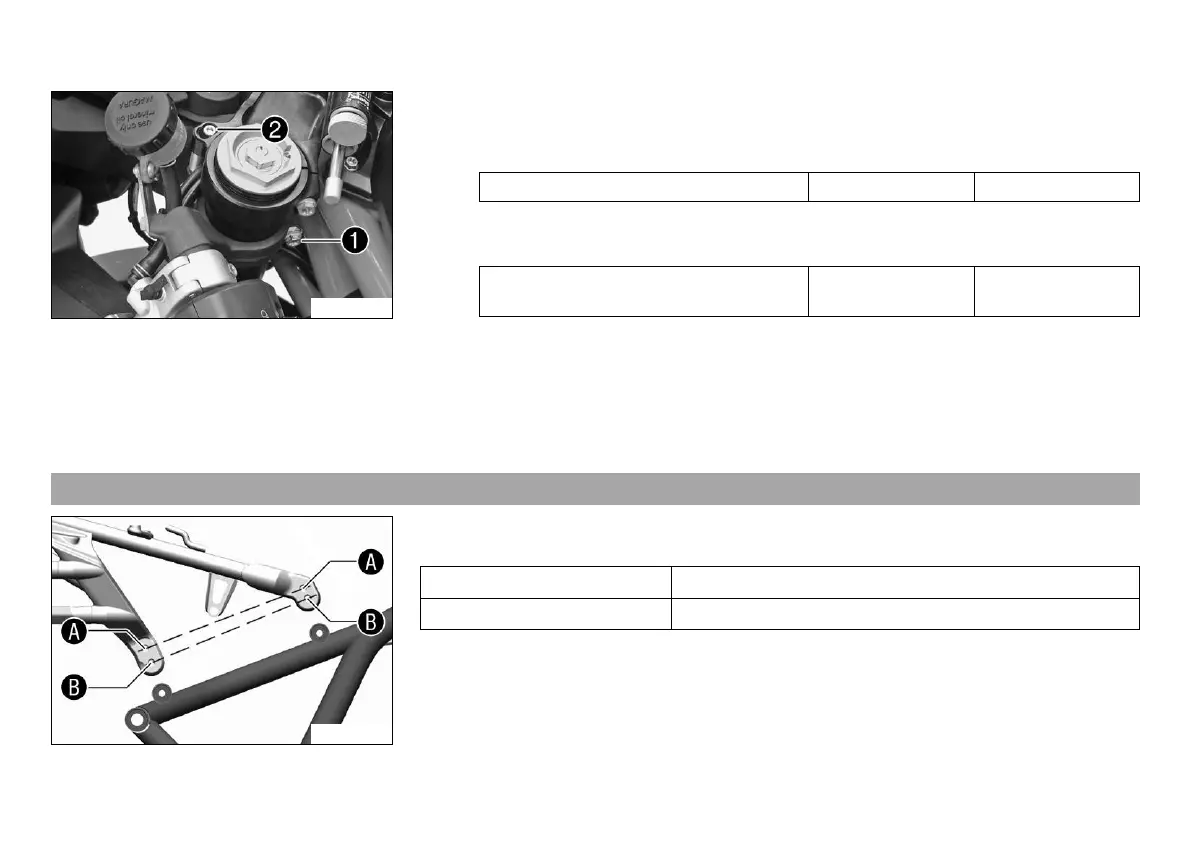

10 TUNING THE CHASSIS 161
600986-11
– Position the distance sleeve.
–
Mount and tighten screw
.
Guideline
Remaining frame bolts M5 5 Nm (3.7 lbf ft)
–
Tighten screw
.
Guideline
Screw, handlebar stub M8 20 Nm
(14.8 lbf ft)
– Repeat the adjustments on the other handlebar stub.
– Carefully move the handlebar to and fro over the entire steering range.
» If a component restricts the freedom of movement of the steering or comes into
contact with the trim:
– Establish freedom of movement and reposition the component.
10.24 Subframe position
400439-10
The subframe can be mounted in two different positions. This enables the seat to be posi-
tioned at an ergonomic height.
Seat height
805 mm (31.69 in)
Seat height
(standard)
825 mm (32.48 in)
