14 ELECTRICAL SYSTEM 204
14.2 Installing the battery
B01329-12
Main work

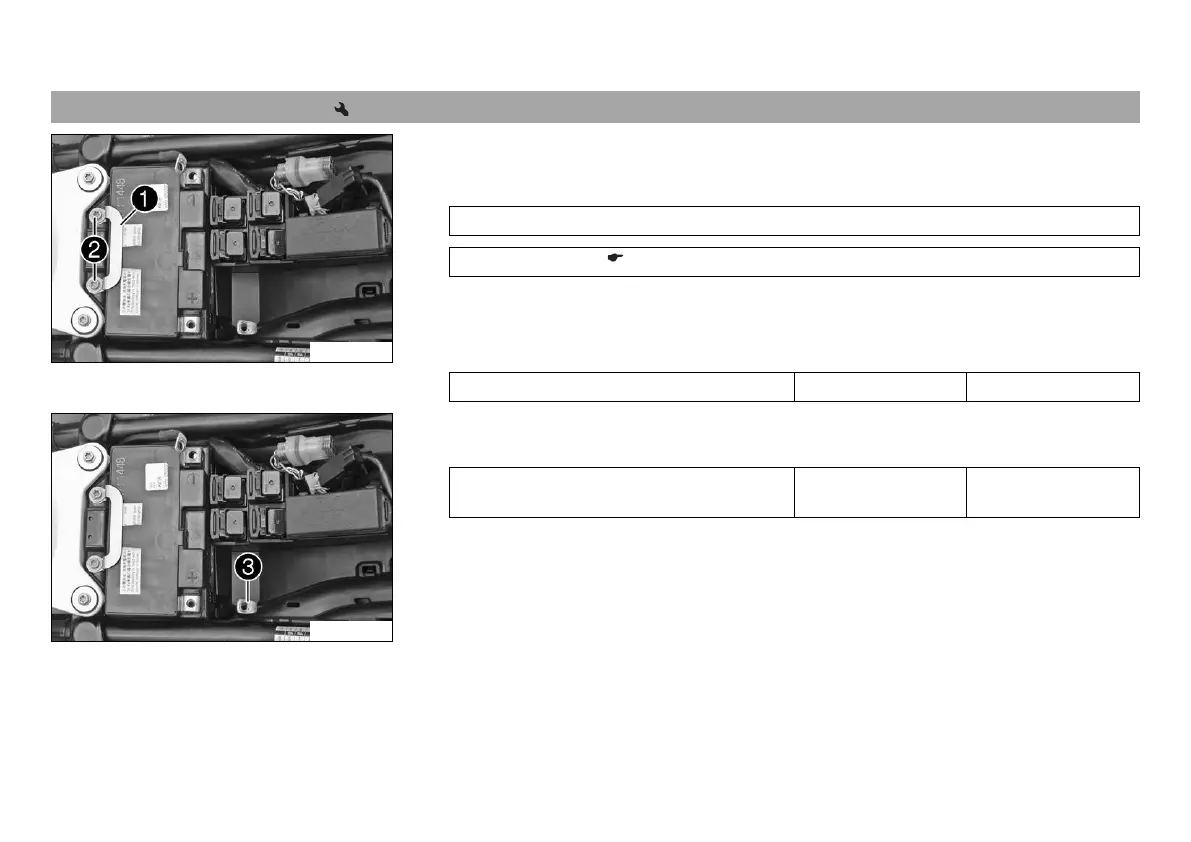

– Position the battery in the battery compartment.
Guideline
The poles of the battery must face the rear of the vehicle.
Battery (YTZ14S) ( p. 261)
–
Position holder
.
–
Mount and tighten screws
.
Guideline
Remaining chassis screws M6 10 Nm (7.4 lbf ft)
B01329-13
–
Position the positive cable
and mount and tighten the screw.
Guideline
Screw, battery terminal M6 4.5 Nm
(3.32 lbf ft)
– Mount the positive terminal cover.
