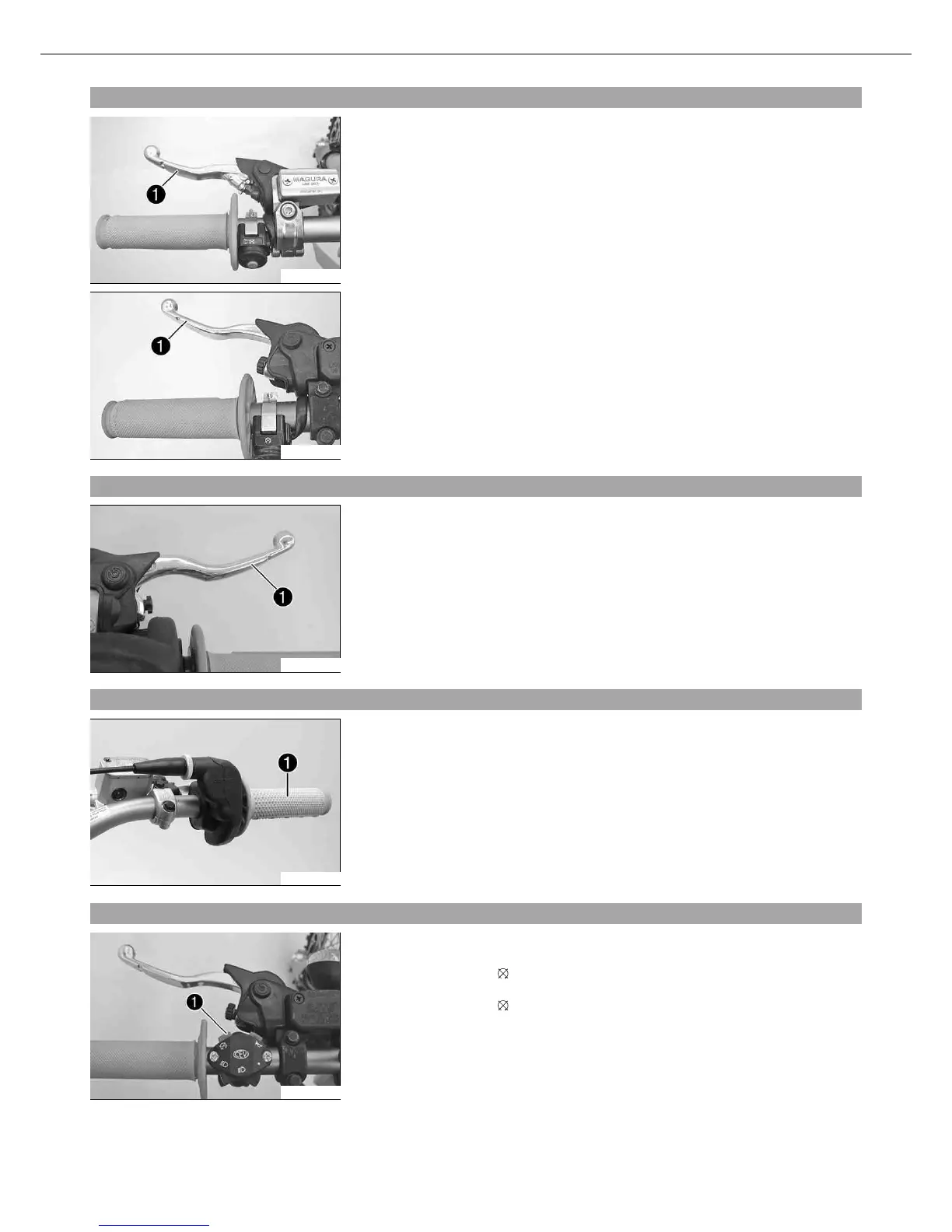

5.1Clutch lever
B00001-10
(All 125/150/200 models)
The clutch lever is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
B00009-10
(All 250/300 models)
The clutch lever is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
5.2Hand brake lever
400196-10
Hand brake lever is located on the right side of the handlebar.
The hand brake lever is used to activate the front brake.
5.3Throttle grip
B00060-10
Throttle grip is fitted on the right side of the handlebar.
5.4Short circuit button (EXC, EXC SIX DAYS)
B00078-10
Short circuit button is fitted on the left side of the handlebar.
Possible states
• Short circuit button in basic position – In this position, the ignition circuit is
closed, and the engine can be started.
• Short circuit button pressed – In this position, the ignition circuit is interrupted,
a running engine stops, and a non-running engine will not start.
