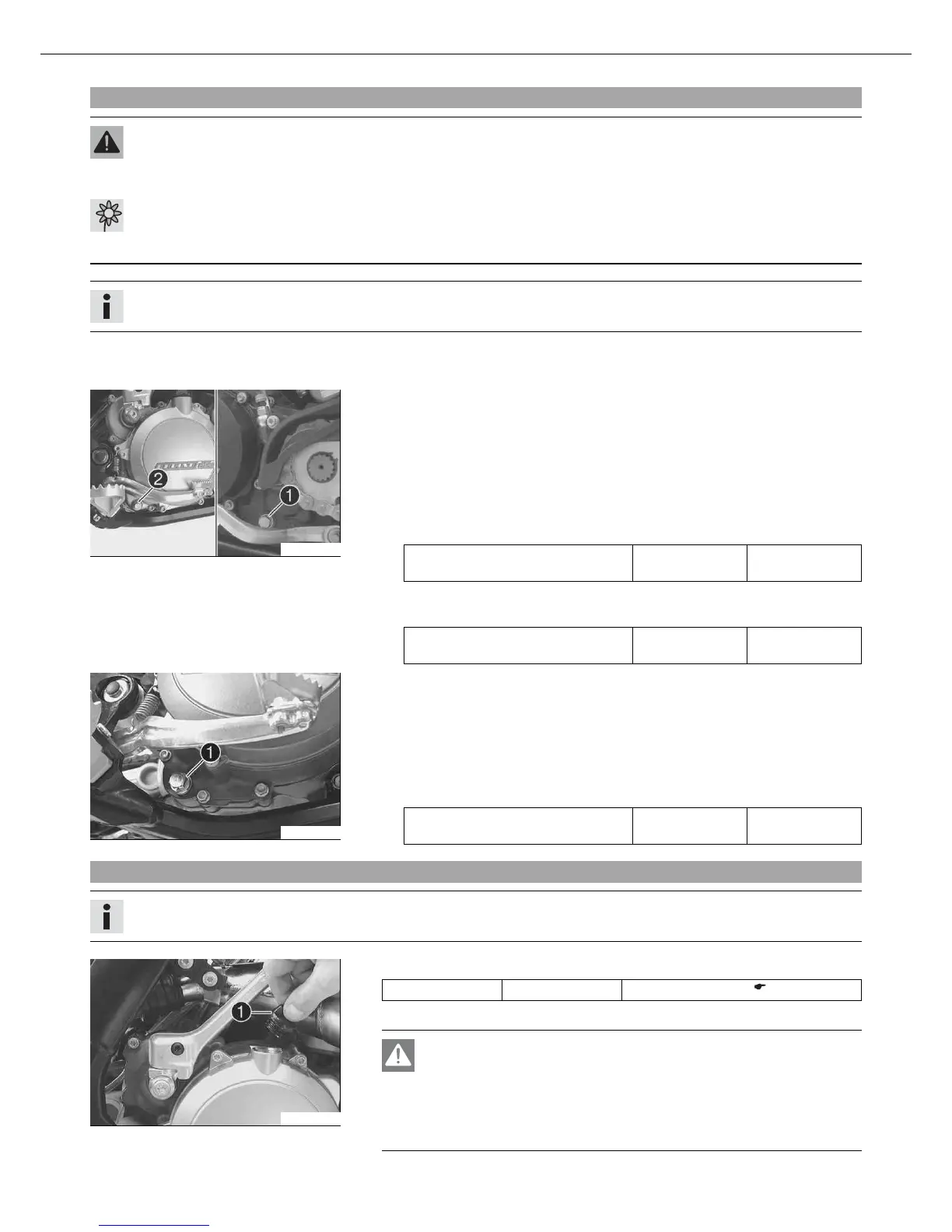

MAINTENANCE WORK ON CHASSIS AND ENGINE 89
11.108Draining the gear oil x
Warning
Danger of scalding Engine oil and gear oil get very hot when the motorcycle is ridden.
– Wear appropriate protective clothing and safety gloves. In case of burns, rinse immediately with lukewarm water.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Drain the gear oil only when the engine is warm.
– Place the motorcycle on a level surface.
– Place a suitable container under the engine.
B00051-10
(All 125/150/200 models)
– Remove the gear oil drain plug with magnet .
– Remove the gear oil drain plug .
– Completely drain the gear oil.
– Clean the gear oil drain plug thoroughly.
– Clean the sealing area on the engine.
– Mount the gear oil drain plug with magnet  and the seal ring and tighten it.
Guideline
Gear oil drain plug with magnet M12x1.5 20 Nm
(14.8 lbf ft)
– Mount gear oil drain plug  with the seal ring and tighten it.
Guideline
Gear oil drain plug M10x1 15 Nm
(11.1 lbf ft)
B00052-10
(All 250/300 models)
– Remove the gear oil drain plug with magnet .
– Completely drain the gear oil.
– Thoroughly clean the gear oil drain plug with a magnet.
– Clean the sealing area on the engine.
– Mount the gear oil drain plug with magnet  and the seal ring and tighten it.
Guideline
Gear oil drain plug with magnet M12x1.5 20 Nm
(14.8 lbf ft)
11.109Refilling with gear oil x
Info
Too little gear oil or poor-quality oil results in premature wear of the transmission.
B00053-10
– Remove screw cap  and fill up gear oil.
Gear oil 0.70 l (0.74 qt.) Engine oil (15W/50) ( p. 130)
– Mount and tighten the screw cap.
Danger
Danger of poisoning Exhaust gases are poisonous and inhaling them may
result in unconsciousness and/or death.
– When running the engine, always make sure there is sufficient ventila-
tion, and do not start or run the engine in an enclosed space without an
effective exhaust extraction system.
