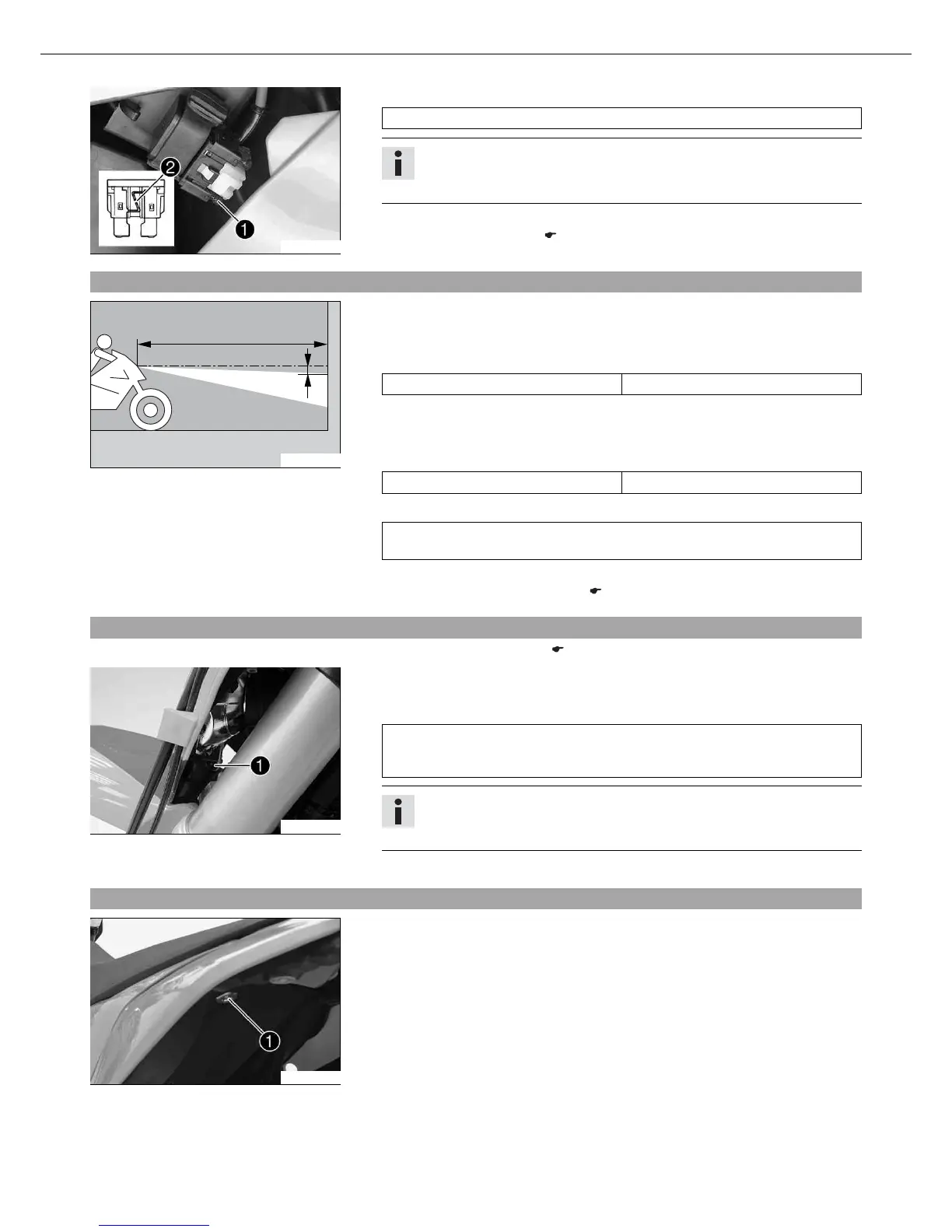

MAINTENANCE WORK ON CHASSIS AND ENGINE 74
400273-10
– Refit the fuse.
Fuse (58011109110)
Info
A reserve fuse  is located in the starter relay.
Replace a burned-out fuse  only by an equivalent fuse.
– Replace the protection cover.
– Install the air filter box lid. ( p. 81)
11.76Checking the headlight setting (EXC, EXC SIX DAYS)
0
0
AA
0
0
BB
400726-10
– On a light-colored wall behind a horizontal area, make a mark as high as the center
of the headlight.
– Make another mark a distance  under the first mark.
Guideline
Distance  5 cm (2 in)
– Position the motorcycle vertically a distance  away from the wall. The rider, wear-
ing a full set of protective clothing, sits on the motorcycle in the normal sitting
position (feet on the footrests).
Guideline
Distance  5 m (16 ft)
– Switch on the low beam. Check the headlight setting.
The boundary between light and dark must be exactly on the lower mark for an
operational motorcycle with a rider.
» If the boundary between light and dark does not meet specifications:
– Adjust the headlight range. ( p. 74)
11.77Adjusting the headlight range (EXC, EXC SIX DAYS)
– Check the headlight setting. ( p. 74)
301251-10
– Loosen screw .
– Adjust the headlight range by moving the headlight.
Guideline
The boundary between light and dark must be exactly on the lower mark for an
operational motorcycle with a rider (to prepare the mark, see: Checking the head-
light setting).
Info
The headlight range may need to be corrected if luggage is carried on the
vehicle.
– Tighten screw .
11.78Removing the seat
500080-10
– Remove screw . Lift up the seat at the rear, pull it back and then remove from
above.
