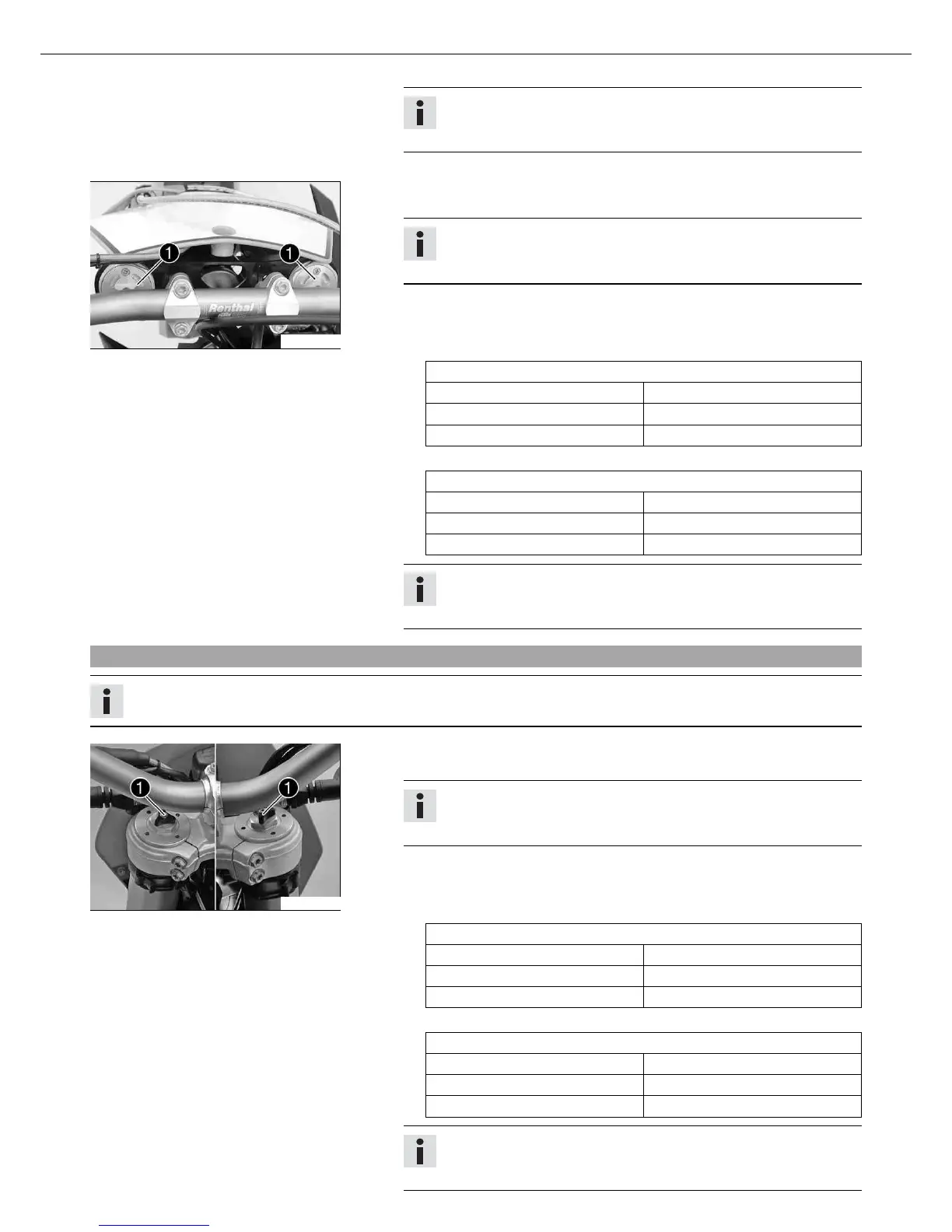

MAINTENANCE WORK ON CHASSIS AND ENGINE 45
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
– Mount protection covers .
B00018-11
(XC)
– Turn adjusting screws  clockwise all the way.
Info
Adjusting screws  are located at the top end of the fork legs.
Make the same adjustment on both fork legs.
– Turn back counterclockwise by the number of clicks corresponding to the fork
type.
Guideline
(150 XC USA)
Compression damping
Comfort 14 clicks
Standard 12 clicks
Sport 10 clicks
(250/300 XC)
Compression damping
Comfort 14 clicks
Standard 12 clicks
Sport 10 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
11.17Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
800017-10
(EXC, EXC SIX DAYS, XC-W)
– Turn adjusting screws  clockwise all the way.
Info
Adjusting screws  are located at the top end of the fork legs.
Make the same adjustment on both fork legs.
– Turn back counterclockwise by the number of clicks corresponding to the fork
type.
Guideline
(All 125/200 models)
Rebound damping
Comfort 24 clicks
Standard 20 clicks
Sport 20 clicks
(All 250/300 EXC/XC-W models)
Rebound damping
Comfort 24 clicks
Standard 20 clicks
Sport 20 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
