ERGONOMICS 8

153

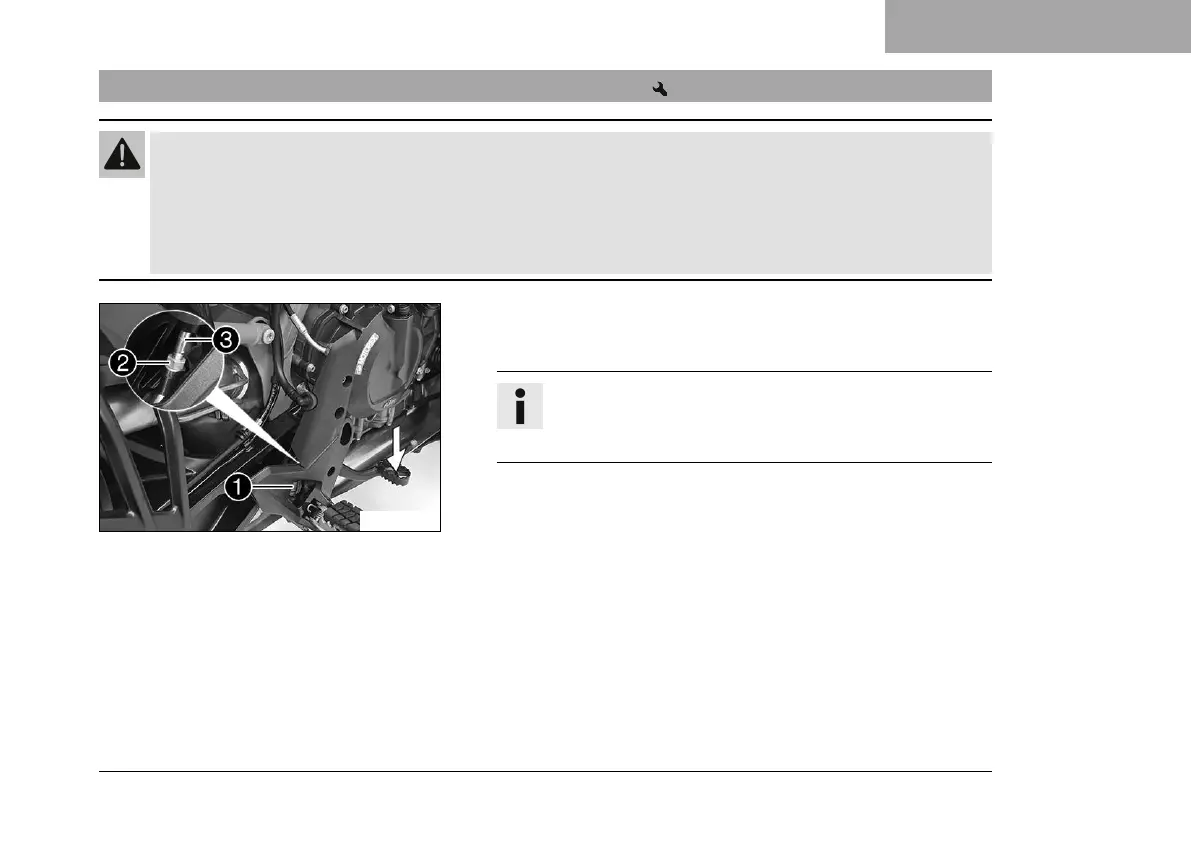

8.7 Adjusting the basic position of the foot brake lever

Warning

Danger of accidents The brake system fails in the event of overheating.

If there is no free travel on the foot brake lever, pressure builds up in the brake system on the rear

brake.

– Set the free travel on the foot brake lever in accordance with the specification.

F02022-10

–

Detach spring

–

Loosen nut

Tip

Press the foot brake lever downwards to make this eas-

ier.

–

Turn the push rod

to set the basic position of the foot

brake lever.
