SERVICE WORK ON THE CHASSIS 13

225

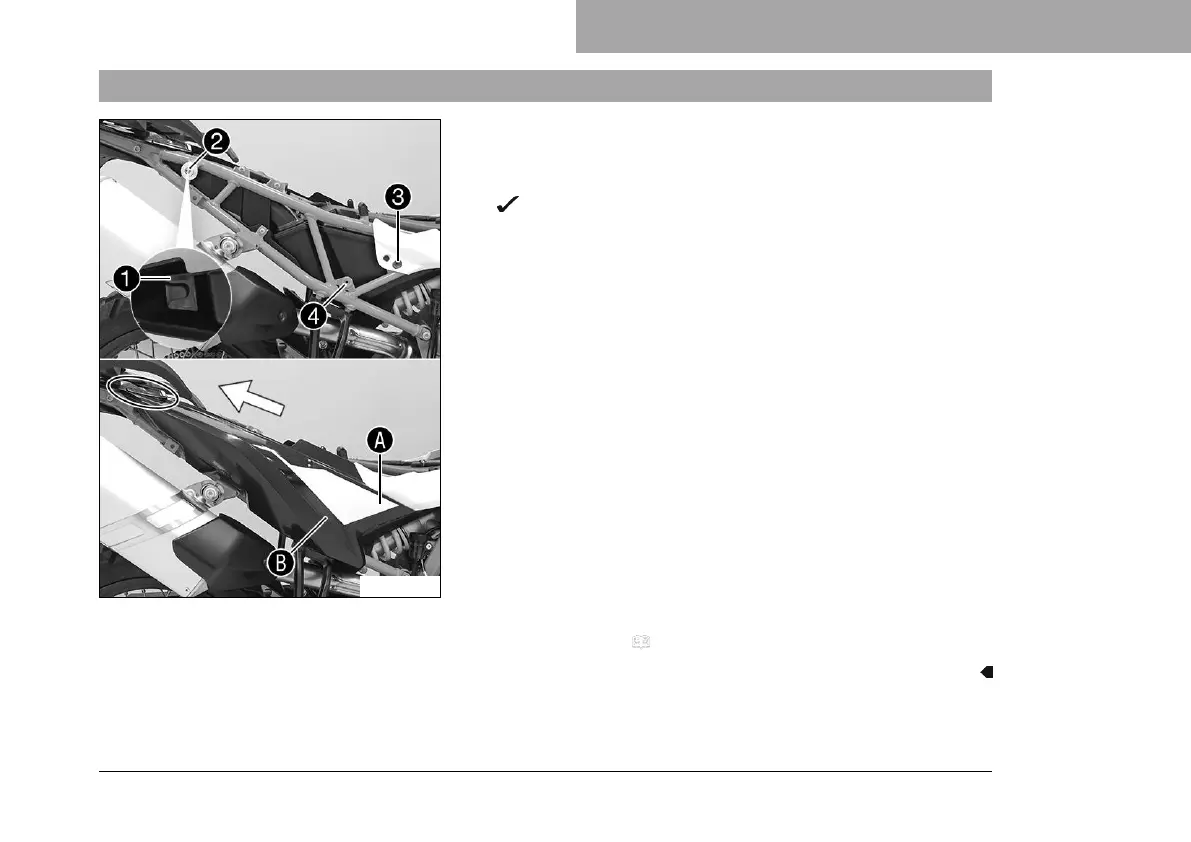

13.15 Installing the right side cover

F03296-10

Main work

–

Position the right side cover with holding lug

on bush-

ing

and push backward.

The right side cover engages under the tail part.

–

Press the right side cover in the area

into rubber bush-

ing

and press into rubber bushing

in area

Finishing work

– Mount the seat. ( p. 211)
