13 SERVICE WORK ON THE CHASSIS

250

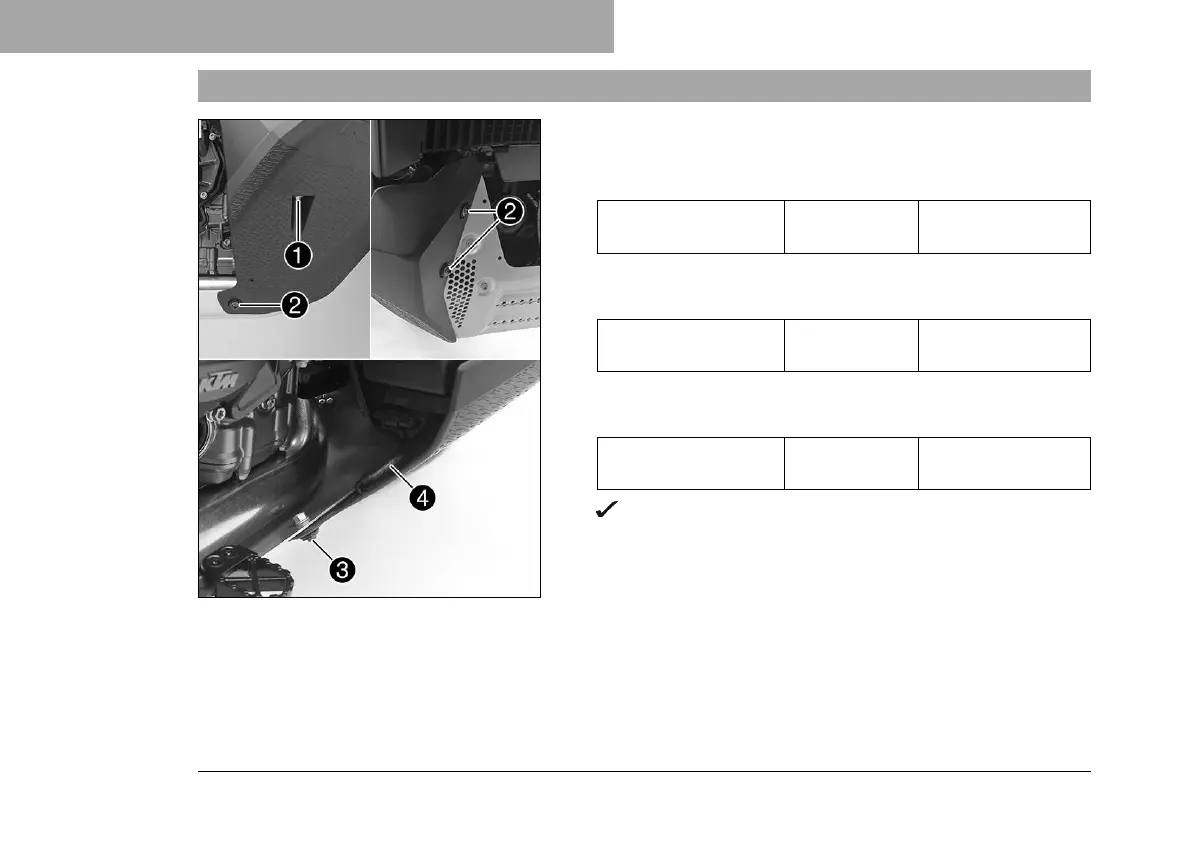

13.32 Installing the right fuel tank cover

F01940-10

– Position the right fuel tank cover.

–

Mount and tighten screw

Guideline

Screw, fuel tank

cover

M6x12 8 Nm (5.9 lbf ft)

–

Mount screws

, but do not tighten yet.

Guideline

Screw, fuel tank

cover

M6x22 8 Nm (5.9 lbf ft)

–

Mount fitting

, but do not tighten yet.

Guideline

Screw cap, fuel tank

cover

M6 5 Nm (3.7 lbf ft)

The right fuel tank cover is directed evenly toward the

front.

– Tighten all the screws of the right fuel tank cover.
