SERVICE WORK ON THE CHASSIS 13

227

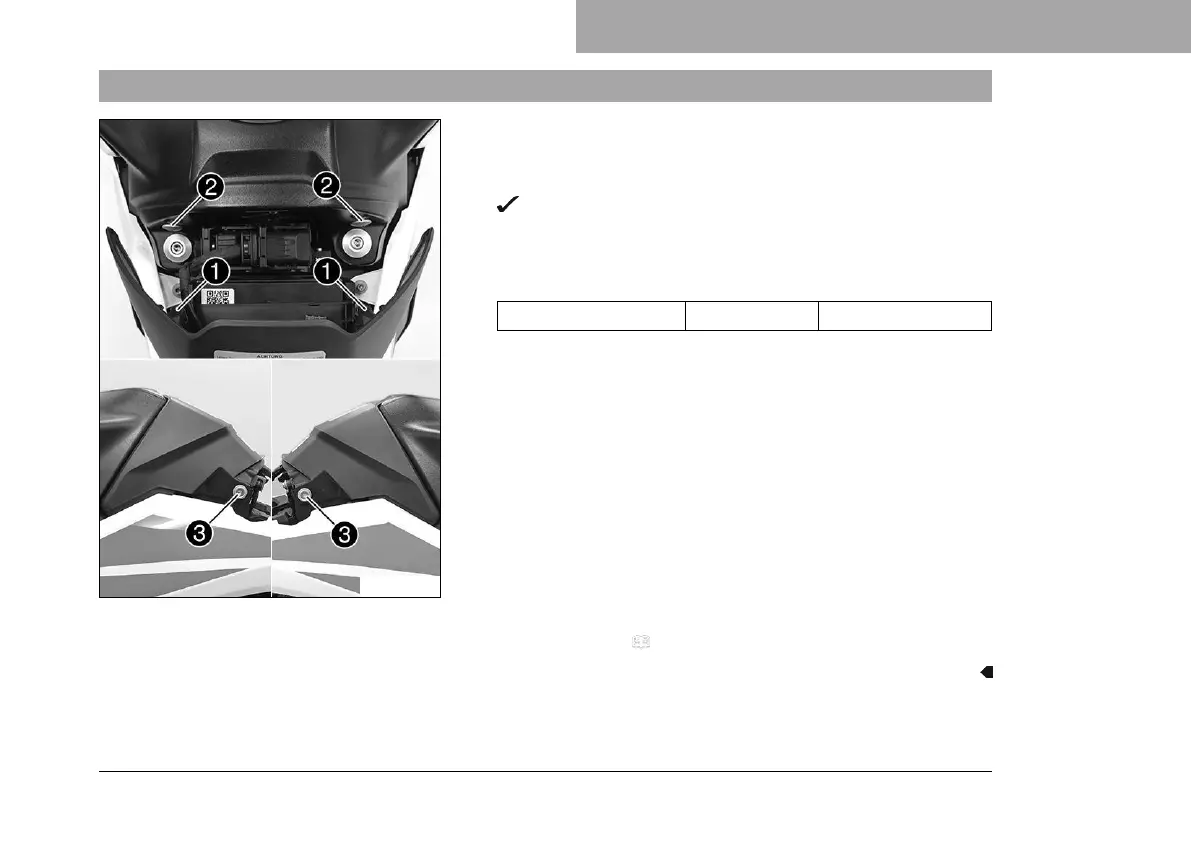

13.17 Installing the battery cover

F03297-10

Main work

–

Position the battery cover with holding lugs

bushings

and push downward.

The battery cover engages on the left and right under the

fuel tank spoiler.

–

Mount screws

with the bushings and tighten.

Guideline

Screw, seat fixing M6 6 Nm (4.4 lbf ft)

Finishing work

– Mount the seat. ( p. 211)

Default Chapter5
