SERVICE WORK ON THE CHASSIS 13

239

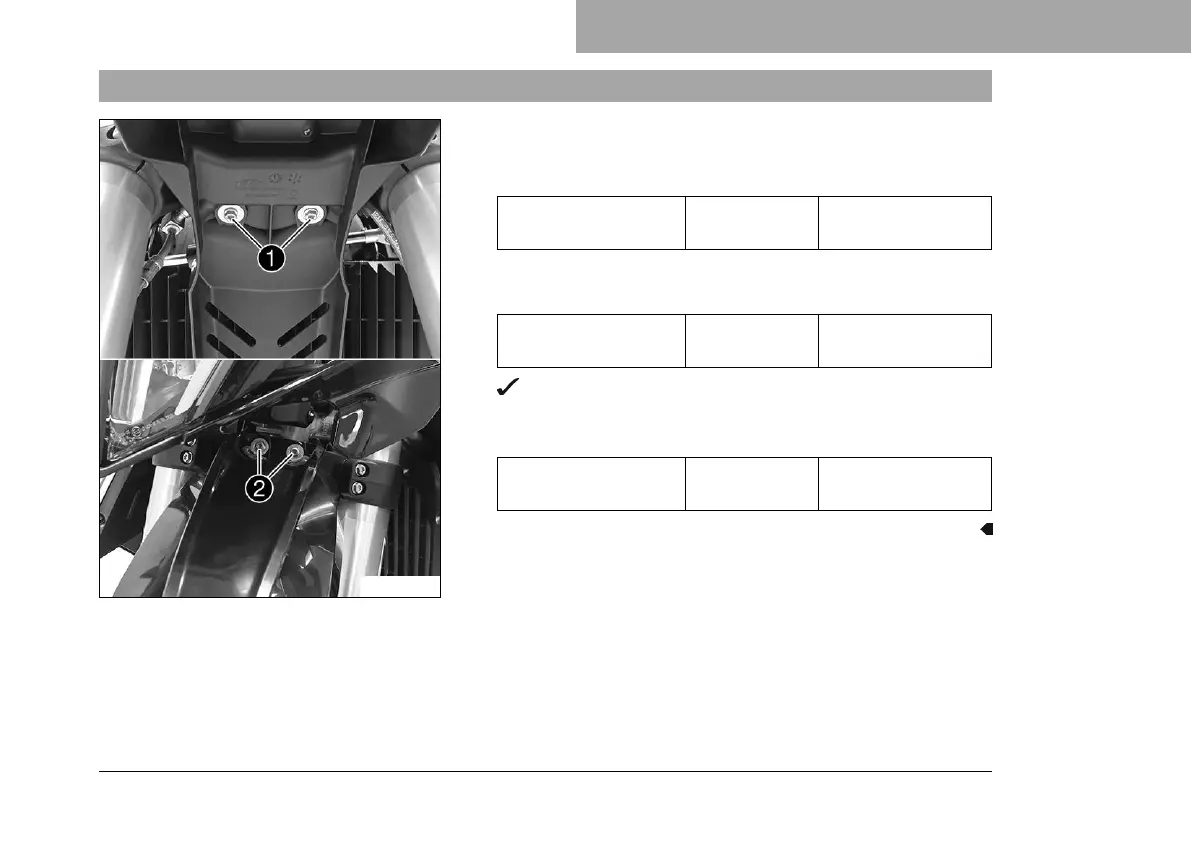

13.23 Installing the front fender

F02052-10

–

Position the front fender. Mount screws

, but do not tighten

yet.

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

–

Mount screws

, but do not tighten yet.

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

The fender is evenly aligned to the front.

– Tighten all screws on the front fender.

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)
