WHEELS, TIRES 117
12.5Checking the rear hub rubber dampers x
Info
The engine power is transmitted from the rear sprocket to the rear wheel via 6 rubber dampers. They eventually wear out during
operation. If the rubber dampers are not changed in time, the rear sprocket carrier and the rear hub will be damaged.
–

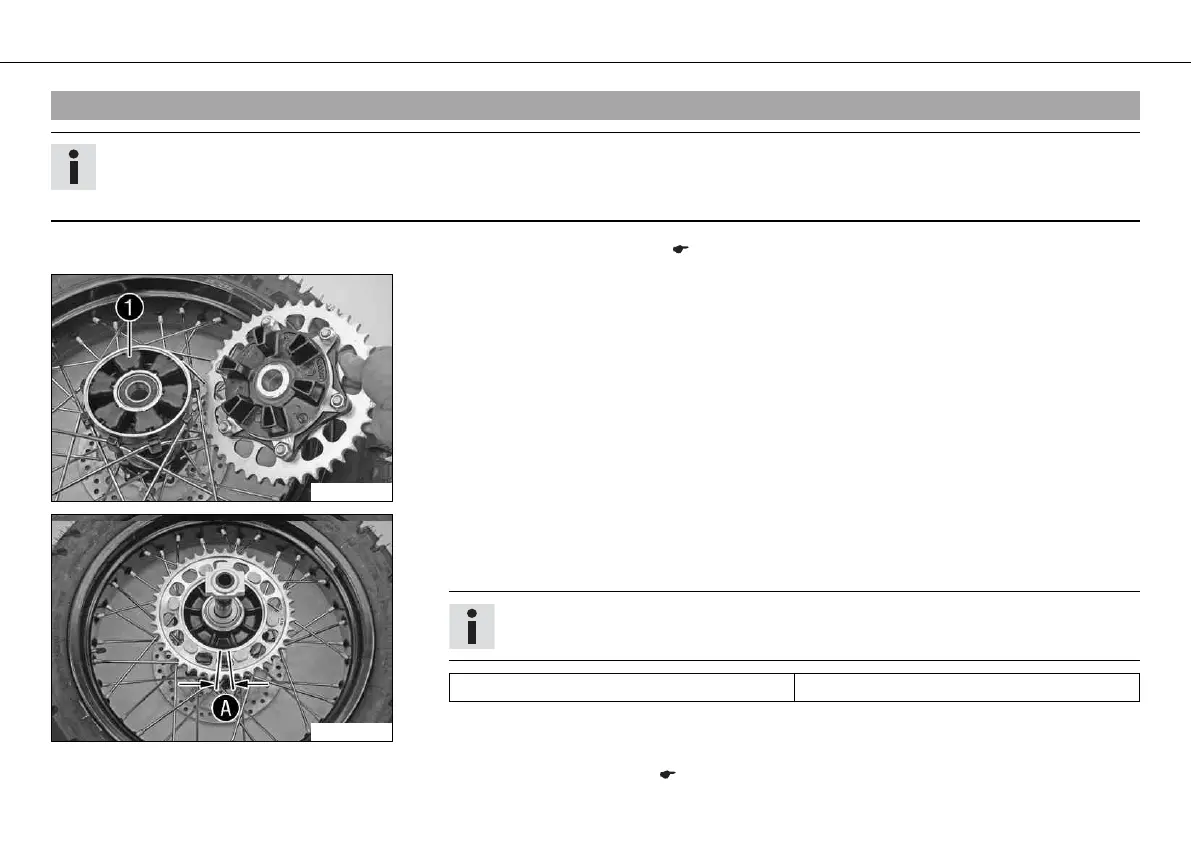

Remove the rear wheel. x ( p. 113)
100572-10
– Check the rubber dampers of the rear hub for damage and wear.
» If the rubber dampers of the rear hub are damaged or worn:
– Change all rubber dampers in the rear hub.
100573-10
– Lay the rear wheel on a workbench with the rear sprocket facing upwards and insert the
wheel spindle in the hub.
– To check the play , hold the rear wheel tight and try to rotate the rear sprocket.
Info
Measure the play on the outside of the rear sprocket.
Play in rubber dampers, rear wheel ≤ 5 mm (≤ 0.2 in)
» If clearance larger than the specified value:
– Change all rubber dampers in the rear hub.
–
Install the rear wheel. x ( p. 115)
