ELECTRICAL SYSTEM 139
100600-10

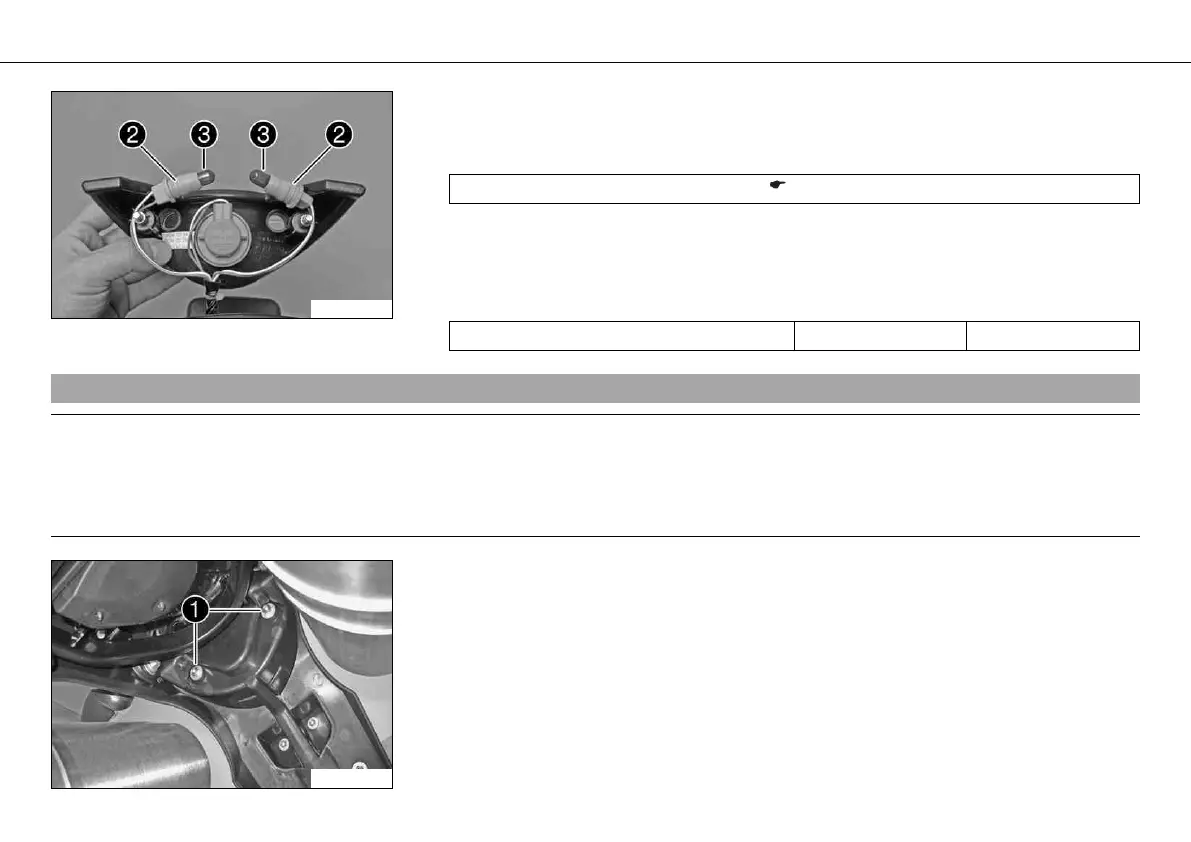

– Pull bulb sockets out of the tail light.
– Pull bulbs out of the sockets.
– Insert new bulbs into the sockets.
Tail light (WR5W / socket W2.1x9.5d) ( p. 192)
– Insert the bulb sockets into the tail light.
– Check the lighting function.
– Position the tail light. Mount and tighten the nuts with the washers.
Guideline
Nut, tail light M6 8 Nm (5.9 lbf ft)
13.14Changing the brake light bulb
Note
Damage to reflector Reduced luminance.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease before
mounting.
100599-10
– Remove nuts at the bottom of the rear fender and pull out the tail light toward the
rear.
