SERVICE WORK ON THE ENGINE 163
100629-10

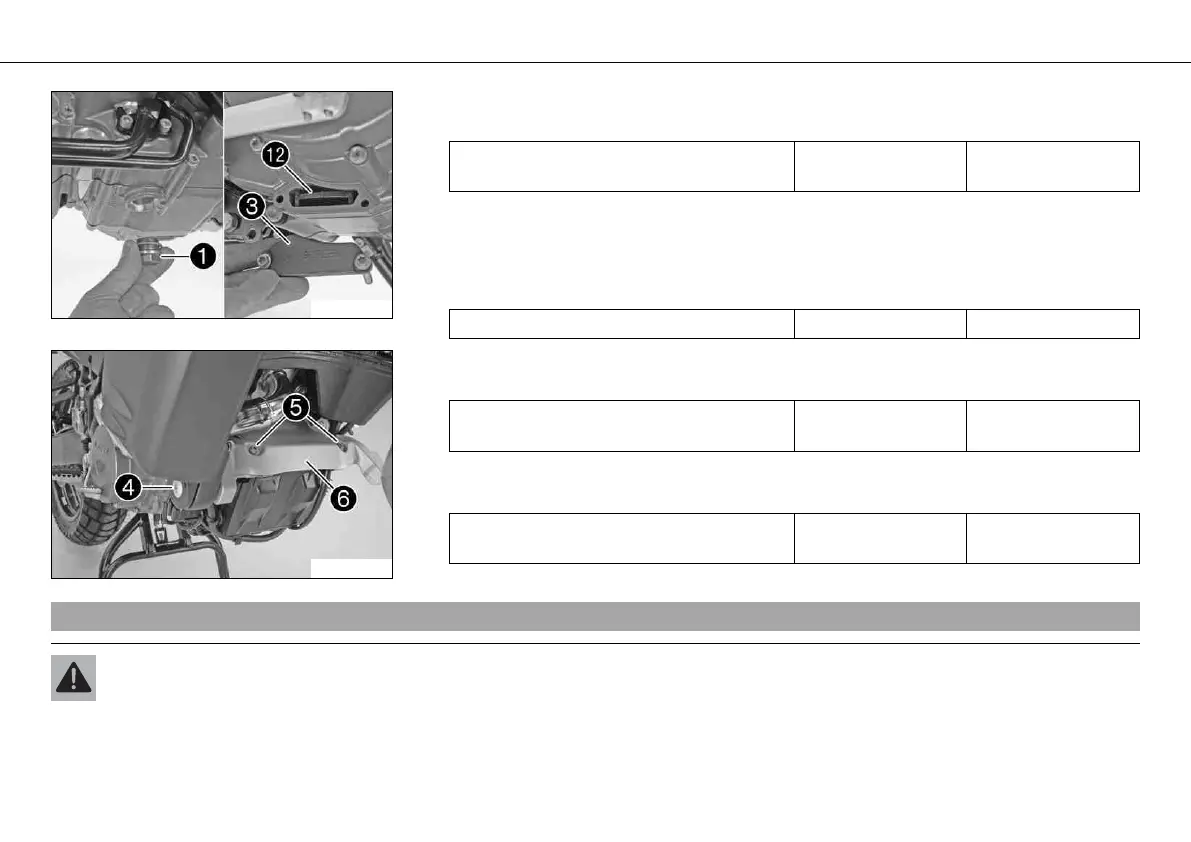

– Mount oil drain plug with the magnet and new seal ring and tighten.
Guideline
Oil drain plug with magnet M22x1.5 35 Nm
(25.8 lbf ft)
– Slide oil sieve into the engine case with the TOP marking facing up.
– Check the form ring in cover for damage and correct seating.
– Position cover . Mount and tighten the screws.
Guideline
Screw, clutch cover M6 10 Nm (7.4 lbf ft)
100625-10
– Position bracket . Mount and tighten screws .
Guideline
Remaining chassis screws M8 25 Nm
(18.4 lbf ft)
– Mount and tighten screw on the right fuel tank.
Guideline
Screw, fuel tank M8 15 Nm
(11.1 lbf ft)
16.4Removing the oil filter x
Warning
Danger of scalding Engine oil and gear oil get very hot when the motorcycle is ridden.
– Wear appropriate protective clothing and safety gloves. In case of burns, rinse immediately with lukewarm water.
