SERVICE WORK ON THE CHASSIS 95
10.21Adjusting the basic setting of the clutch lever
100619-10

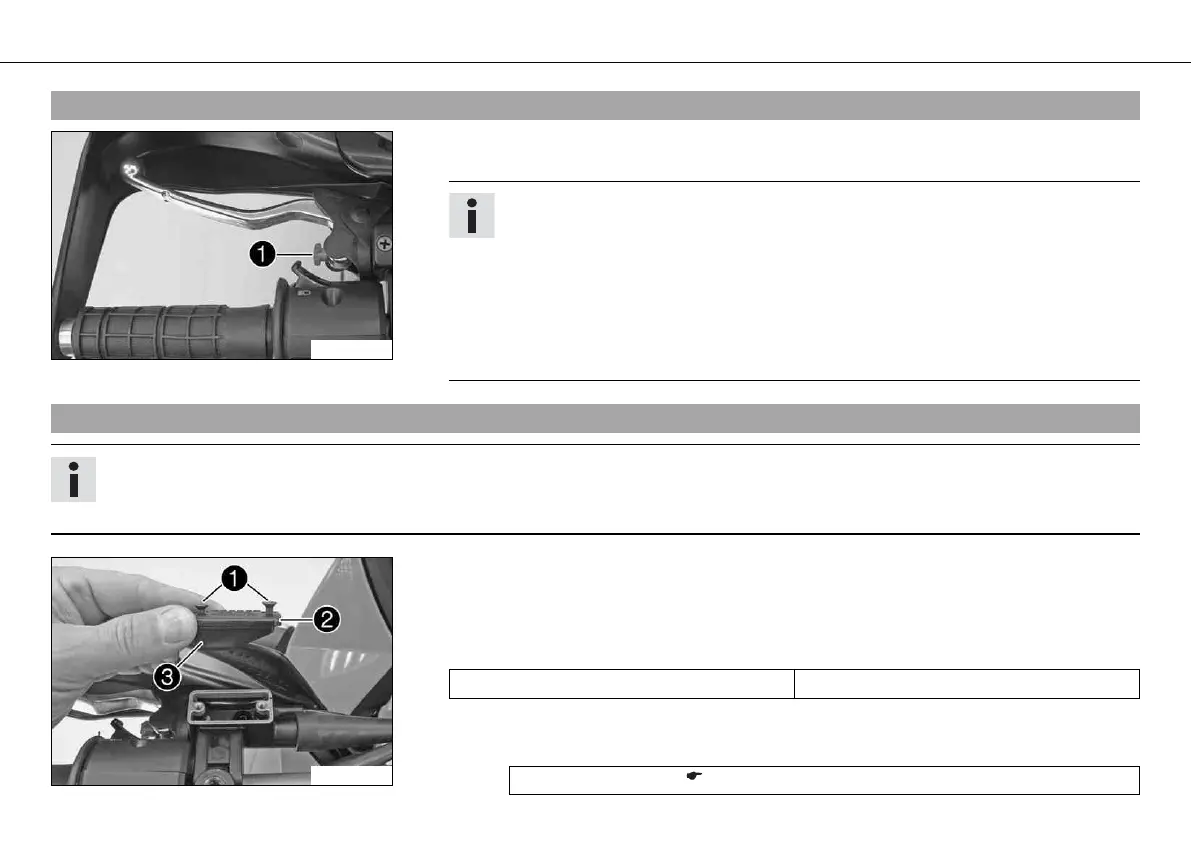

– Adjust the basic setting of the clutch lever to your hand size by turning adjusting
screw .
Info
Turn the adjusting screw clockwise to increase the distance between the clutch
lever and the handlebar.
Turn the adjusting screw counterclockwise to decrease the distance between the
clutch lever and the handlebar.
The range of adjustment is limited.
Turn the adjusting screw by hand only, and do not apply any force.
Do not make any adjustments while riding!
10.22Checking/rectifying the fluid level of the hydraulic clutch
Info
The fluid level rises with increasing wear of the clutch lining disc.
Do not use brake fluid.
100620-10
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
– Remove screws .
– Remove cover with membrane .
– Check the fluid level.
Fluid level below top edge of container 4 mm (0.16 in)
» If the coolant level does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
Hydraulic fluid (15) ( p. 205)
