SERVICE WORK ON THE CHASSIS 80
100589-10

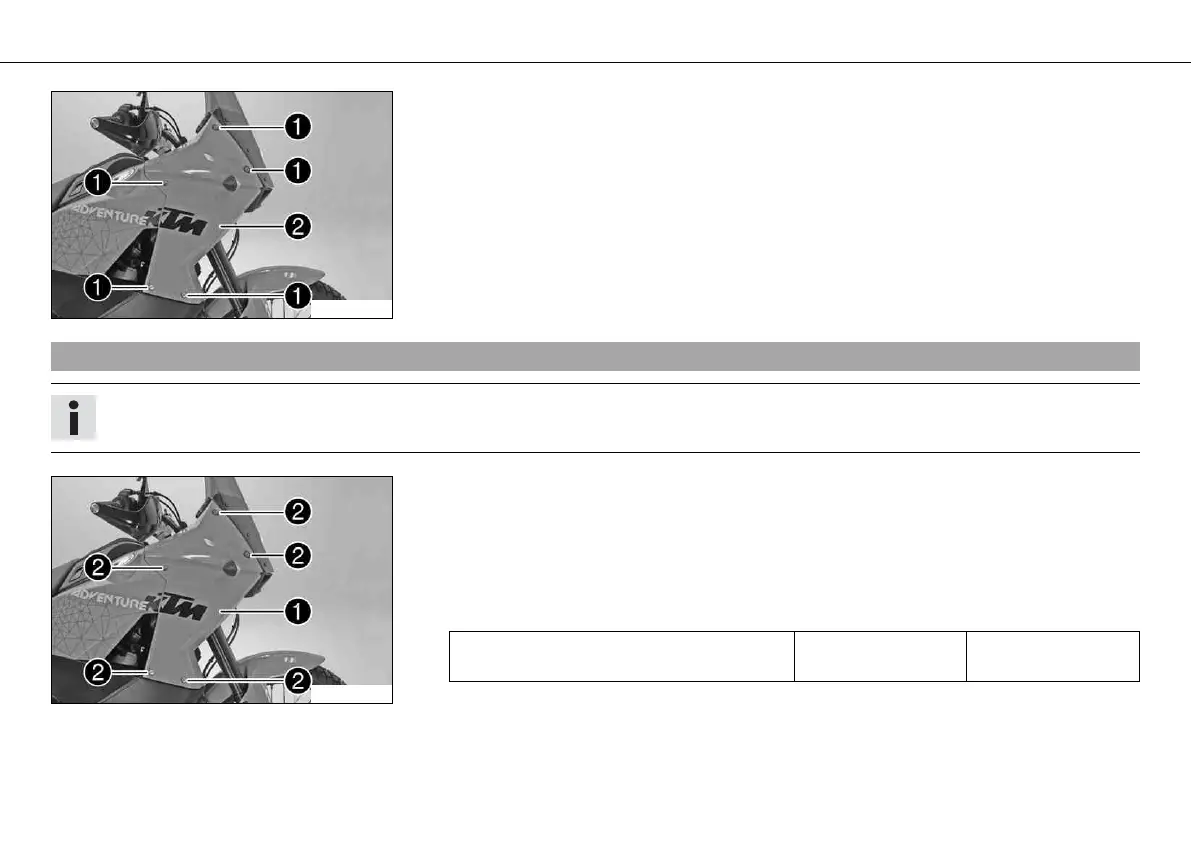

– Remove screws .
– Carefully swing out the side cover at the top and disconnect the plug-in connectors
of the turn signal cables.
– Pull off the overflow hose of the fuel tank and take off the trim.
10.7Installing the front side cover
Info
The operations are the same on the left and right sides.
100589-11
– Position side cover at the fuel tank on the bottom and hold it at an angle.
– Attach the overflow hose of the fuel tank to the connector.
– Connect the plug-in connectors of the turn signal cables and swing the side cover up
toward the vehicle.
– Mount and tighten screws with the washers.
Guideline
Remaining chassis nuts M6 15 Nm
(11.1 lbf ft)
– Check the function of turn signal.
