MAINTENANCE WORK ON FRAME AND ENGINE 104
100602-10

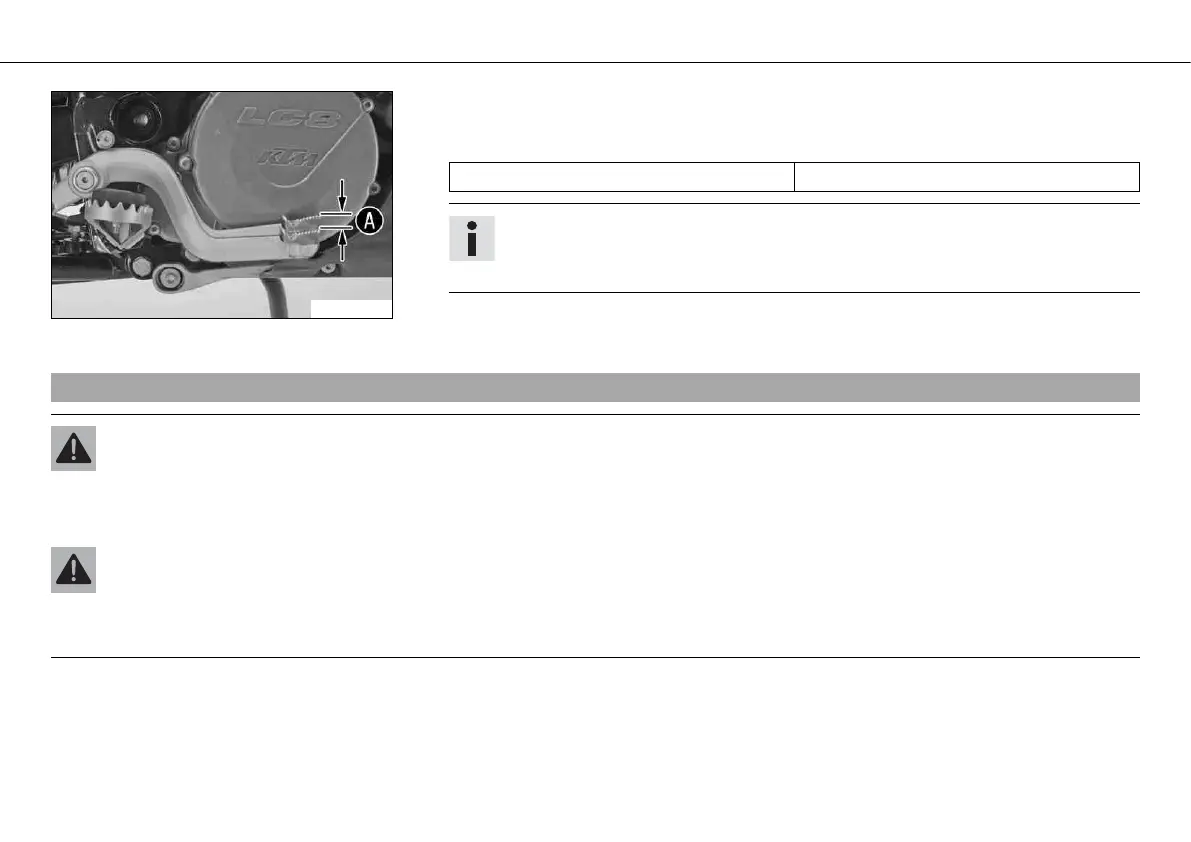

– Move the foot brake lever back and forth between the end stop and the contact to the
foot brake cylinder piston and check free travel .
Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
Info
You will know that contact has been made with the foot brake cylinder piston
when there is increased resistance when you activate the foot brake lever.
» If the free travel does not meet specifications:
–
Adjust the basic position of foot brake lever. x
Checking the rear brake fluid level
Warning
Danger of accidents Failure of the brake system.
– If the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings. Check
the brake system and do not continue riding. (Your authorized KTM workshop will be glad to help.)
Warning
Danger of accidents Reduced braking effect caused by old brake fluid.
– Change the brake fluid of the front and rear brakes according to the service schedule. (Your authorized KTM workshop will be
glad to help.)
