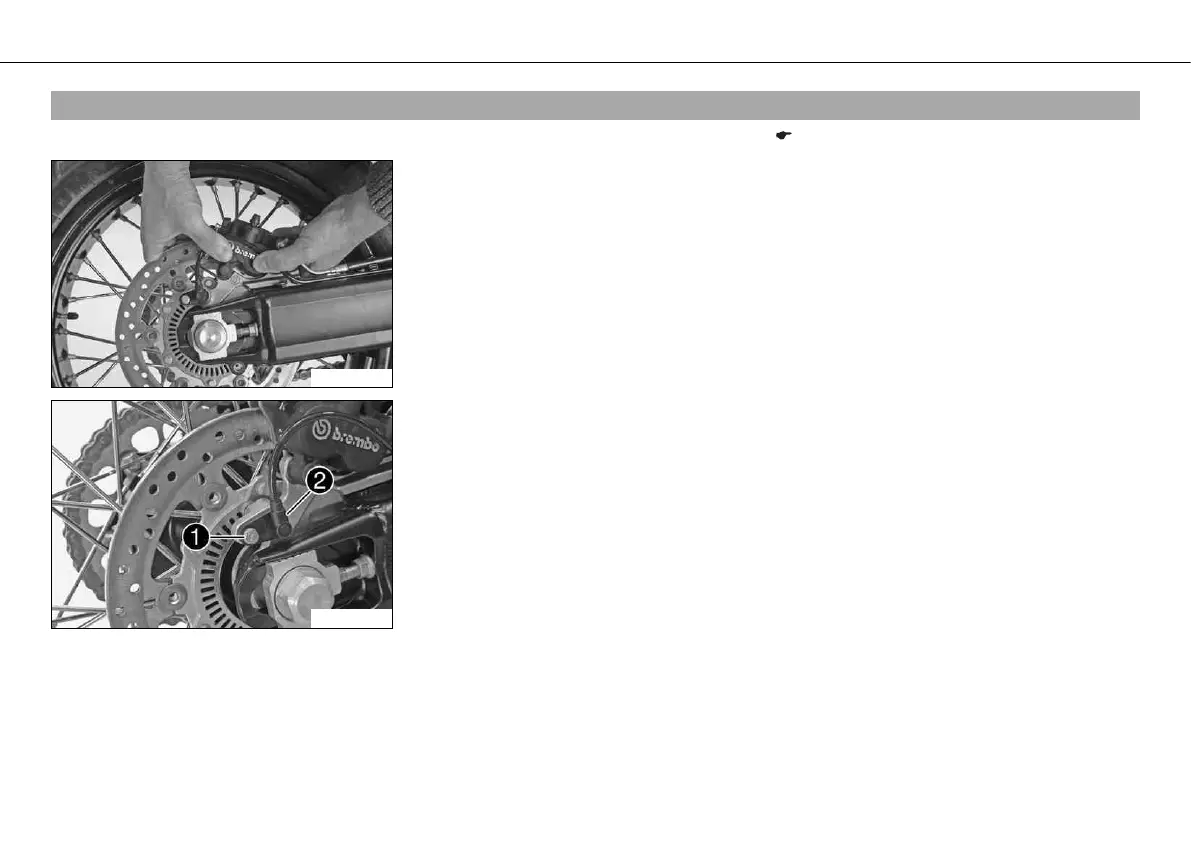

MAINTENANCE WORK ON FRAME AND ENGINE 112

Removing the rear wheel x

– Jack up the vehicle on the center stand. ( p. 75)

100634-10

– Press the brake caliper by hand on to the brake disc in order to press back the brake

pistons.

100635-10

(990 Adventure USA)

– Remove screw  and pull wheel speed sensor  out of the hole.
