MAINTENANCE WORK ON FRAME AND ENGINE 138

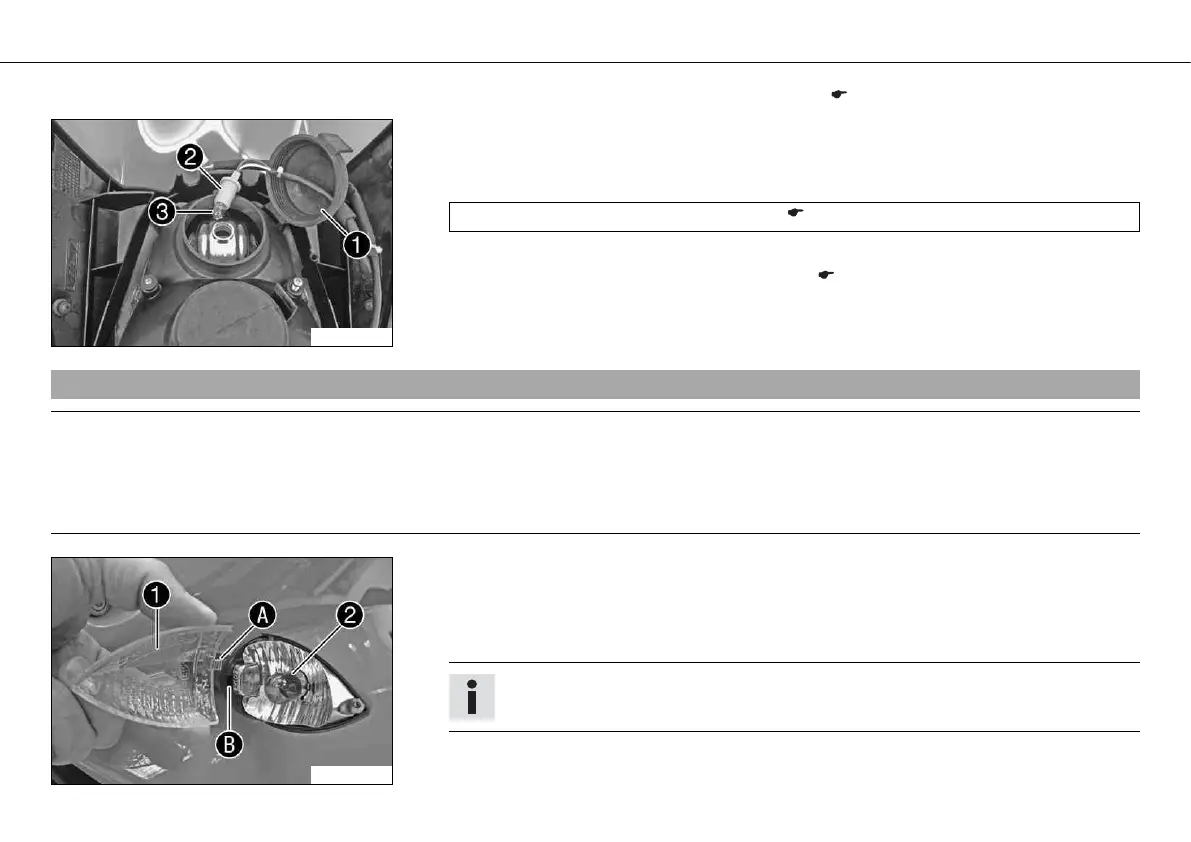

– Remove the headlight mask with the headlight. ( p. 135)
100638-10
– Remove rubber cap .
– Pull socket out of the headlight and pull bulb out of the socket.
– Insert the new bulb into the socket and insert the socket into the headlight.
Parking light (W5W / socket W2.1x9.5d) ( p. 199)
– Replace the rubber cap.
– Install the headlight mask with the headlight. (
p. 136)
Changing the turn signal bulb
Note
Damage to reflector Reduced luminance.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease before
mounting.
100597-10
– Remove the screw on the rear of the turn signal housing.
– Carefully remove diffuser .
– Press bulb carefully into the socket, turn it counterclockwise by about 30°, and pull
it out of the socket.
Info
Do not touch the reflector with your fingers, and keep it free from grease.
– Press the new bulb carefully into the socket and turn it clockwise until it stops.
