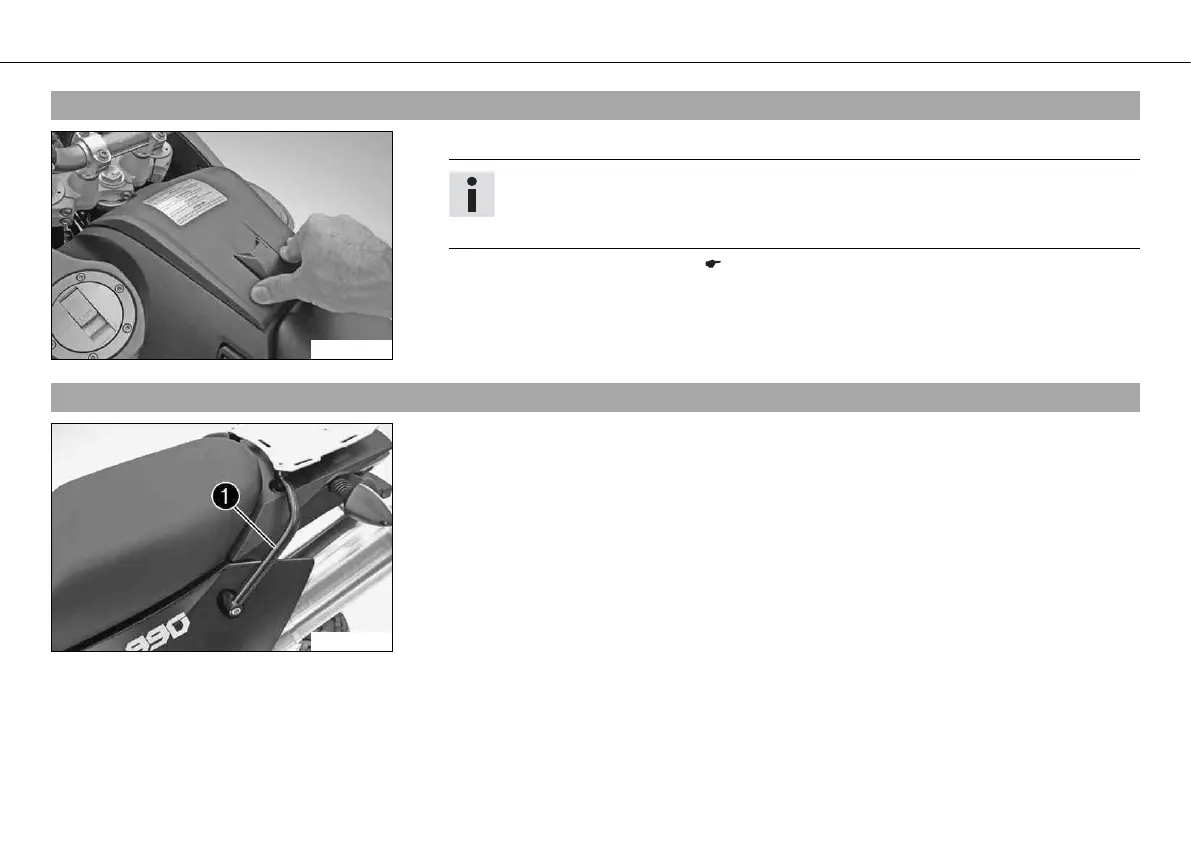

CONTROLS 48

Closing the storage compartment

100521-10

– Push down on the rear of the cover until it audibly engages.

Info

The storage compartment can be opened again as long as it has not been locked

using the seat lock.

– Lock the storage compartment. ( p. 47)

Handrails

100522-10

The handrails  are used for moving the motorcycle around.

When you have a passenger, the passenger can hold on the handrails during the trip.
