PERIODIC SERVICE78
SERVICE AS REQUIRED
BElectrical system
Damage to cables and loose connections cause
malfunctioning and lead to short circuits, leakage and
fires. Replace and repair as quickly as possible.
C Replacing the fuses
To avoid personal injury or death:
A Before replacing a fuse, be sure to turn off the
starter switch.
1. Open the right side cover.
2. Remove the cover of the fuse box.
3. Replace the blown fuse using a new one of the same
capacity.

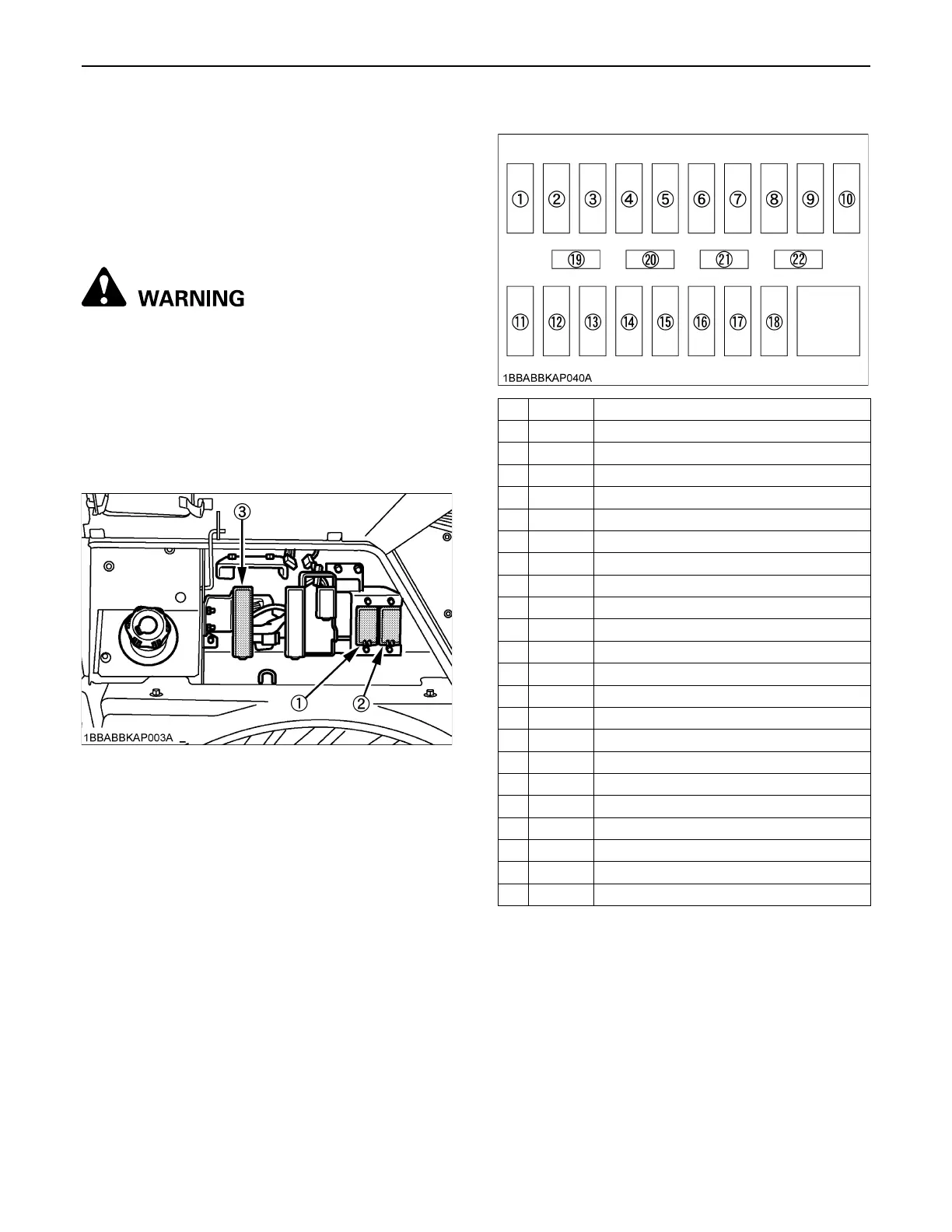

C Fuse capacities and their circuits
[Fuse box A]
(1) Fuse box A
(2) Fuse box B
(3) Fuse box C
Rating Applied Circuit
1 30A Front wiper switch, Horn switch
2 30A Blower motor
3 5A Meter (+B)
4 20A Main ECU (power)
5 10A Horn
6 15A Beacon
7 Blank
8 5A Room lamp
9 Blank
10 30A Front wiper
11 10A Headlamp LH
12 10A Headlamp RH
13 5A Clearance lamp LH, Tail lamp LH
14 5A Clearance lamp RH, Tail lamp RH
15 5A Starter signal
16 5A Horn (sub)
17 Blank
18 Blank
19 5A Spare
20 10A Spare
21 15A Spare
22 20A Spare
