23CHECKS BEFORE START

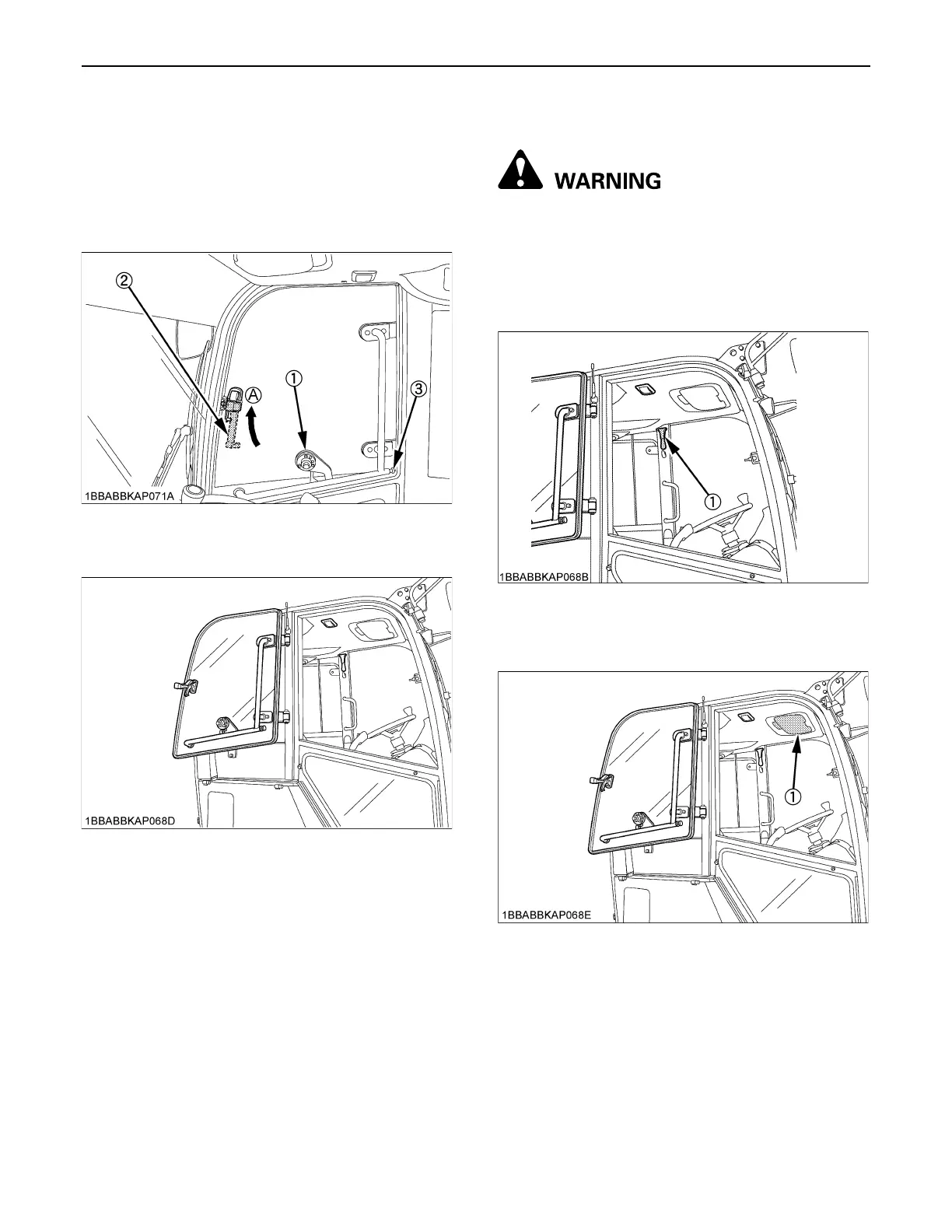

BOpening/Closing of Side CABIN Window
1. Press the release button and pull the grip to unlock the
side CABIN window and push it by release lever to
open.
2. To close the side CABIN window, pull it by the release
lever until the lock snaps in at the window frame.
BEmergency Hammer
To avoid personal injury or death:
A When breaking the window pane, close your
eyes and cover them with an arm.
Emergency hammer is for breaking window pane to
escape from wheel loader should the window rail locking
mechanism fail.
BSun visor
(1) Release button
(2) Grip
(3) Release lever
(A) Pull
(1) Emergency hammer
(1) Sun visor
