71PERIODIC SERVICE
BReplacing the engine oil filter cartridge
To avoid personal injury or death:
A Always stop the engine before replacing the
engine oil filter cartridge.
A Never remove the oil filter immediately after the
engine has stopped, or hot engine oil may rush
out, causing scalding.
1. Replace the engine oil filter cartridge at the same time
engine oil is changed.
2. Use the supplied filter wrench to remove the oil filter.
3. Apply a thin layer of oil to the gasket of the oil filter and
firmly tighten it in place by hand.
4. Top up oil if necessary.
5. Idle the engine briefly.
6. Check the oil level about 5 minutes after switching off
the engine with the oil dipstick.
EVERY 500 HOURS SERVICE
Perform inspection and servicing for every 50 and 250
hours of operation at the same time.
BChecking and replenishing oil in the front
and rear axle, reduction gear case
To avoid personal injury or death:
A Before changing oil in the front and rear axle
differential case, always stop the engine and
lock the direction switch in neutral.
A Always remove the bucket and attachment, and
use the lift arm support device when servicing
the machine with the loader lift arms raised to
avoid serious personal injury.
1. Remove the oil port plug, check the oil level. The oil
level must be at the lower rim of the thread.
2. Add oil if necessary.
3. Screw in and tighten the oil port plug.

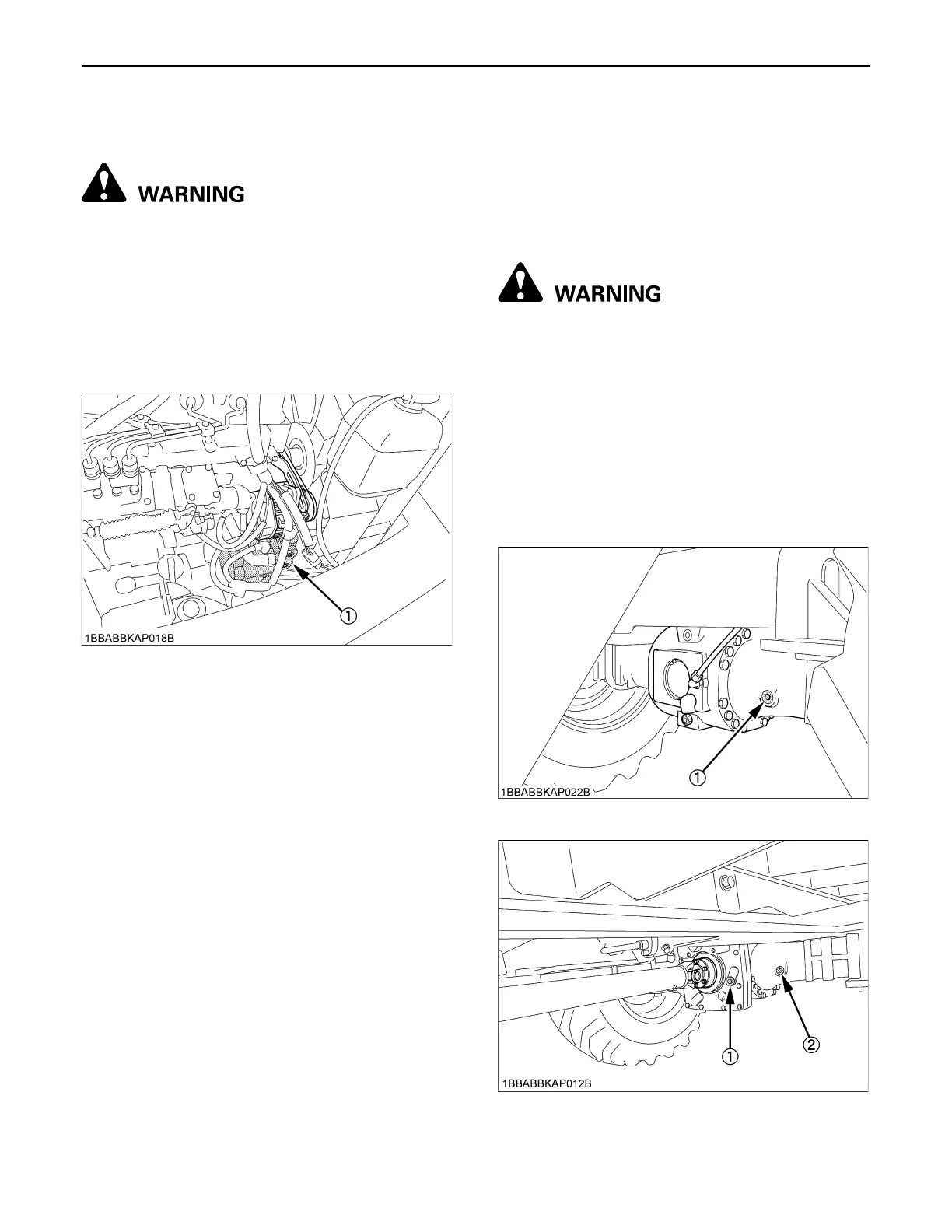

(1) Engine oil filter cartridge
(1) Oil port plug front axle
(1) Oil port plug reduction gear case
(2) Oil port plug rear axle
