CHECKS BEFORE START10
BStarter Switch
A [STOP]
The key can be inserted at the "STOP" position.
A [RUN]
Turn the key one click from the "STOP" position to the
"RUN" position. All the circuitry gets energized to start
preheating. The glow indicator is displayed.
To check for any lamp breakage, however, the lamp
lights up and stays on for about 1 second.
A [START]
Turn the key from the "RUN" position another click to
the "START" position. The starter motor is then
activated to get the engine started.
Release your hand from the key, and the key returns
itself to the "RUN" position. In other words, once the
engine has started, be sure to free the key.
BHorn Switch
Even when the starter key is in "STOP" position, the horn
will be beeped by pressing the horn switch.
BTurn Signal Switch
Operate the turn signal switch to the right or left according
to the direction in which the machine is to be turned. The
corresponding turn signal will blink.
Be sure to return the switch to the center position after the
turn.
BHigh-Low Beam Changing Switch
Pull up the switch toward the steering wheel, and the high
beams light up. The high and low beams can be switched
each other by moving up and down the switch.

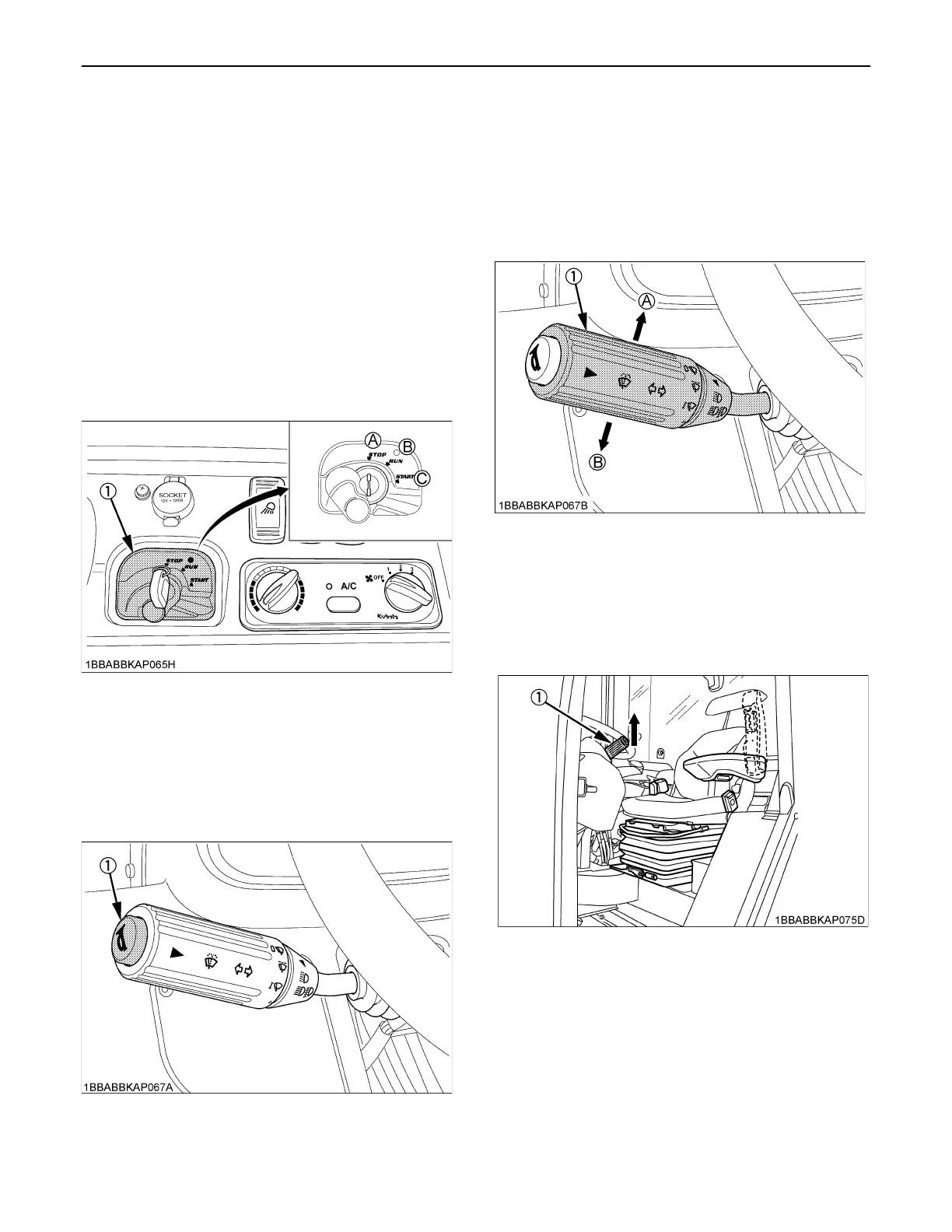

(1) Starter switch (A) "STOP"
(B) "RUN"
(C) "START"
(1) Horn switch
(1) Turn signal switch (A) To blink right turn signal
(B) To blink left turn signal
(1) High-Low beam changing switch
To Next Page
