OPERATION OF THE MACHINE34
BInching and Brake Pedals
Press either pedal down slightly, then the HST pump
comes in neutral and cuts off the engine power on the way
of the transmission, that is so-called dynamic brake,
unique to HST (Hydrostatic Transmission).
When pressing it further, the disc brake acts together to
obtain strong braking effect.
For the details of inching and brake pedal, refer to the
section "HOW TO USE THE INCHING AND BRAKE
PEDAL".
BNeutral Switch
When pressing this switch, the direction switch will be in
the neutral position and the instrument panel "N" goes on.
BDirection Switch
This switch is used for changing the machine's running
direction, forward or back.
C To move forward:
Move the direction switch forward and press the
accelerator pedal.
A The instrument panel " " goes on.

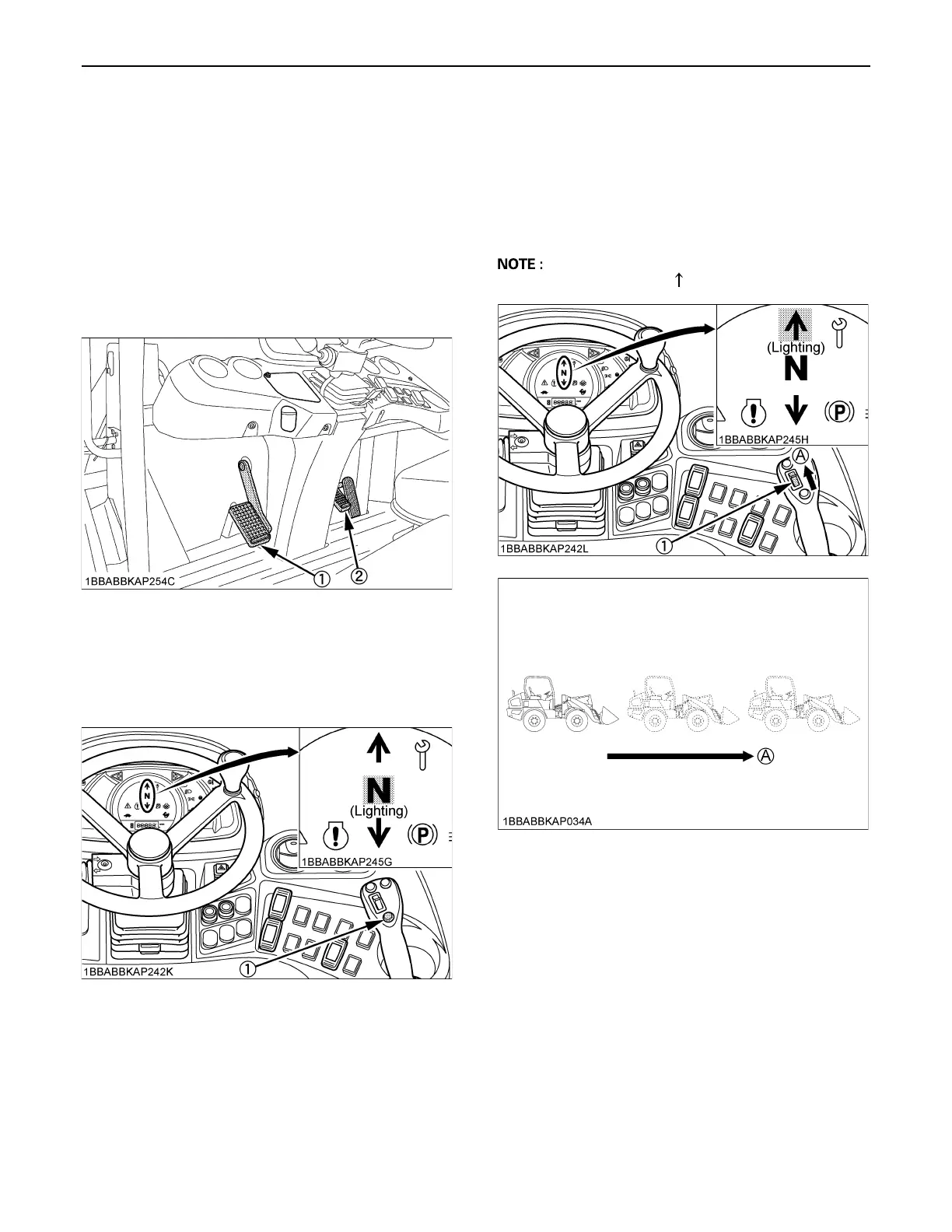

(1) Inching and brake pedal
(2) Brake pedal (option)
(1) Neutral switch
(1) Direction switch (A) "FORWARD"
