PERIODIC SERVICE62
BGrease fittings
To avoid serious personal injury or death:
A Keep clear of articulation joint during service
work.
To avoid personal injury or death:
A Before greasing, always stop the engine, lower
the bucket and attachment to the ground,
release the hydraulic pressure in the hydraulic
system by operating the control levers, lock all
control levers in neutral, and remove the key.
A Always remove the bucket and attachment and
use the lift arm support when servicing the
machine with the loader lift arms raised.

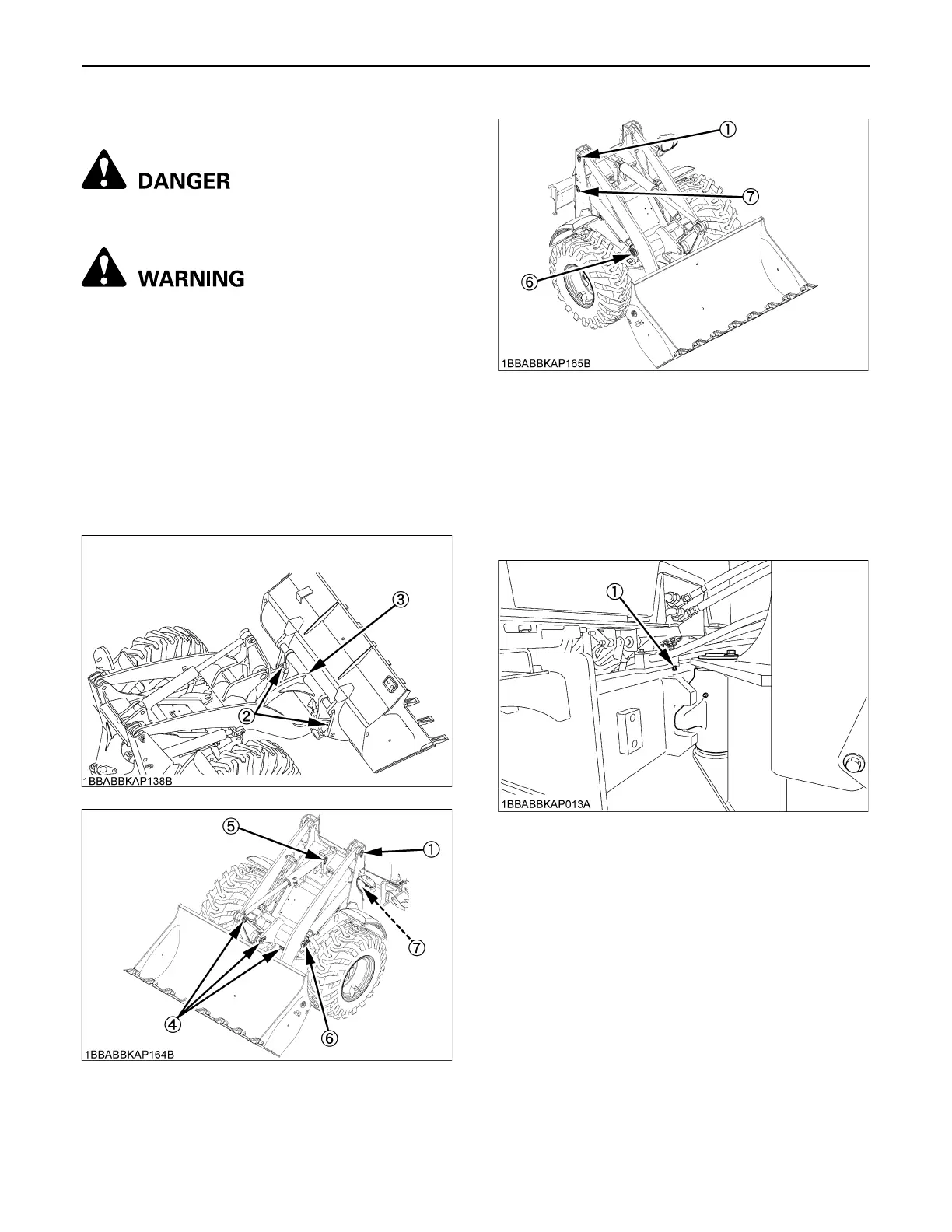

C Greasing the front attachments
Apply grease to the fittings on the front attachments
indicated by the arrows in the illustration.
C Greasing the rear frame
Apply grease to the rear frame at one grease fitting.
(1) Lift arm attachment pin (2 places)
(2) Quick coupler pin (2 places)
(3) Bucket link pin (1 place)
(4) Bell crank arm pin (3 places)
(5) Bucket cylinder bottom pin (1 place)
(6) Lift cylinder rod pin (2 places)
(7) Lift cylinder bottom pin (2 places)
(1) Grease fitting
