Kubota WSM L3560 User Manual

GENERAL
L3560, L4060, L4760, L5060, L5460, L6060, WSM
G-25

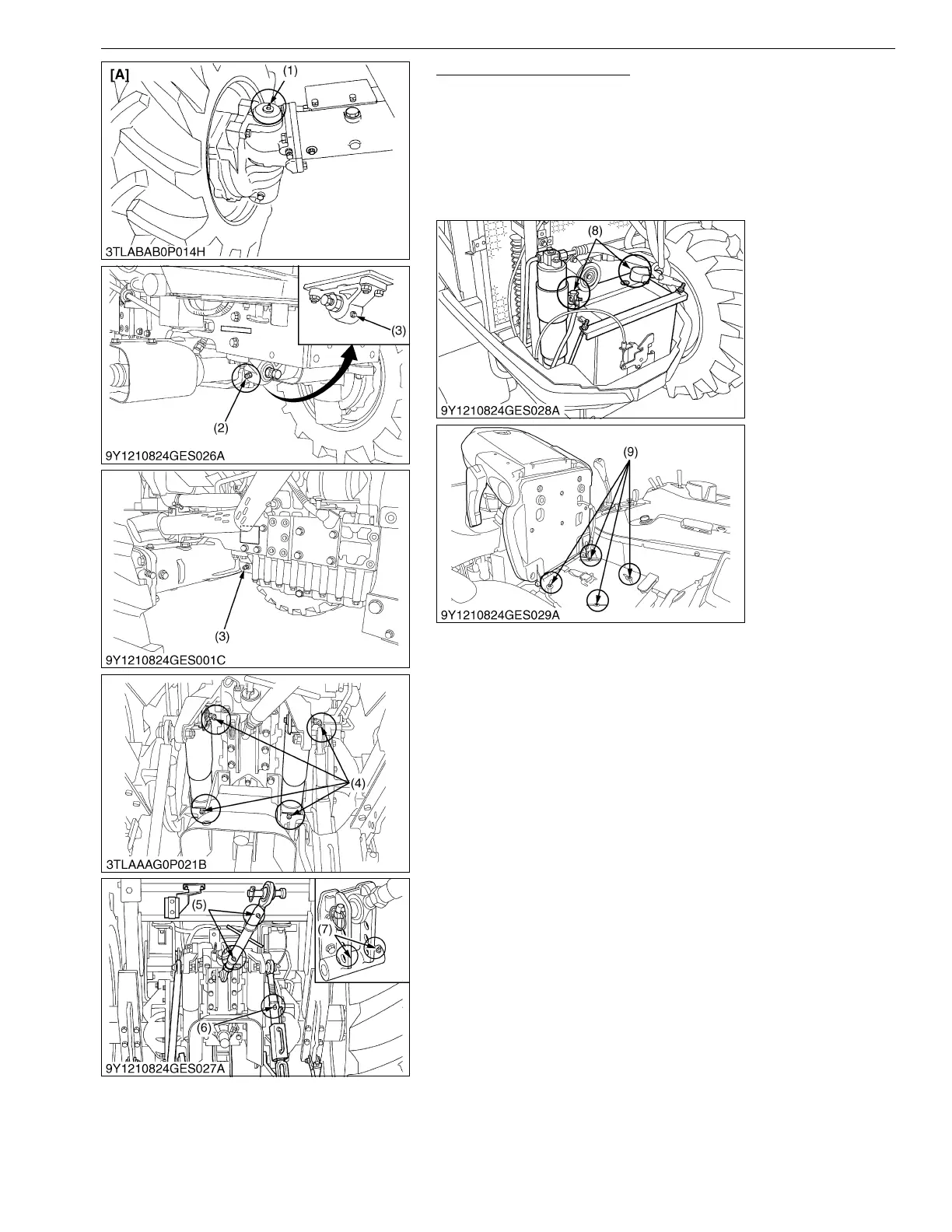

Lubricating Grease Fitting
1. Apply a small amount of multipurpose grease to the following
points every 50 hours.
If you operated the machine in extremely wet and muddy
conditions, lubricate grease fittings more often.
2. When apply a grease to forward front axle support, remove the
breather plug and apply a grease until grease overflows from
breather plug port. After greasing reinstall the breather plug.
9Y1210824GEG0036US0
(1) Grease Fitting (Front Wheel Case
Support RH, LH)
(2) Grease Fitting (Front Axle Support)
(3) Breather Plug
(4) Grease Fitting (Lift Cylinder)
(5) Grease Fitting (Top Link)
(6) Grease Fitting (Lifting Rod RH)
(7) Grease Fitting (Top Link Bracket)
(8) Battery Terminal
(9) Swivel Seat
[A] L4760, L5060, L5460, L6060
KiSC issued 03, 2016 A

Kubota WSM L3560 Specifications

General

Type	Compact Utility Tractor
Engine Model	Kubota V1505-T
Horsepower	37 hp (27.6 kW)
Fuel Type	Diesel
Drive	4WD
Hydraulic System	Open center
3-Point Hitch	Category I
PTO Horsepower	30.5 hp (22.7 kW)
Transmission	Hydrostatic
Number of Gears	3-range
Height	91.3 in (232 cm)
Tire Size (Front)	7-16
Tire Size (Rear)	15-19.5
Displacement	91.4 cu. in. (1, 499 cc)
