Paper
1-22

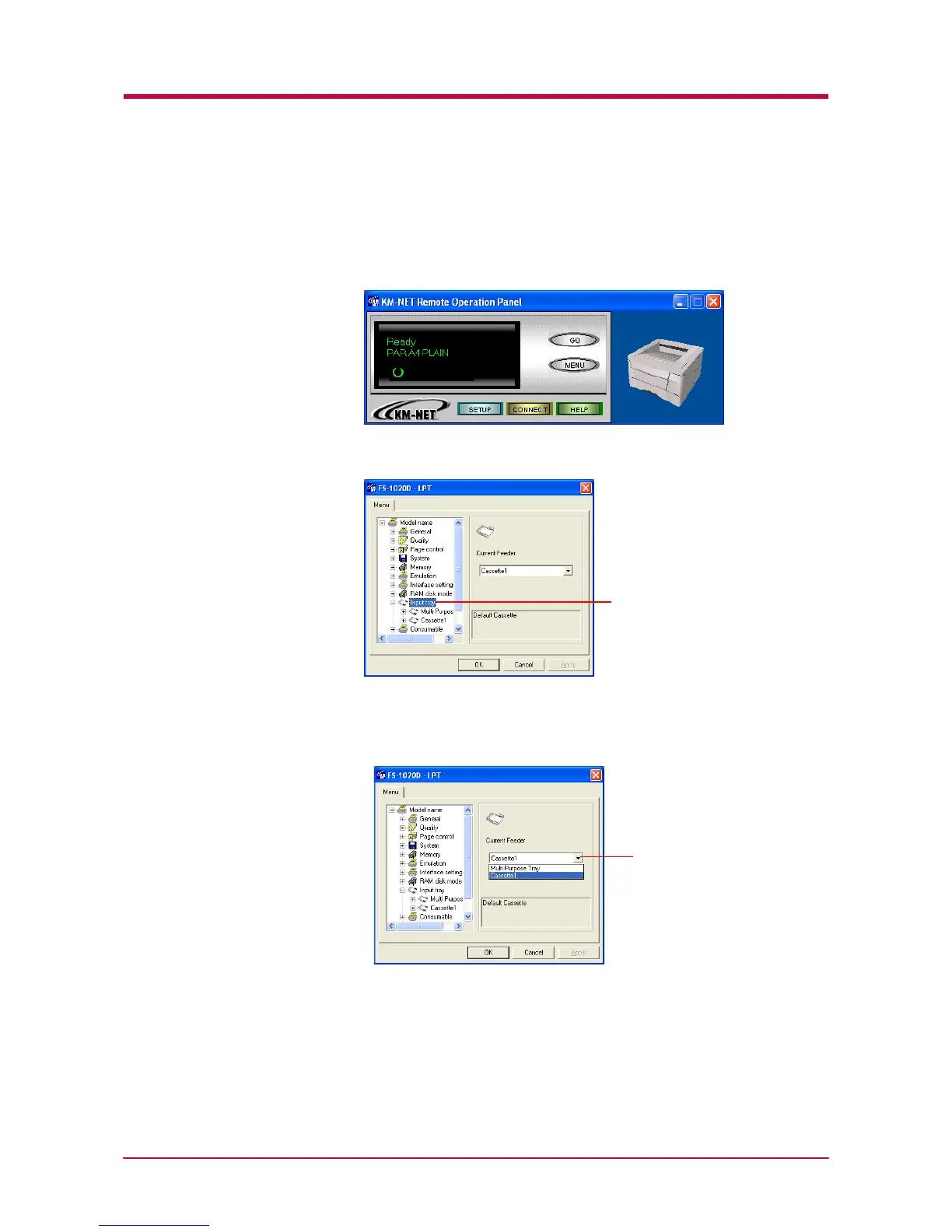

1.4.4 Paper Source
This sets the paper source. The default setting is the printer’s cassette
(internal tray).
1
Click the MENU button on the start-up screen.
2
The Menu dialog box appears. Select and double click Input Tray.
3
Click the T button next to the pull-down menu on the right side of
the screen to display the available paper sources. Select the paper
source you want to set.
4
After you have selected a paper source, click the OK button to return
to the start-up screen. The default paper source is changed.
Input Tray
Current Feeder

Table of Contents

Other manuals for Kyocera FS-1020D

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Kyocera FS-1020D and is the answer not in the manual?

Kyocera FS-1020D Specifications

General IconGeneral
Time to first page (black, normal)10 s
Print speed (black, normal quality, A4/US Letter)20 ppm
Internal memory16 MB
Processor modelPower PC 405
Built-in processorYes
Maximum internal memory272 MB
Powersave acoustic emission0 dB
Sound power level (standby)32 dB
Sound pressure level (printing)53 dB
I/O portsStandard interface: High speed bi-directional parallel (IEEE 1284), USB 2.0 (Full speed), KUIO LV Option-Interface slot Multiple interface connection (MIC): MIC allows for simultaneous data transfer via up to three interfaces, with each interface having its own virtual printer.
Memory upgradeYes GB
Power supply type220~240V @ 50/60Hz
Networking featuresAs optional: 10Base-T/100Base-TX, 10Base-FL, FibreLink, TokenRing STP/UTP, Wireless LAN - IEEE 802.11b, 10Base-T/100Base-TX/100Base-FX, FibreOptic, 10Base-2/10Base-T/100Base-TX, Optional
Standard input traysUniversal paper cassette, Multipurpose tray.
Duty cycle letter size (maximum)15000 pages per month
Maximum print size210 x 297 mm
Media weight (tray 1)60 -105 g/m2
Maximum ISO A-series paper sizeA4
Maximum input capacity250 sheets
Weight and Dimensions IconWeight and Dimensions
Dimensions (WxDxH)378 x 375 x 235 mm
