Enhancement device setup procedure > Unpacking enhancement device
[CONFIDENTIAL]

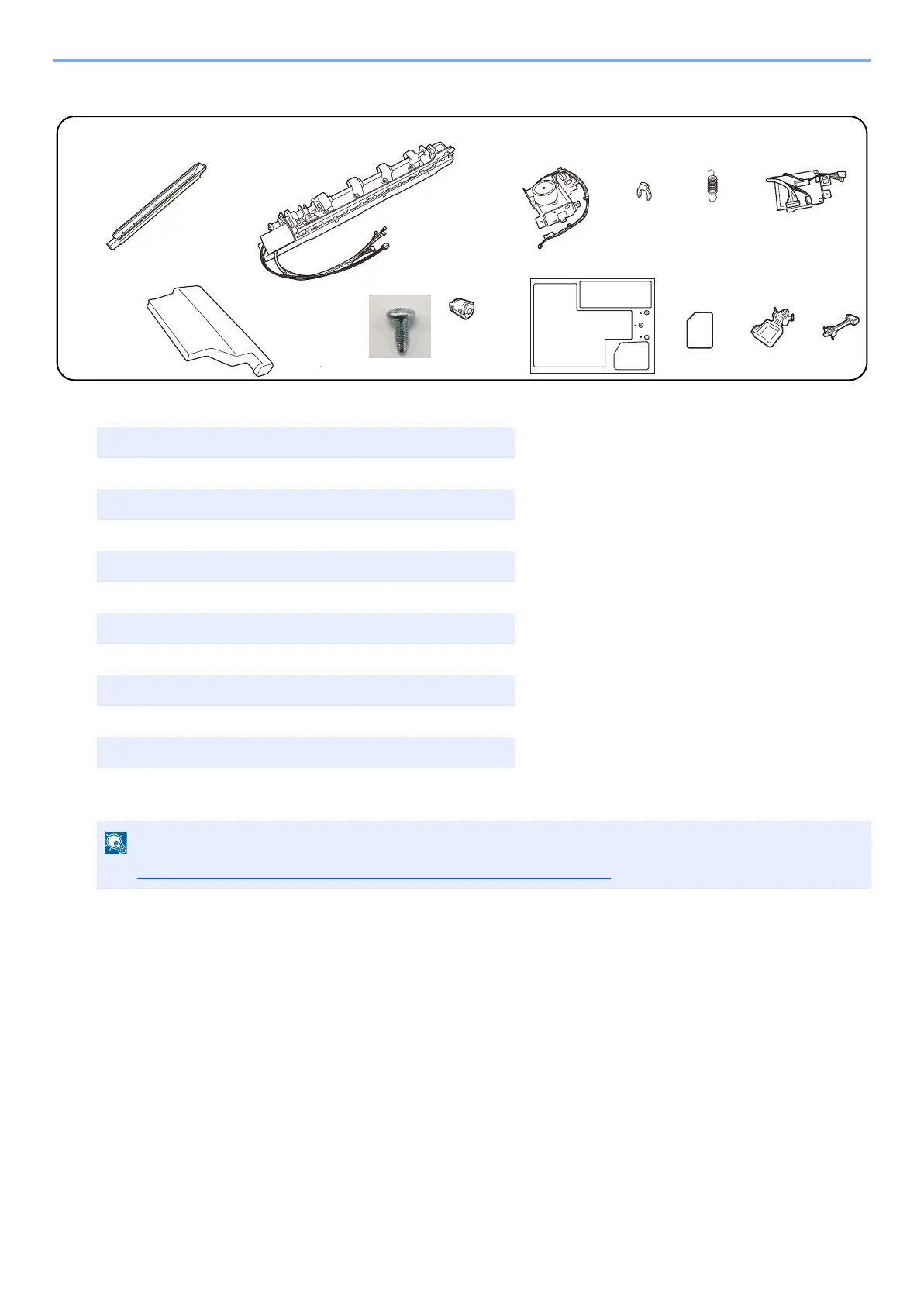

(13) Hole Punch Unit for 4000-sheet Finisher (PH-7A/7C/7D)
1 Punch guide
1 pcs
2 Punch unit
1 pcs
3 Motor unit
1 pcs
4Stop ring
1 pcs
5Spring
1 pcs
6 Punch PWB
1 pcs
7 Punch dust tank.
1 pcs
8 Screw M3x8
3 pcs
9 Ferrite core
1 pcs
10 Label sheet
1 pcs
11 Film
1 pcs
12 Clamp (Small)
1 pcs
13 Clamp (Large)
1 pcs
NOTE
See Output (4-2) Hole Punch Unit for 4000 Sheet Finisher (PH-7A/7C/7D) for setup procedure
3
2
4
78
56
9
10 11 12 13
1

Kyocera PH-7C Specifications

General

Model	PH-7C
Stapling Capacity	50 sheets
Output Capacity	500 sheets
Stack Capacity	500 sheets
Function	Stapling
Sheet Size	A4, Letter
Paper Size	A4, Letter
Paper Weight	60-220 gsm
