Enhancement device setup procedure > Optional device installation
[CONFIDENTIAL]
(4) Output enhancement (Accessories)

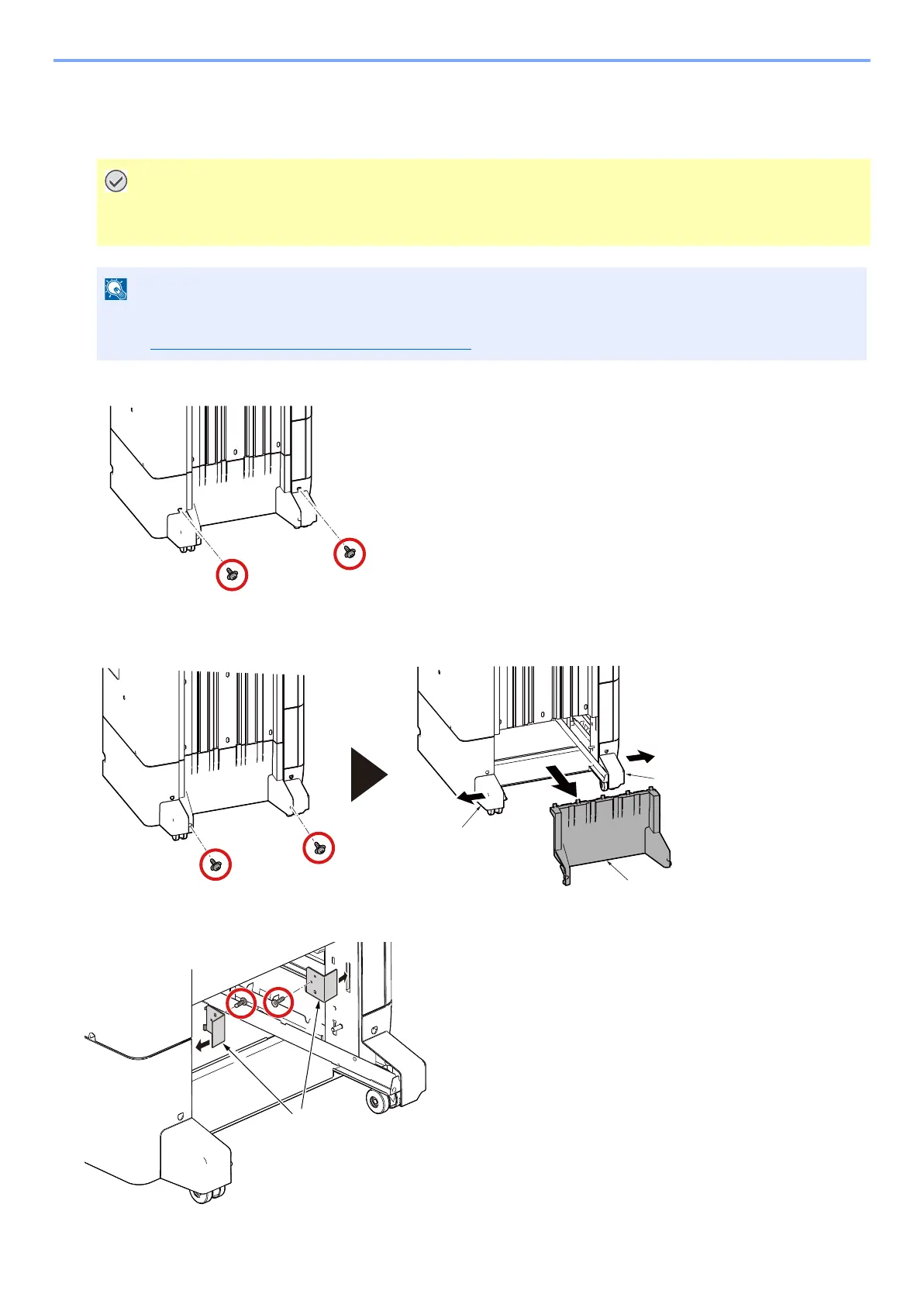

(4-1) Output (4-1) Folding Unit for 4000 Sheet Finisher (BF-9110)
1
Remove Screw (Screw x2). The screw will use in step 18.
2
Pull the foot rear cover [A] to outside slightly and take middle lower cover [B] away
(Screw x2). Screws and the cover [B] will not be used in this installation.
3
Attach lock plate [A] to front and rear sides frame (Screw x2: M4x8).
• Main power switch of main unit has to be turned off and power cable has to be unplugged before install
Folding Unit (BF-9110).
• BF-9110 has to be installed first before DF-9100 installation.
• See Folding Unit for 4000 Sheet Finisher (BF-9110)
for unpacking.
[B]
To Next Page
