Installing the optional parts > Card reader
[CONFIDENTIAL]
4 Installing the optional parts
4 - 1 Card reader
Card reader installation requires the following parts.
Accessories in Card reader holder 11
Accessories in Card reader
1

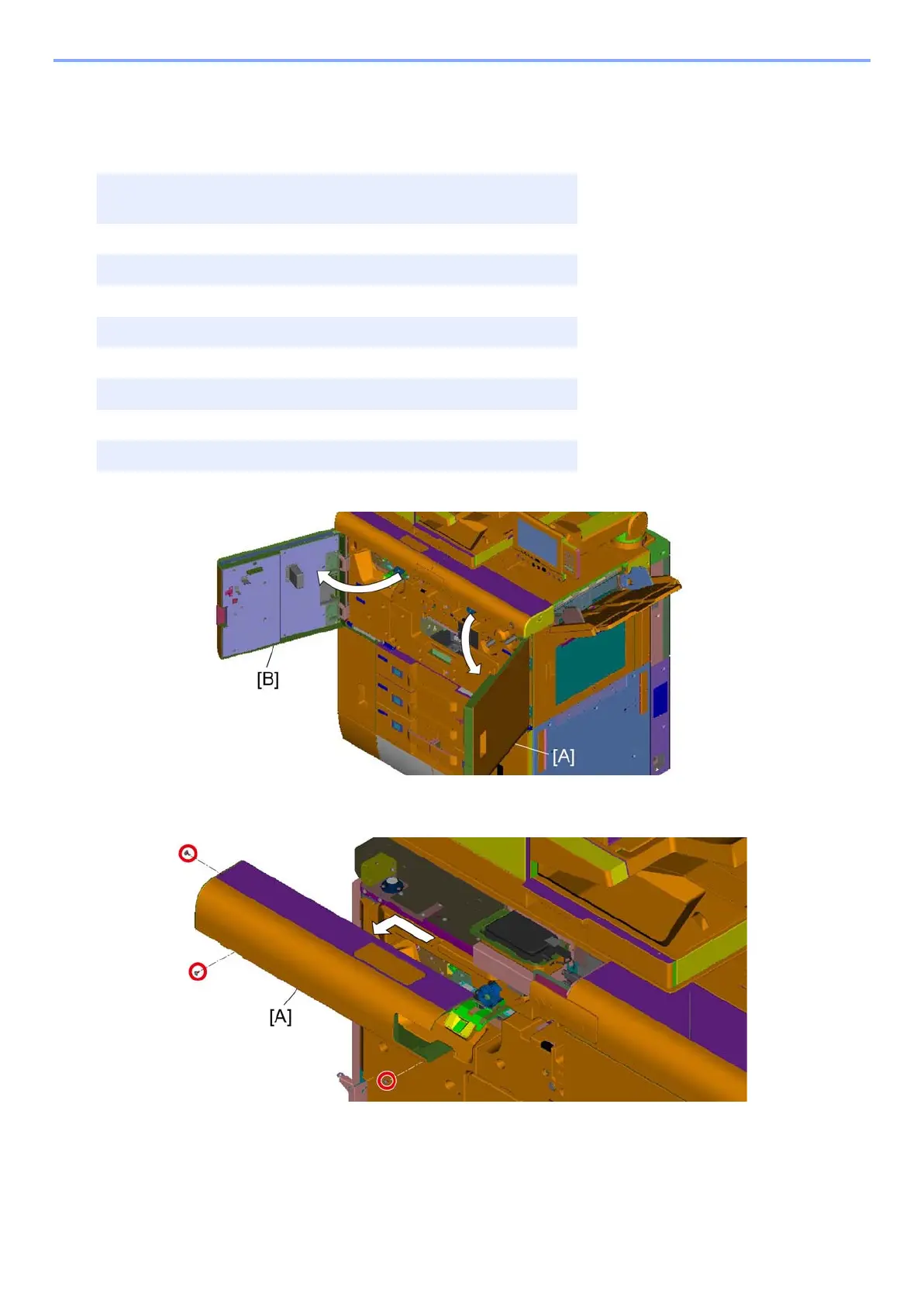

Open the front right upper cover [A] and the front left upper cover [B].
2
Slide the top front left cover [A] to the left and remove it in the direction of the arrow.
(Screw x3)
Card reader holder 11
(1702R6UN1)
1 pc
Card reader holder 1 pc
Card reader cover 1 pc (Not use for this)
Sponge 1 pc
Double sided tape 2 pc
Card reader label 1 pc
Sheet 1 pc
