Kyocera PH-7C User Manual

5-9
Corrective action when service call occur > C2100
[CONFIDENTIAL]

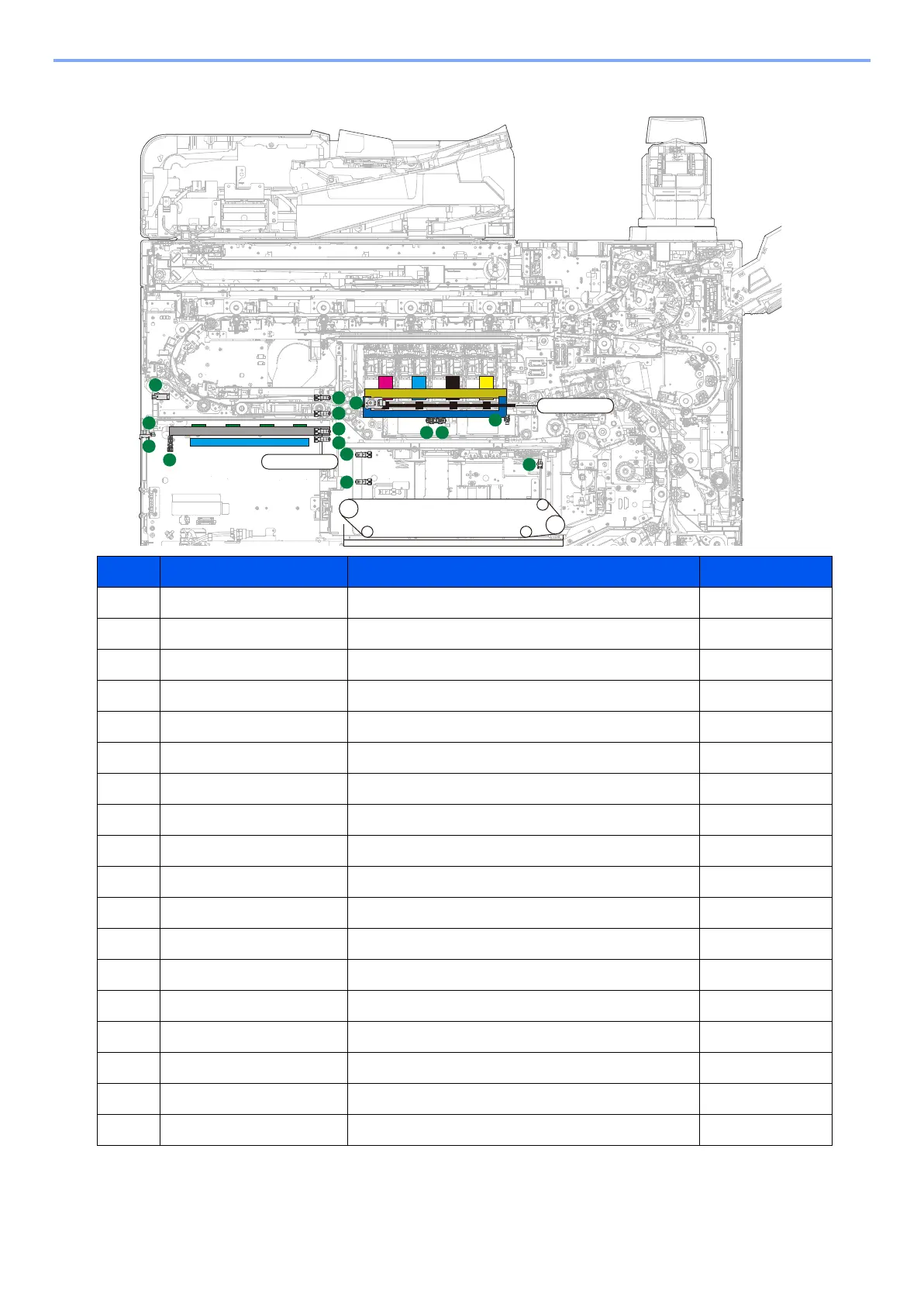

(2) Purge position
No Item Description Status
1 WC HP Treatment carriage HP sensor OFF
2 WC Treatment carriage head lower sensor ON
3 Cap Unit HP Treatment cap HP sensor ON
4 WL HP Treatment lift HP sensor OFF
5 WL Cap Carry Treatment lift cap conveying sensor OFF
6 WL Cap Treatment lift cap position sensor OFF
7 WL Wipe Treatment lift wipe position sensor ON
8 Wipe HP Wiping blade HP sensor OFF
9 Wipe Start Wiping blade start position sensor ON
10 Gap Adj 1 Discharge distance adjust sensor ON
11 Gap Adj 2 Discharge distance adjust sensor OFF
12 Gap Adj 3 Discharge distance adjust sensor OFF
13 Gap Adj 4 Discharge distance adjust sensor OFF
14 FU Upper 1 Image conveying upper limit sensor 1 OFF
15 FU Upper 2 Image conveying upper limit sensor 2 OFF
16 FU Pull Image conveying unit-out position sensor OFF
17 FU Lower Image conveying lower limit sensor ON
18 FU Reverse Image conveying unit lift wire reverse sensor OFF
Wipe unit
Cap unit
3
7
6
5
4
1
8
9
10
13
14
11 12
2
15
