Kyocera PH-7C User Manual

2-7
The main unit setup procedure > Unpacking
[CONFIDENTIAL]

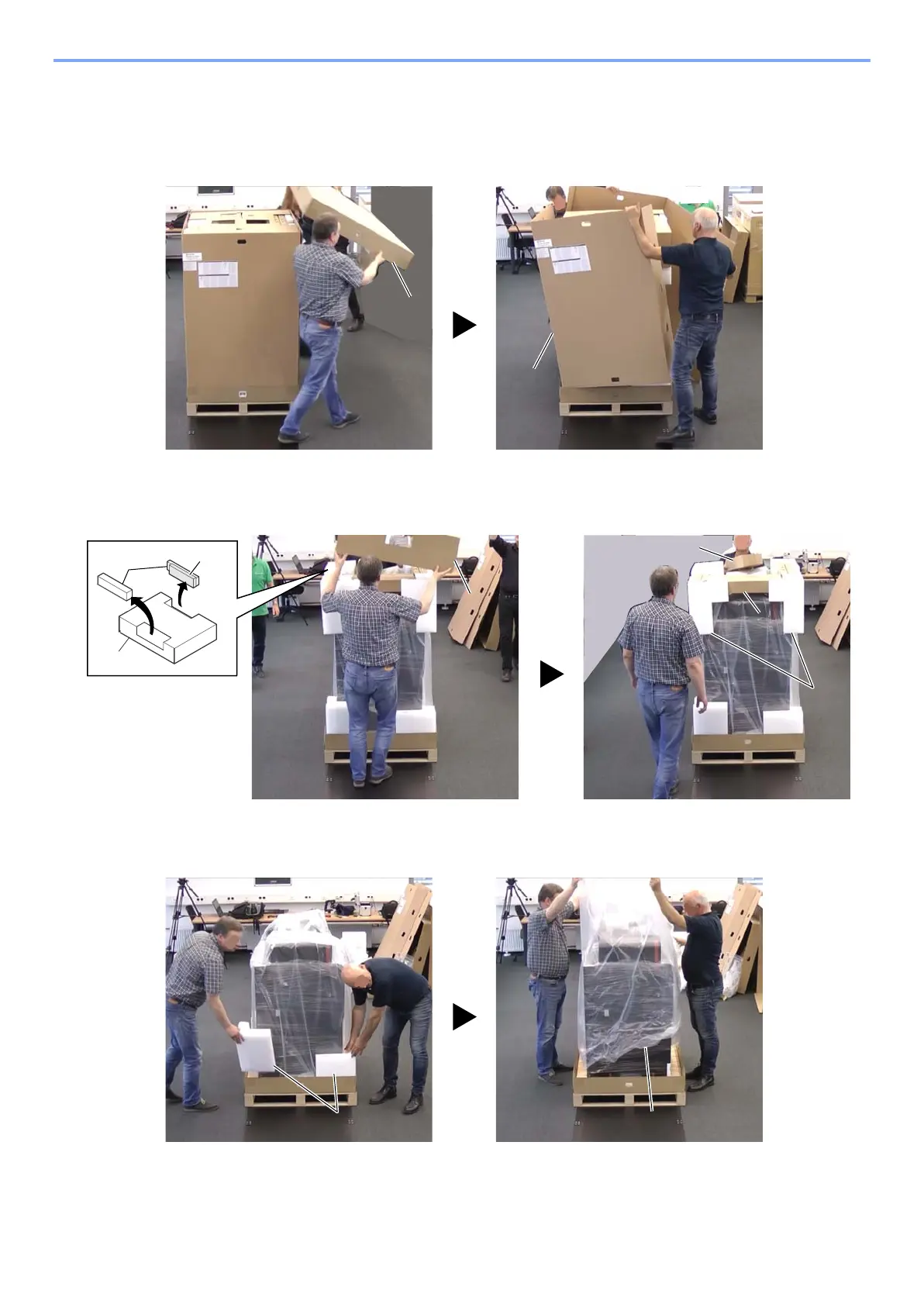

(2) Take out the main unit and the accessories from the packing.
1
Remove 4 hinges and take out the upper case [A].
2
Remove 12 hinges and take out the outer case [B].
3
Take out two empty cases [B] and the cleaning liquid tank [C] first and then take out
the holder case [A].
Take out the right exit tray [D], waste ink tank [F] and then take out the upper pads [E].
4
Remove 4 lower pads [A] and the accessory case.
5
Remove the main unit cover [B].
[A]
[B]
[A]
[A]
[D]
[E]
[F]
[A]
[B]
[C]
[A]
[B]
