COMPONENT MAINTENANCE MANUAL
AVIATION PRODUCTS
Model FA5000
Rev. 02 Page 307
Disassembly
23–70–30
Use or disclosure of information on this sheet is subject to
the restrictions on the cover page of this document.
July 21/17
(Qty. 6)
(1−10)
(1−25)
Some parts are removed
for clarity purposes
NOTE:
Connector
(1−45)
(1−5)
(REF,)
(1−15)

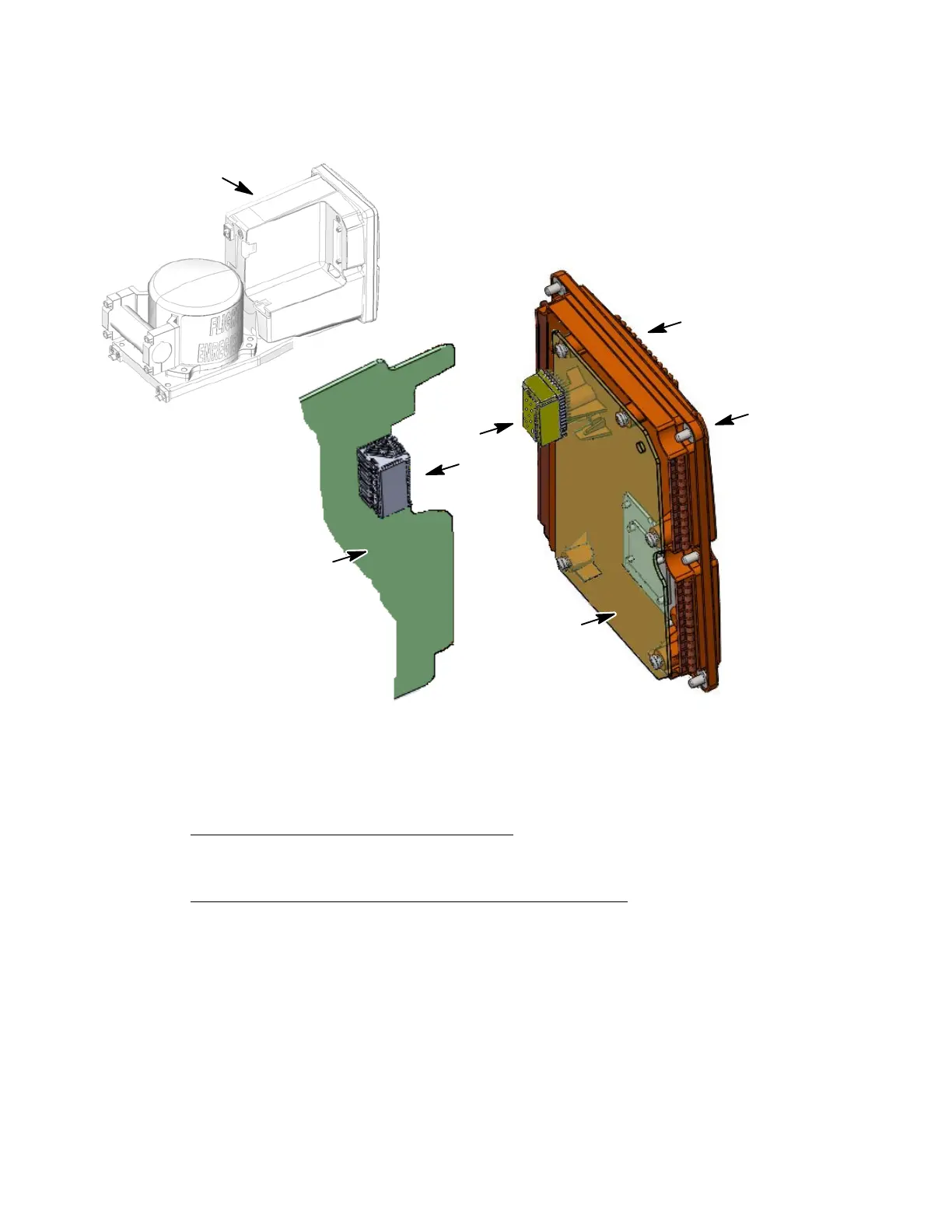

Figure 303.
Rear Cover Removal Diagram
D. Aircraft Interface (AI) PWA Removal
(See Figure 304 or IPL Figure 1, Item 25)
AIRCRAFT INTERFACE PWA REMOVAL PROCEDURE
(1) Remove the rear cover as described in Paragraph C, Rear Cover Removal.
(2) Remove the four screws (1−35) used to secure the Rear Connector J−1 to the
back of the rear cover (1−10).
(3) Remove the six screws (1−30) used to secure the AI PWA (1−25) to the rear
cover (1−10).
(4) Remove the AI PWA (1−25).
