COMPONENT MAINTENANCE MANUAL
AVIATION PRODUCTS
Model FA5000
Rev. 02 Page 13
July 21/17
Description and Operation
23–70−30
Use or disclosure of information on this sheet is subject to
the restrictions on the cover page of this document.
No
No
Ye s
Ye s
Ye s
Label
350?
Valid
Data?
Send Page
Header
Ye s
No
No
Ye s
No
Record
Mode?
Data in
FIFO?
Send Data
Read FIFO
Beginning
of Page?
Send Data
Do
DataLink Heartbeat
Processing

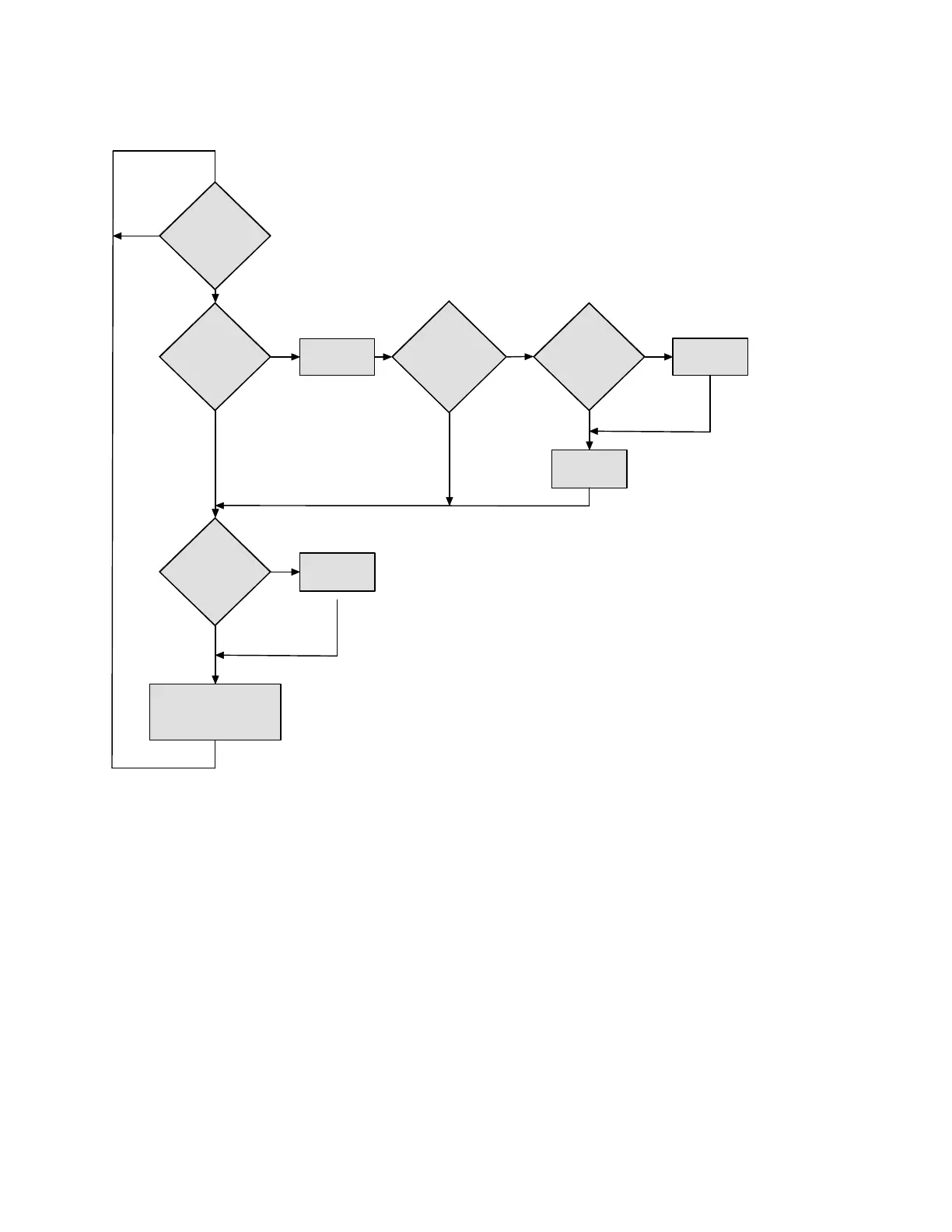

Figure 7. DataLink Task Flowchart
C. OMS Task
The OMS task receives status from the other tasks in the system and creates a status
word suitable for output onto the ARINC 429 bus via Label 350. It does this at a rate of
once per second.
