2: Introduction
SLC™ 8000 Advanced Console Manager User Guide 30

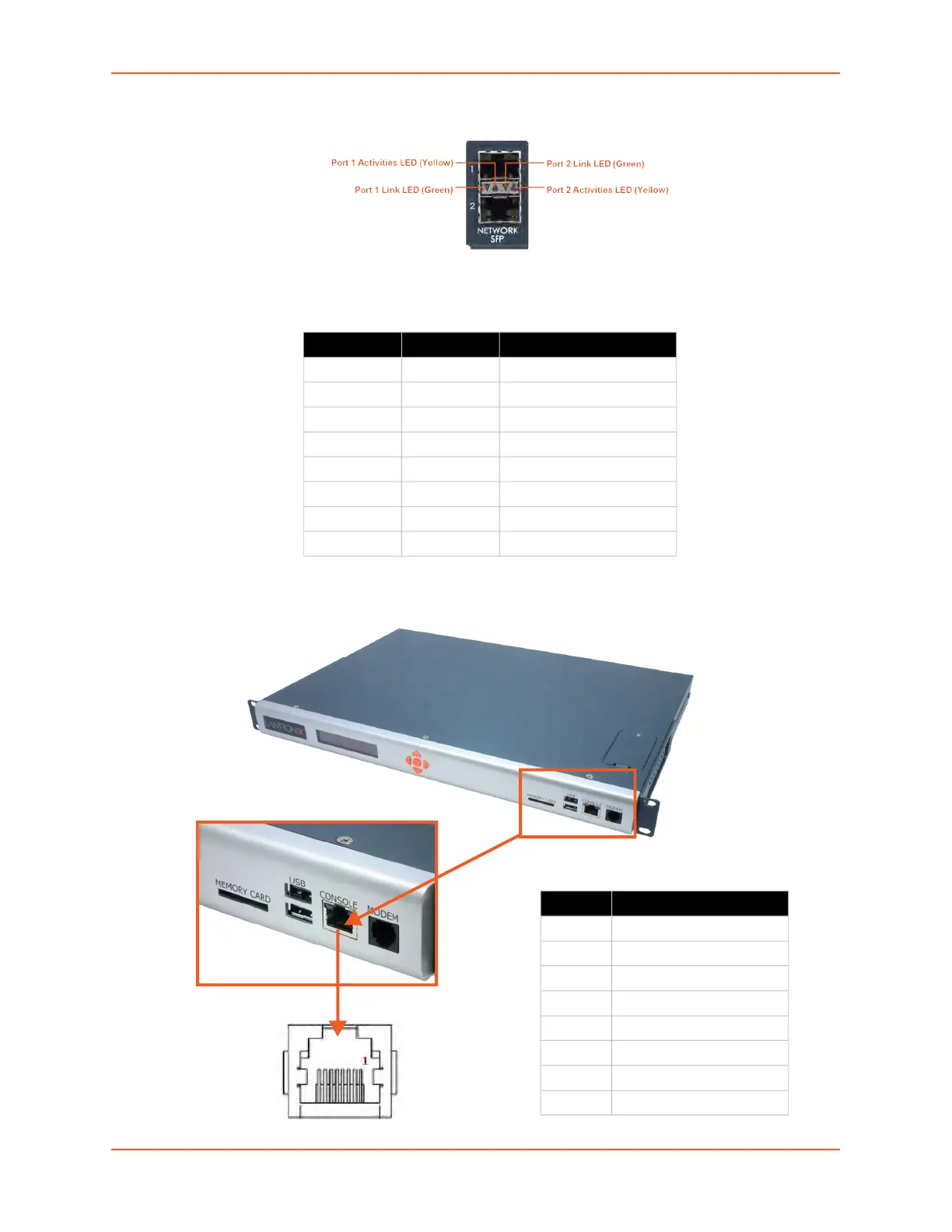

Figure 2-6 SFP Port LEDs
Table 2-7 Device (DCE Reversed & DTE) Port Pinout
Figure 2-8 Console Port (Front Side)
DCE Pin DTE Pin Description
8 1 RTS (output)
7 2 DTR (output)
6 3 TXD (output)
5 4 Ground
4 5 Ground
3 6 RXD (input)
2 7 DSR (input)
1 8 CTS (input)
Table 2-9 Console (DTE) Port Pinout
DTE Pin Description
1 RTS (output)
2 DTR (output)
3 TXD (output)
4 Ground
5 Ground
6 RXD (input)
7 DSR (input)
8 CTS (input)
