Lenze 8200 vector Mounting Instructions

3

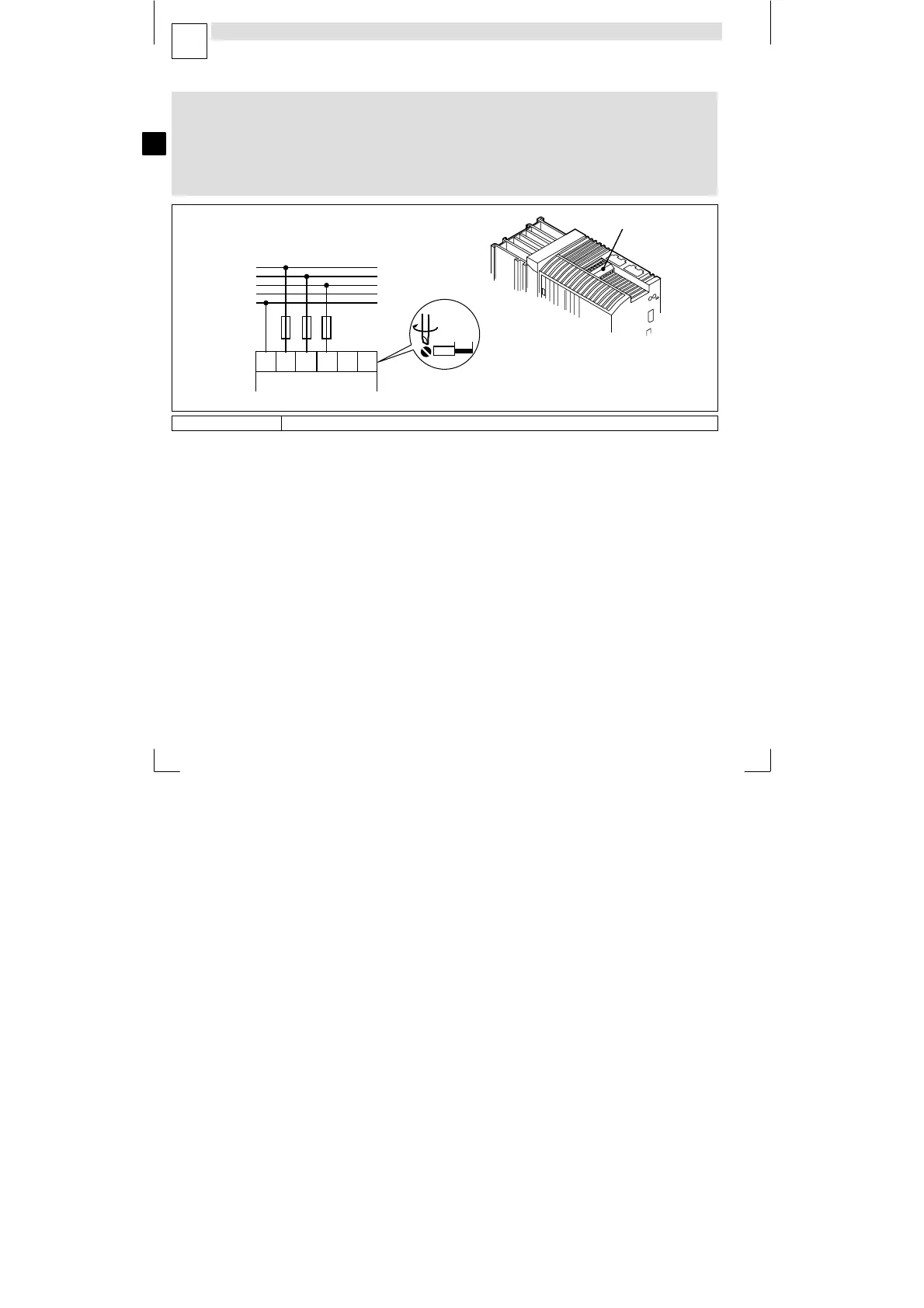

Electrical installation
Mains connection 400 V/500 V
EDK82EV113 DE/EN/FR 8.1
L
102
( Stop!
l Controller type E82EVxxxK 4C must only be connected to a mains voltage
of 3/PE AC 320 ... 550 V. Higher mains voltages will destroy the controller!
l The discharge current to PE is > 3.5 mA. EN 50178 requires a fixed
installation. Double PE connection required.
X1.1
3PEAC400V
45 Hz -0 %...65 Hz +0 % 320 V -0 %...550 V +0 %
X1.1
PE L1
L3
+UG -UG
L2
E82EVXXXK4C
L1
L2
L3
N
PE
0,7...0,8 Nm
6.2...7.1 lb-in
6mm/0.24in
−23− 8200vec067
X1.1/+UG, X1.1/−UG DC supply (DC−bus operation − see Operating Instructions)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Lenze 8200 vector Specifications

General

Category	DC Drives
Series	8200 vector
Enclosure Rating	IP20
Control Method	Vector control
Communication	CANopen, DeviceNet, Profibus
Protection Features	Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Humidity	< 95 % non-condensing
Operating Temperature	0 to +45 °C (derating above 40°C)
