Lenze 8200 vector Mounting Instructions

5
Electrical installation

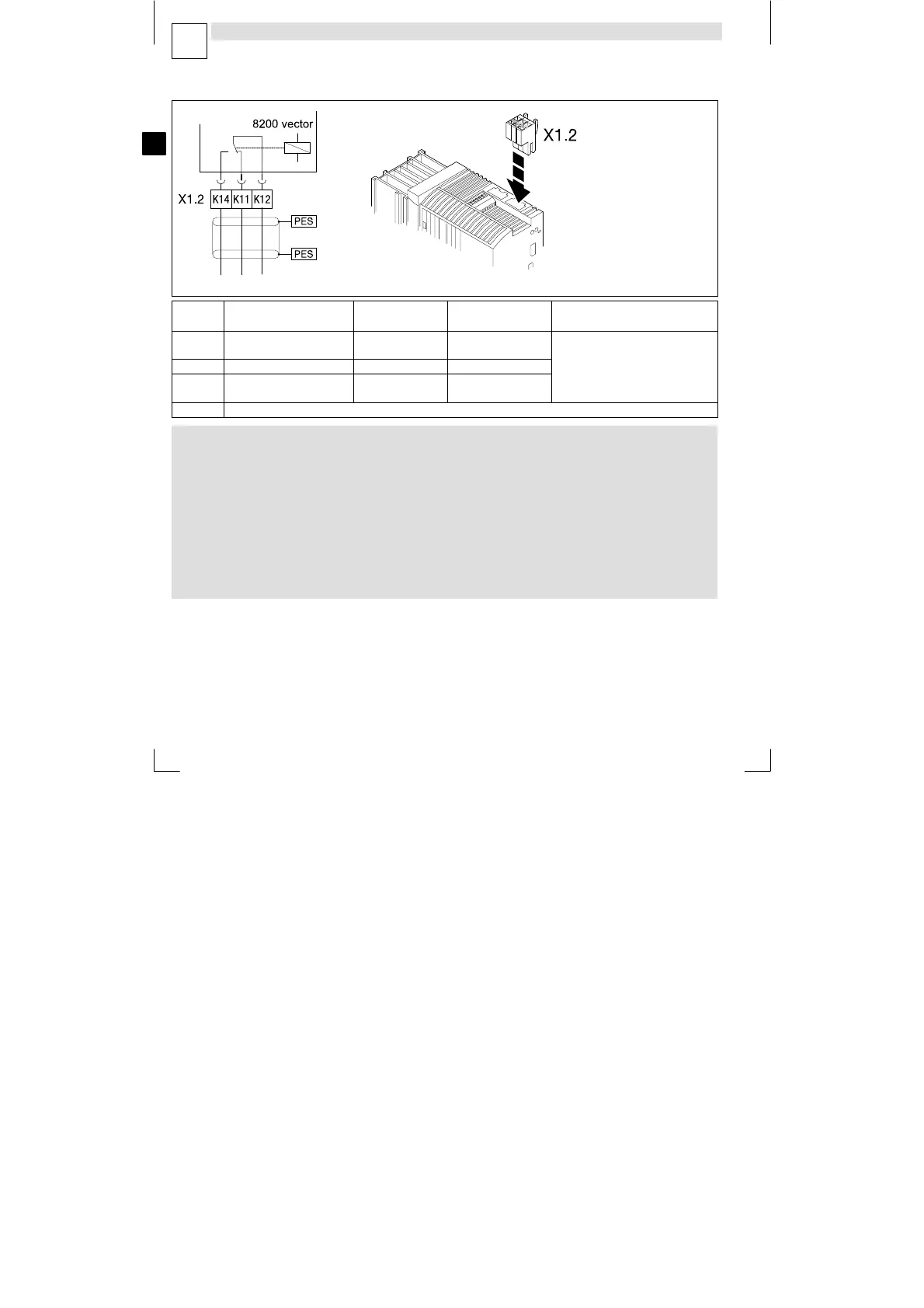

Connection of relay output
EDK82EV113 DE/EN/FR 8.1
L
106
−25−8200vec061
Function
Relay position set
Message
(Lenze setting)
Technical data
X1.2/K11 Relay output normally−closed
contact
open TRIP
AC 250 V/3 A
DC 24 V/2 A ... DC 240 V/0.16 A
X1.2/K12 Mid position contact
X1.2/K14 Relay output − normally−open
contact
closed TRIP
PES HF−shield end by PE connection through shield bracket.
) Note!
l For switching the control signals use shielded cables and establish an HF
shield termination by PE connection.
l For mains potential switching unshielded cables are sufficient.
l With inductive or capacitive loads a corresponding protective circuit is
required in order to protect the relay contacts!
l The service life of the relay depends on the type of load (ohmic, inductive or
capacitive) and the value of the switching capacity.
l The output message can be changed under C0008 or C0415/1.
