Lenze 8200 vector Mounting Instructions

Communication module (Option)

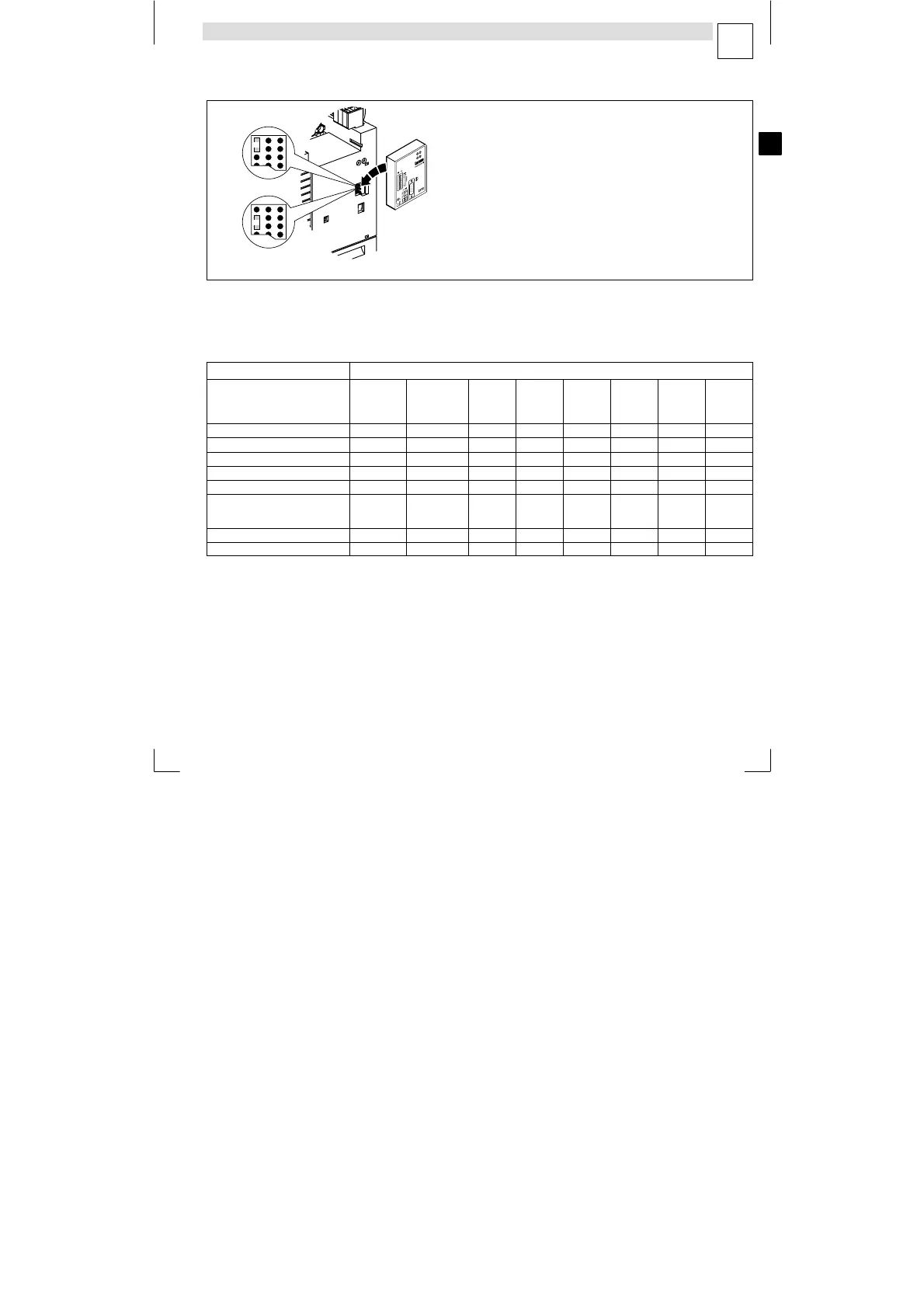

Mounting/dismounting
6
EDK82EV113 DE/EN/FR 8.1
113
L
0
0


−29−8200vec073
 Jumper for selecting the voltage supply
 External voltage supply (delivery state)
 Voltage supply via internal voltage source
Attach/detach the communication module to/from the AIF interface. This is also possible during operation.
Possible combinations Communication module on AIF
Function module in FIF
(Design: Standard or PT)
Keypad
E82ZBC
1)
Keypad XT
EMZ9371BC
1)
LECOM
−A/B 2102.V001
−LI 2102.V003
−A 2102.V004
1)
LECOM−B
(RS485)
2102.V002
INTERBUS
2111/2113
INTERBUS−
Loop 2112
PROFIBUS−
DP
2131/2133
System
bus (CAN)
2171/2172
CANopen /
DeviceNet
2175
LON 2141
Standard I/O E82ZAFSC üü üü üü üü üü üü üü üü
Application I/O E82ZAFAC üü ü ü ü ü ü ü ü
INTERBUS E82ZAFIC üü ( ü) x x x x x x
PROFIBUS−DP E82ZAFPC üü ( ü) x x x x x x
LECOM−B (RS485) E82ZAFLC üü ( ü) x x x x x x
System bus (CAN)
System bus I/O−RS
System bus I/O
E82ZAFCC
E82ZAFCC100
E82ZAFCC200
üü üü üü üü üü üü üü üü
CANopen / DeviceNet
2)
E82ZAFD üü üü x x x x x x
AS−i E82ZAFFC üü üü x x x x x x
1)
Independently of the jumper position always supplied internally.
2)
In preparation
üü
Combination possible, internal or external supply of the communication module
ü
Combination possible, external voltage supply!
( ü)
Combination possible, communication module can only be used for parameter setting.
x
Combination not possible
