Lexmark X364dn Service Manual

Diagnostic aids 3-11
7013-XXX

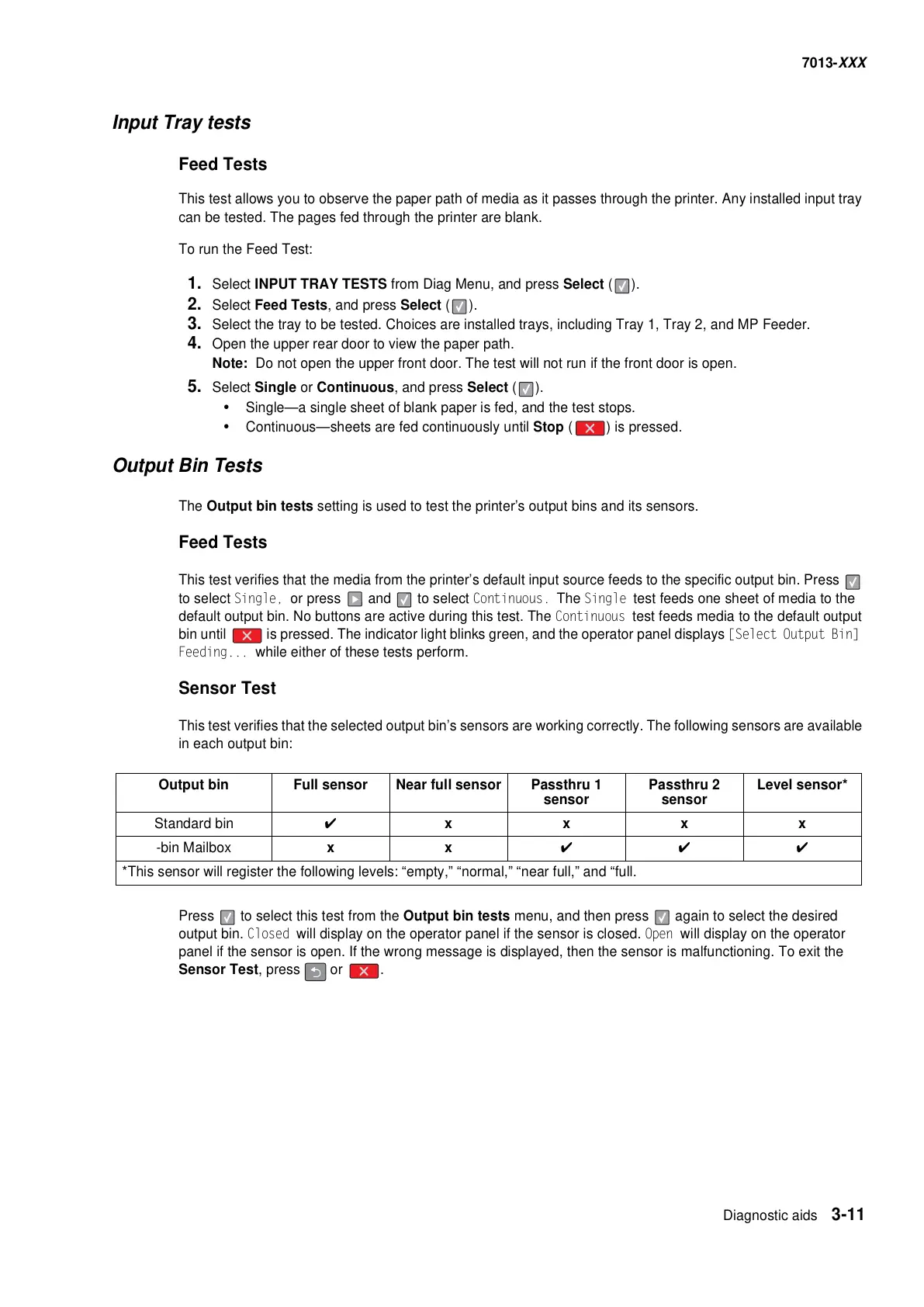

Input Tray tests
Feed Tests
This test allows you to observe the paper path of media as it passes through the printer. Any installed input tray
can be tested. The pages fed through the printer are blank.
To run the Feed Test:
1. Select INPUT TRAY TESTS from Diag Menu, and press Select ( ).
2. Select Feed Tests, and press Select ( ).
3. Select the tray to be tested. Choices are installed trays, including Tray 1, Tray 2, and MP Feeder.
4. Open the upper rear door to view the paper path.
Note: Do not open the upper front door. The test will not run if the front door is open.
5. Select Single or Continuous, and press Select ( ).
• Single—a single sheet of blank paper is fed, and the test stops.
• Continuous—sheets are fed continuously until Stop ( ) is pressed.
Output Bin Tests
The Output bin tests setting is used to test the printer’s output bins and its sensors.
Feed Tests
This test verifies that the media from the printer’s default input source feeds to the specific output bin. Press
to select Single, or press and to select Continuous. The Single test feeds one sheet of media to the
default output bin. No buttons are active during this test. The Continuous test feeds media to the default output
bin until is pressed. The indicator light blinks green, and the operator panel displays [Select Output Bin]
Feeding... while either of these tests perform.
Sensor Test
This test verifies that the selected output bin’s sensors are working correctly. The following sensors are available
in each output bin:
Press to select this test from the Output bin tests menu, and then press again to select the desired
output bin. Closed will display on the operator panel if the sensor is closed. Open will display on the operator
panel if the sensor is open. If the wrong message is displayed, then the sensor is malfunctioning. To exit the
Sensor Test, press or .
Output bin Full sensor Near full sensor Passthru 1
sensor
Passthru 2
sensor
Level sensor*
Standard bin ✔ xxxx
-bin Mailbox xx✔✔✔
*This sensor will register the following levels: “empty,” “normal,” “near full,” and “full.
All manuals and user guides at all-guides.com

Lexmark X364dn Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Scanner type	Flatbed scanner
Duplex scanning	Yes
Copier resize	25 - 400 %
Copy speed (black, normal quality, A4)	32 cpm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Total input capacity	300 sheets
Maximum input capacity	850 sheets
Multi-Purpose tray input capacity	50 sheets
Font styles	3 of 9 scalable PCL 5e, 2 PCL bitmap fonts, 39 scalable PPDS, 5 PPDS bitmap fonts, 84 scalable PCL, OCR-A, OCR-B scalable PCL 5e, 91 scalable PostScript
Dimensions (WxDxH)	428 x 405 x 471 mm
Networking features	10/100BaseTX
All-in-one functions	Copy, Fax, Scan
Standard input trays	2
Compatible operating systems	Apple Mac OS X (10.2 or later) Apple Mac OS 9.x Microsoft Windows 2000 Microsoft Windows XP Microsoft Windows Server 2003 Microsoft Windows XP x64 Microsoft Windows Server 2003 x64 Microsoft Windows Vista Microsoft Windows Vista x64 Microsoft Windows Server 2008 Microsoft Windows Server 2008 x64 Linpus Linux Desktop 9.2, 9.3 Red Hat Enterprise Linux WS 3.0, 4.0, 5.0 SUSE Linux Enterprise Server 8.0, 9.0, 10.0 SUSE Linux Enterprise Desktop 10 openSUSE 10.2, 10.3, 11.0 Linspire Linux 6.0 Debian GNU/Linux 4.0 Red Flag Linux Desktop 5.0, 6.0 Ubuntu 7.10 Ubuntu 8.04 LTS Novell Open Enterprise Server Novell NetWare 5.x, 6.x Sun Solaris SPARC 8, 9, 10 Sun Solaris x86 10 HP-UX 11.11, 11.23, 11.31 IBM AIX 5.2, 5.3, 6.1
Package dimensions (W x D x H)	20 x 18.62 x 22.44 \
Internal memory	128 MB
Processor frequency	266 MHz
Sound power level (standby)	27 dB
Sound pressure level (copying)	54 dB
Sound pressure level (scanning)	51 dB
Display diagonal	2 \
Market positioning	Business
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk, TCP/IP IPv6, TCP, UDP
Standard interfaces	Ethernet
Maximum duty cycle	80000 pages per month
Page description languages	PDF 1.6, PPDS
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Certification	Energy Star, U.S. FDA, FCC Class B, UL 60950-1, IEC 60320-1, ECMA 74:8, CAN/CSA-C22.2 60950-1-03, ICES-003 Class B, VCCI Class B, BSMI Class B, CE Class B, CB IEC 60950-1, IEC 60825-1, IEC 61000-3-2, IEC 61000-3-3, EN 55022 Class B, EN 55024, CISPR 22 Class B, IEC 60320, GS (TÜV), EN 60825-1, ACMA A-tick mark Class B, AS/NZS 60950-1, EK Mark, K60950, KCC MIC Mark, CCC Class B, UL AR, CS, TÜV Rh, PSB-SS 337, CNS 13438, CNS 14336

Weight and Dimensions

Weight	20000 g
