Lexmark X364dn Service Manual

Diagnostics information 2-35
7013-XXX

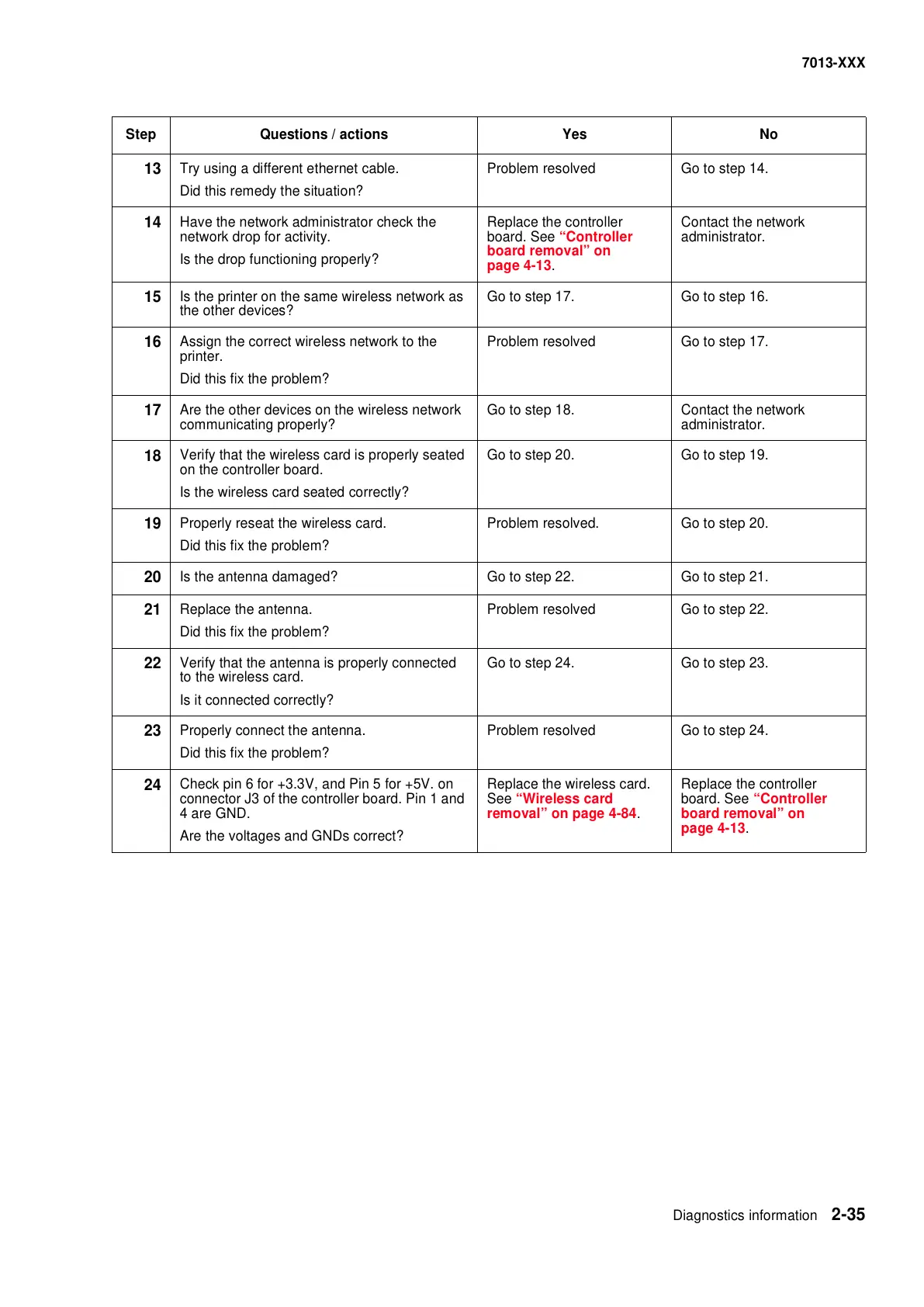

13
Try using a different ethernet cable.
Did this remedy the situation?
Problem resolved Go to step 14.
14
Have the network administrator check the
network drop for activity.
Is the drop functioning properly?
Replace the controller
board. See
“Controller
board removal” on
page 4-13.
Contact the network
administrator.
15
Is the printer on the same wireless network as
the other devices?
Go to step 17. Go to step 16.
16
Assign the correct wireless network to the
printer.
Did this fix the problem?
Problem resolved Go to step 17.
17
Are the other devices on the wireless network
communicating properly?
Go to step 18. Contact the network
administrator.
18
Verify that the wireless card is properly seated
on the controller board.
Is the wireless card seated correctly?
Go to step 20. Go to step 19.
19
Properly reseat the wireless card.
Did this fix the problem?
Problem resolved. Go to step 20.
20
Is the antenna damaged? Go to step 22. Go to step 21.
21
Replace the antenna.
Did this fix the problem?
Problem resolved Go to step 22.
22
Verify that the antenna is properly connected
to the wireless card.
Is it connected correctly?
Go to step 24. Go to step 23.
23
Properly connect the antenna.
Did this fix the problem?
Problem resolved Go to step 24.
24
Check pin 6 for +3.3V, and Pin 5 for +5V. on
connector J3 of the controller board. Pin 1 and
4 are GND.
Are the voltages and GNDs correct?
Replace the wireless card.
See
“Wireless card
removal” on page 4-84.
Replace the controller
board. See
“Controller
board removal” on
page 4-13.
Step Questions / actions Yes No
All manuals and user guides at all-guides.com

Lexmark X364dn Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Scanner type	Flatbed scanner
Duplex scanning	Yes
Copier resize	25 - 400 %
Copy speed (black, normal quality, A4)	32 cpm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Total input capacity	300 sheets
Maximum input capacity	850 sheets
Multi-Purpose tray input capacity	50 sheets
Font styles	3 of 9 scalable PCL 5e, 2 PCL bitmap fonts, 39 scalable PPDS, 5 PPDS bitmap fonts, 84 scalable PCL, OCR-A, OCR-B scalable PCL 5e, 91 scalable PostScript
Dimensions (WxDxH)	428 x 405 x 471 mm
Networking features	10/100BaseTX
All-in-one functions	Copy, Fax, Scan
Standard input trays	2
Compatible operating systems	Apple Mac OS X (10.2 or later) Apple Mac OS 9.x Microsoft Windows 2000 Microsoft Windows XP Microsoft Windows Server 2003 Microsoft Windows XP x64 Microsoft Windows Server 2003 x64 Microsoft Windows Vista Microsoft Windows Vista x64 Microsoft Windows Server 2008 Microsoft Windows Server 2008 x64 Linpus Linux Desktop 9.2, 9.3 Red Hat Enterprise Linux WS 3.0, 4.0, 5.0 SUSE Linux Enterprise Server 8.0, 9.0, 10.0 SUSE Linux Enterprise Desktop 10 openSUSE 10.2, 10.3, 11.0 Linspire Linux 6.0 Debian GNU/Linux 4.0 Red Flag Linux Desktop 5.0, 6.0 Ubuntu 7.10 Ubuntu 8.04 LTS Novell Open Enterprise Server Novell NetWare 5.x, 6.x Sun Solaris SPARC 8, 9, 10 Sun Solaris x86 10 HP-UX 11.11, 11.23, 11.31 IBM AIX 5.2, 5.3, 6.1
Package dimensions (W x D x H)	20 x 18.62 x 22.44 \
Internal memory	128 MB
Processor frequency	266 MHz
Sound power level (standby)	27 dB
Sound pressure level (copying)	54 dB
Sound pressure level (scanning)	51 dB
Display diagonal	2 \
Market positioning	Business
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk, TCP/IP IPv6, TCP, UDP
Standard interfaces	Ethernet
Maximum duty cycle	80000 pages per month
Page description languages	PDF 1.6, PPDS
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Certification	Energy Star, U.S. FDA, FCC Class B, UL 60950-1, IEC 60320-1, ECMA 74:8, CAN/CSA-C22.2 60950-1-03, ICES-003 Class B, VCCI Class B, BSMI Class B, CE Class B, CB IEC 60950-1, IEC 60825-1, IEC 61000-3-2, IEC 61000-3-3, EN 55022 Class B, EN 55024, CISPR 22 Class B, IEC 60320, GS (TÜV), EN 60825-1, ACMA A-tick mark Class B, AS/NZS 60950-1, EK Mark, K60950, KCC MIC Mark, CCC Class B, UL AR, CS, TÜV Rh, PSB-SS 337, CNS 13438, CNS 14336

Weight and Dimensions

Weight	20000 g
