Lexmark X364dn Service Manual

3-4 Service Manual
7013-XXX

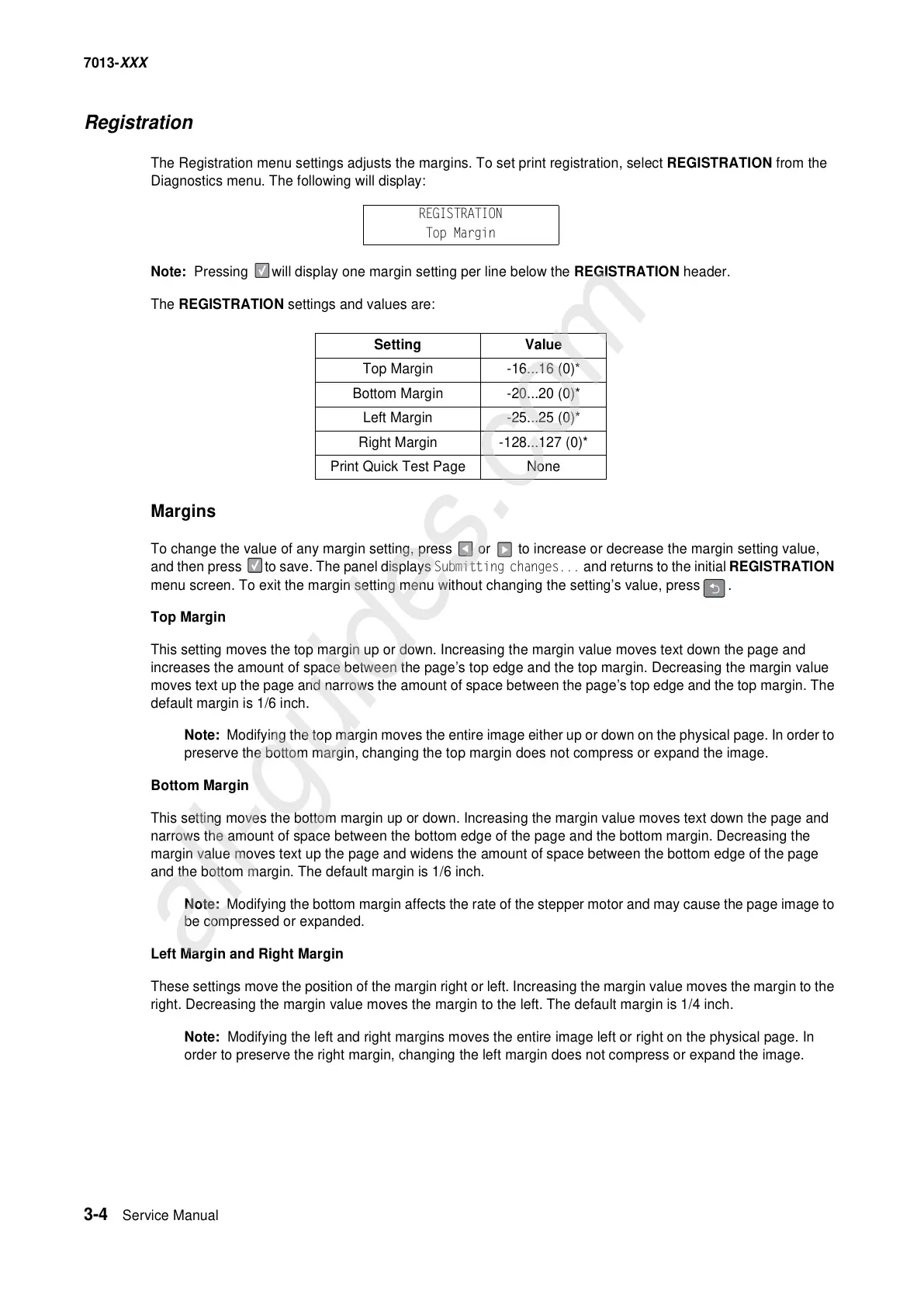

Registration
The Registration menu settings adjusts the margins. To set print registration, select REGISTRATION from the
Diagnostics menu. The following will display:
Note: Pressing will display one margin setting per line below the REGISTRATION header.
The REGISTRATION settings and values are:
Margins
To change the value of any margin setting, press or to increase or decrease the margin setting value,
and then press to save. The panel displays Submitting changes... and returns to the initial REGISTRATION
menu screen. To exit the margin setting menu without changing the setting’s value, press .
Top Margin
This setting moves the top margin up or down. Increasing the margin value moves text down the page and
increases the amount of space between the page’s top edge and the top margin. Decreasing the margin value
moves text up the page and narrows the amount of space between the page’s top edge and the top margin. The
default margin is 1/6 inch.
Note: Modifying the top margin moves the entire image either up or down on the physical page. In order to
preserve the bottom margin, changing the top margin does not compress or expand the image.
Bottom Margin
This setting moves the bottom margin up or down. Increasing the margin value moves text down the page and
narrows the amount of space between the bottom edge of the page and the bottom margin. Decreasing the
margin value moves text up the page and widens the amount of space between the bottom edge of the page
and the bottom margin. The default margin is 1/6 inch.
Note: Modifying the bottom margin affects the rate of the stepper motor and may cause the page image to
be compressed or expanded.
Left Margin and Right Margin
These settings move the position of the margin right or left. Increasing the margin value moves the margin to the
right. Decreasing the margin value moves the margin to the left. The default margin is 1/4 inch.
Note: Modifying the left and right margins moves the entire image left or right on the physical page. In
order to preserve the right margin, changing the left margin does not compress or expand the image.
REGISTRATION
Top Margin
Setting Value
Top Margin -16...16 (0)*
Bottom Margin -20...20 (0)*
Left Margin -25...25 (0)*
Right Margin -128...127 (0)*
Print Quick Test Page None
All manuals and user guides at all-guides.com
all-guides.com

Lexmark X364dn Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Scanner type	Flatbed scanner
Duplex scanning	Yes
Copier resize	25 - 400 %
Copy speed (black, normal quality, A4)	32 cpm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Total input capacity	300 sheets
Maximum input capacity	850 sheets
Multi-Purpose tray input capacity	50 sheets
Font styles	3 of 9 scalable PCL 5e, 2 PCL bitmap fonts, 39 scalable PPDS, 5 PPDS bitmap fonts, 84 scalable PCL, OCR-A, OCR-B scalable PCL 5e, 91 scalable PostScript
Dimensions (WxDxH)	428 x 405 x 471 mm
Networking features	10/100BaseTX
All-in-one functions	Copy, Fax, Scan
Standard input trays	2
Compatible operating systems	Apple Mac OS X (10.2 or later) Apple Mac OS 9.x Microsoft Windows 2000 Microsoft Windows XP Microsoft Windows Server 2003 Microsoft Windows XP x64 Microsoft Windows Server 2003 x64 Microsoft Windows Vista Microsoft Windows Vista x64 Microsoft Windows Server 2008 Microsoft Windows Server 2008 x64 Linpus Linux Desktop 9.2, 9.3 Red Hat Enterprise Linux WS 3.0, 4.0, 5.0 SUSE Linux Enterprise Server 8.0, 9.0, 10.0 SUSE Linux Enterprise Desktop 10 openSUSE 10.2, 10.3, 11.0 Linspire Linux 6.0 Debian GNU/Linux 4.0 Red Flag Linux Desktop 5.0, 6.0 Ubuntu 7.10 Ubuntu 8.04 LTS Novell Open Enterprise Server Novell NetWare 5.x, 6.x Sun Solaris SPARC 8, 9, 10 Sun Solaris x86 10 HP-UX 11.11, 11.23, 11.31 IBM AIX 5.2, 5.3, 6.1
Package dimensions (W x D x H)	20 x 18.62 x 22.44 \
Internal memory	128 MB
Processor frequency	266 MHz
Sound power level (standby)	27 dB
Sound pressure level (copying)	54 dB
Sound pressure level (scanning)	51 dB
Display diagonal	2 \
Market positioning	Business
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk, TCP/IP IPv6, TCP, UDP
Standard interfaces	Ethernet
Maximum duty cycle	80000 pages per month
Page description languages	PDF 1.6, PPDS
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Certification	Energy Star, U.S. FDA, FCC Class B, UL 60950-1, IEC 60320-1, ECMA 74:8, CAN/CSA-C22.2 60950-1-03, ICES-003 Class B, VCCI Class B, BSMI Class B, CE Class B, CB IEC 60950-1, IEC 60825-1, IEC 61000-3-2, IEC 61000-3-3, EN 55022 Class B, EN 55024, CISPR 22 Class B, IEC 60320, GS (TÜV), EN 60825-1, ACMA A-tick mark Class B, AS/NZS 60950-1, EK Mark, K60950, KCC MIC Mark, CCC Class B, UL AR, CS, TÜV Rh, PSB-SS 337, CNS 13438, CNS 14336

Weight and Dimensions

Weight	20000 g
