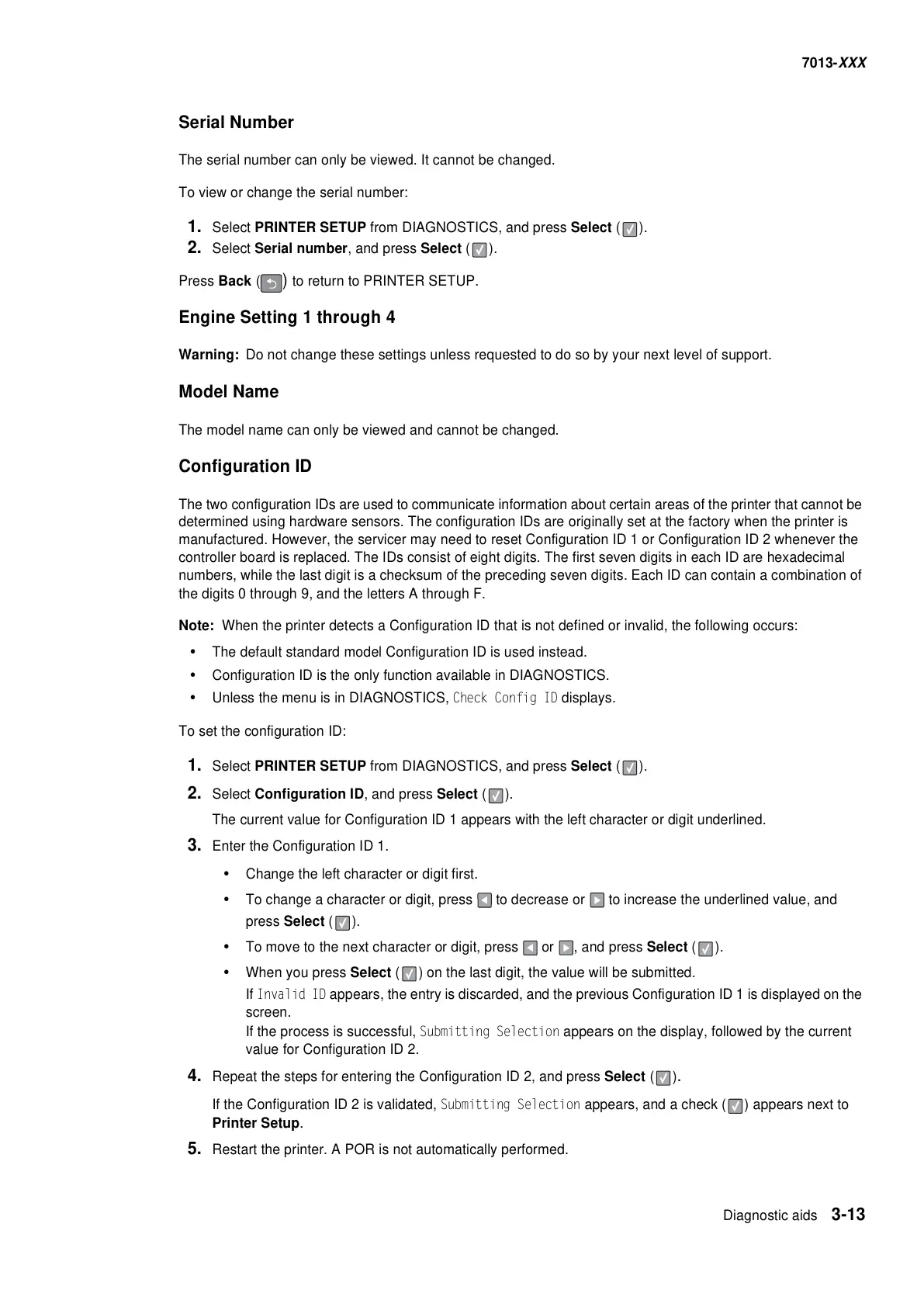

Diagnostic aids 3-13
7013-XXX
Serial Number
The serial number can only be viewed. It cannot be changed.
To view or change the serial number:
1. Select PRINTER SETUP from DIAGNOSTICS, and press Select ( ).
2. Select Serial number, and press Select ( ).
Press Back ( ) to return to PRINTER SETUP.
Engine Setting 1 through 4
Warning: Do not change these settings unless requested to do so by your next level of support.
Model Name
The model name can only be viewed and cannot be changed.
Configuration ID
The two configuration IDs are used to communicate information about certain areas of the printer that cannot be
determined using hardware sensors. The configuration IDs are originally set at the factory when the printer is
manufactured. However, the servicer may need to reset Configuration ID 1 or Configuration ID 2 whenever the
controller board is replaced. The IDs consist of eight digits. The first seven digits in each ID are hexadecimal
numbers, while the last digit is a checksum of the preceding seven digits. Each ID can contain a combination of
the digits 0 through 9, and the letters A through F.
Note: When the printer detects a Configuration ID that is not defined or invalid, the following occurs:
• The default standard model Configuration ID is used instead.
• Configuration ID is the only function available in DIAGNOSTICS.
• Unless the menu is in DIAGNOSTICS, Check Config ID displays.
To set the configuration ID:
1. Select PRINTER SETUP from DIAGNOSTICS, and press Select ( ).
2. Select Configuration ID, and press Select ( ).
The current value for Configuration ID 1 appears with the left character or digit underlined.
3. Enter the Configuration ID 1.
• Change the left character or digit first.
• To change a character or digit, press to decrease or to increase the underlined value, and
press Select ().
• To move to the next character or digit, press or , and press Select ().
• When you press Select ( ) on the last digit, the value will be submitted.
If Invalid ID appears, the entry is discarded, and the previous Configuration ID 1 is displayed on the
screen.
If the process is successful, Submitting Selection appears on the display, followed by the current
value for Configuration ID 2.
4. Repeat the steps for entering the Configuration ID 2, and press Select ( ).
If the Configuration ID 2 is validated, Submitting Selection appears, and a check ( ) appears next to
Printer Setup.
5. Restart the printer. A POR is not automatically performed.
